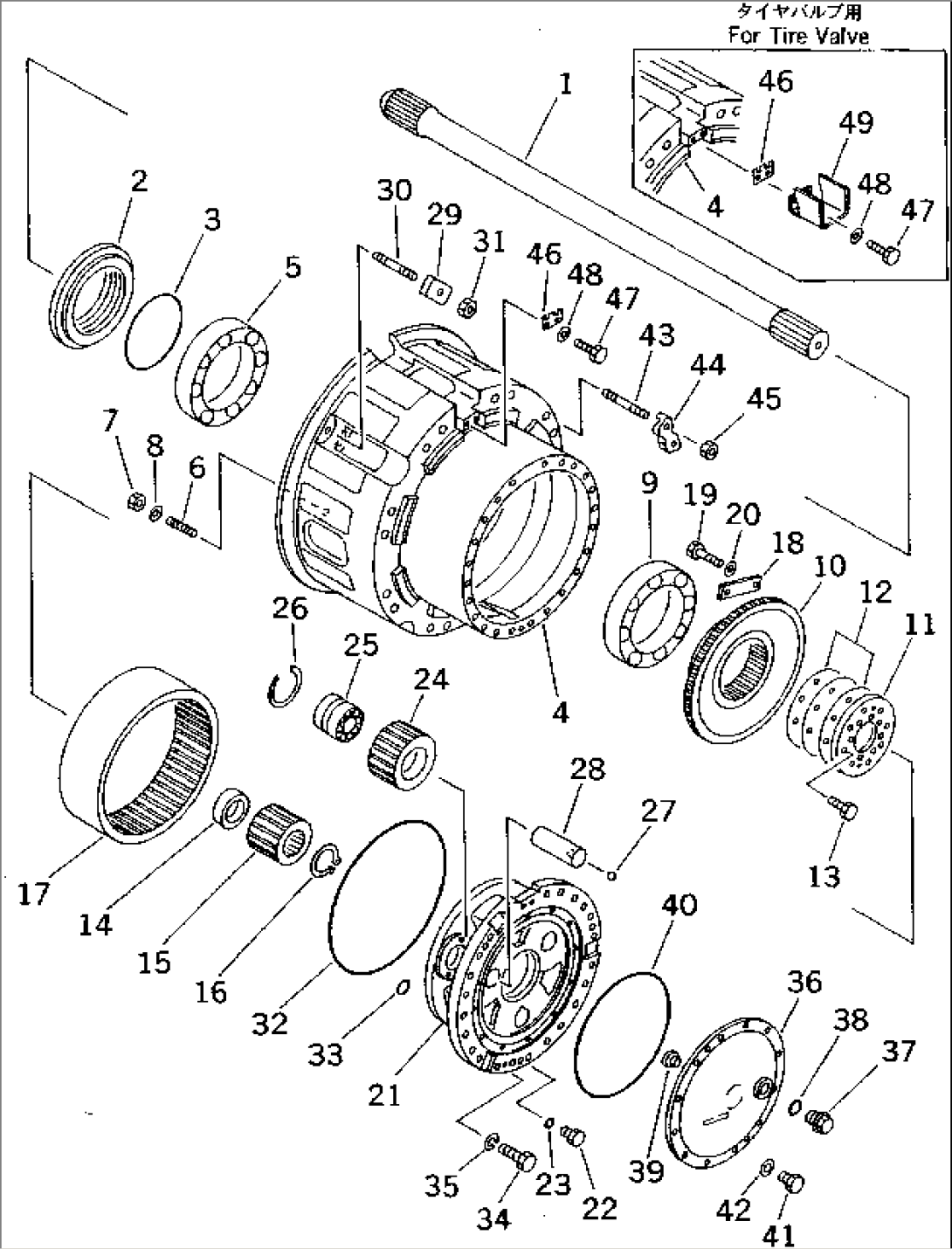

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-22-42411 | SHAFT | 1001- | |
| 2 | 566-22-42140 | RETAINER | 1001- | |
| 3 | 07000-15220 | O-RING | .- | |
| 3 | \0\07000-05220 | O-RING (K8) | 1001-. | |
| 4 | 566-22-72710 | HUB,REAR WHEEL | 1001- | |
| 5 | 566-22-12180 | BEARING,ROLLER, INNER | 1001- | |
| 6 | 01144-81440 | STUD | 1001- | |
| 7 | 01580-01411 | NUT | 1001- | |
| 8 | 01643-31445 | WASHER | 1001- | |
| 9 | 566-22-12190 | BEARING,ROLLER, OUTER | 1001- | |
| 10 | 566-22-12311 | HUB,INNER | 1001- | |
| 11 | 566-22-12212 | RETAINER | 1001- | |
| 12 | 566-22-00112 | SHIM ASS'Y | 2018- | |
| 12 | \0\566-22-00111 | SHIM ASS'Y | 1001-2017 | |
| 12 | \6\ | SHIM, 0.2MM | 1001- | |
| 12 | \6\ | SHIM, 0.3MM | 1001- | |
| 12 | \6\ | SHIM, 1.0MM | 1001- | |
| 12 | \6\ | SHIM, 0.05MM | 2018- | |
| 13 | 01010-31645 | BOLT | 1001- | |
| 14 | 566-22-12441 | SPACER | 1001- | |
| 15 | 566-22-12450 | GEAR,SUN | 1001- | |
| 16 | 04064-08530 | RING,SNAP | 1001- | |
| 17 | 566-22-12543 | GEAR,RING | 1001- | |
| 18 | 566-22-12561 | HOLDER | 1001- | |
| 19 | 01010-60820 | BOLT | .- | |
| 19 | \0\01010-30820 | BOLT | 1001-. | |
| 20 | 01643-50823 | WASHER | 1001- | |
| 21 | 566-22-45610 | CARRIER | 1001- | |
| 22 | 566-22-42490 | PLUG | 1001- | |
| 23 | 07002-11623 | O-RING | .- | |
| 23 | \0\07002-01623 | O-RING (K8) | 1001-. | |
| 24 | 566-22-72531 | GEAR | 1001- | |
| 25 | 426-22-12520 | BEARING,ROLLER | 1001- | |
| 26 | 426-22-12910 | RING,SNAP | 1001- | |
| 27 | 04260-01587 | BALL | 1001- | |
| 28 | 426-22-12510 | SHAFT | 1001- | |
| 29 | 569-22-62830 | CLAMP | 1001- | |
| 30 | 01144-82490 | STUD | 1001- | |
| 31 | 569-22-62870 | NUT | 1001- | |
| 32 | 07000-05465 | O-RING (K8) | 1001- | |
| 33 | 07000-12021 | O-RING | .- | |
| 33 | \0\07000-02021 | O-RING (K8) | 1001-. | |
| 34 | 01010-62055 | BOLT | 1001- | |
| 35 | 01602-22060 | WASHER | .- | |
| 35 | \0\01602-02060 | WASHER,SPRING | 1001-. | |
| 36 | 566-22-72620 | COVER | 1001- | |
| 37 | 07044-13620 | PLUG,OIL LEVEL | 1001- | |
| 38 | 07002-13634 | O-RING | .- | |
| 38 | \0\07002-03634 | O-RING (K8) | 1001-. | |
| 39 | 286-22-12630 | BUTTON | 1001- | |
| 40 | 07000-05355 | O-RING (K8) | 1001- | |
| 41 | 01010-81230 | BOLT | .- | |
| 41 | \0\01010-51230 | BOLT | 1001-. | |
| 42 | 01643-51232 | WASHER | 1001- | |
| 43 | 569-22-62860 | STUD | 1001- | |
| 44 | 569-22-62841 | CLAMP | 1001- | |
| 45 | 569-22-62870 | NUT | 1001- | |
| 46 | 561-22-32620 | PLATE | 1001- | |
| 47 | 01010-81220 | BOLT | .- | |
| 47 | \0\01010-51220 | BOLT | 1001-. | |
| 47 | 01010-81225 | BOLT | .- | |
| 47 | \0\01010-51225 | BOLT,(WITH TIRE VALVE COVER) (OP) | 1001-. | |
| 48 | 01643-31232 | WASHER | 1001- | |
| 49 | 566-88-71920 | COVER,TIRE VALVE (OP) | 1001- |
