| Item | Part No. | Part Name | Qty | Serial No. |

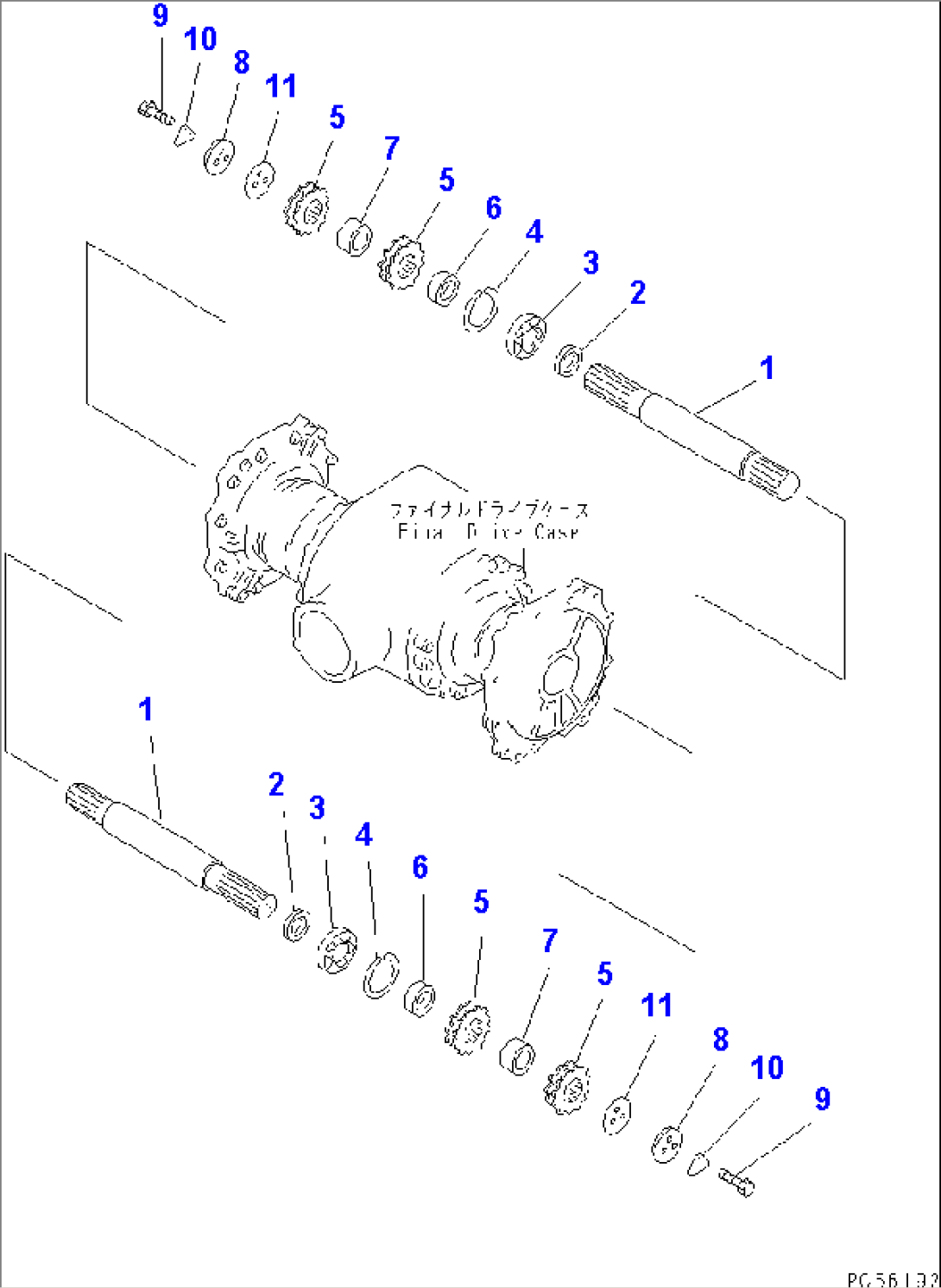

| (23A-22-01211) | FINAL DRIVE ASS'Y | 2001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2601 TO 2607. | ||||
| 1 | 23B-22-11340 | SHAFT | 2001- | |
| 2 | 23A-22-11380 | SPACER | 2001- | |
| 3 | 23B-22-12160 | BEARING | 2001- | |
| 4 | 04065-01254 | RING,SNAP | 2001- | |
| 5 | 23A-22-11420 | SPROCKET | 2001- | |
| 6 | 23A-22-11410 | SPACER | 2001- | |
| 7 | 23A-22-11590 | SPACER | 2001- | |
| 8 | 23A-22-11430 | HOLDER | 2001- | |
| 9 | 01010-51245 | BOLT | 2001- | |
| 10 | 238-22-15110 | LOCK | 2001- | |
| 11 | 23D-22-11650 | SHIM¤ 0.1MM | 2001- |
