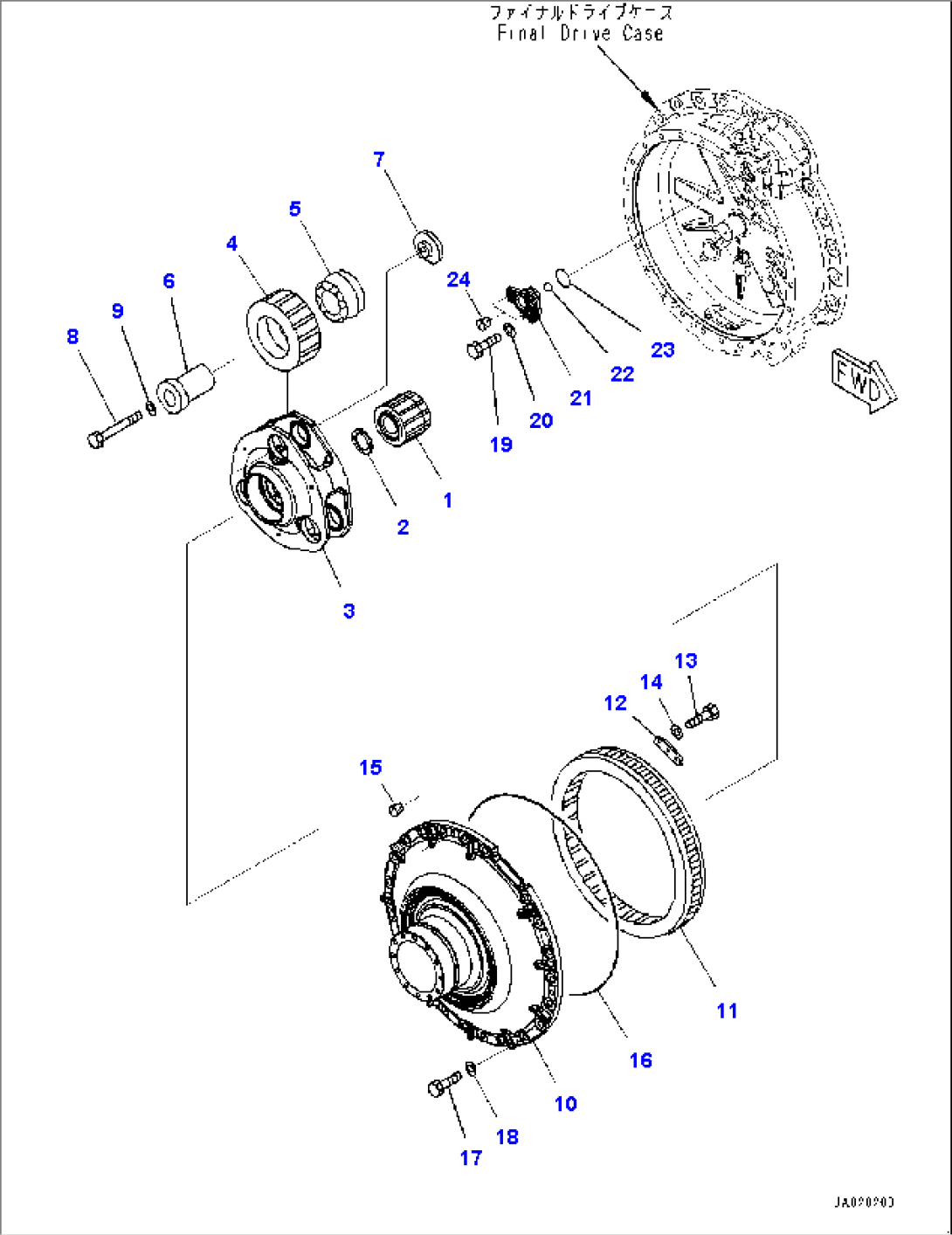

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-27-00640 | Final Drive Assembly | 22001- | ||
| 1 | 154-27-72242 | Gear | 22001- | |
| 2 | 207-27-52270 | Spacer | 22001- | |
| 3 | 154-27-72191 | Carrier | 22001- | |
| 4 | 154-27-72251 | Gear | 22001- | |
| 5 | 154-09-71130 | Bearing | 22001- | |
| 6 | 154-27-72310 | Shaft | 22001- | |
| 7 | 154-27-72320 | Holder | 22001- | |
| 8 | 01011-81620 | Bolt | 22001- | |
| 9 | 01643-31645 | Washer | 22001- | |
| 10 | 154-27-72610 | Cover | 22001- | |
| 11 | 154-27-72260 | Gear | 22001- | |
| 12 | 17M-27-21780 | Plate | 22001- | |
| 13 | 01010-81235 | Bolt | 22001- | |
| 14 | 01643-31232 | Washer | 22001- | |
| 15 | 07049-02025 | Plug | 22001- | |
| 16 | 198-09-31630 | O-ring | 22001- | |
| 17 | 01010-82055 | Bolt | 22001- | |
| 18 | 01643-32060 | Washer | 22001- | |
| 19 | 01010-81235 | Bolt | 22001- | |
| 20 | 01643-31232 | Washer | 22001- | |
| 21 | 154-27-71420 | Cover | 22001- | |
| 22 | 04260-01905 | Ball | 22001- | |
| 23 | 07000-12060 | O-ring | 22001- | |
| 24 | 07049-01215 | Plug | 22001- |
