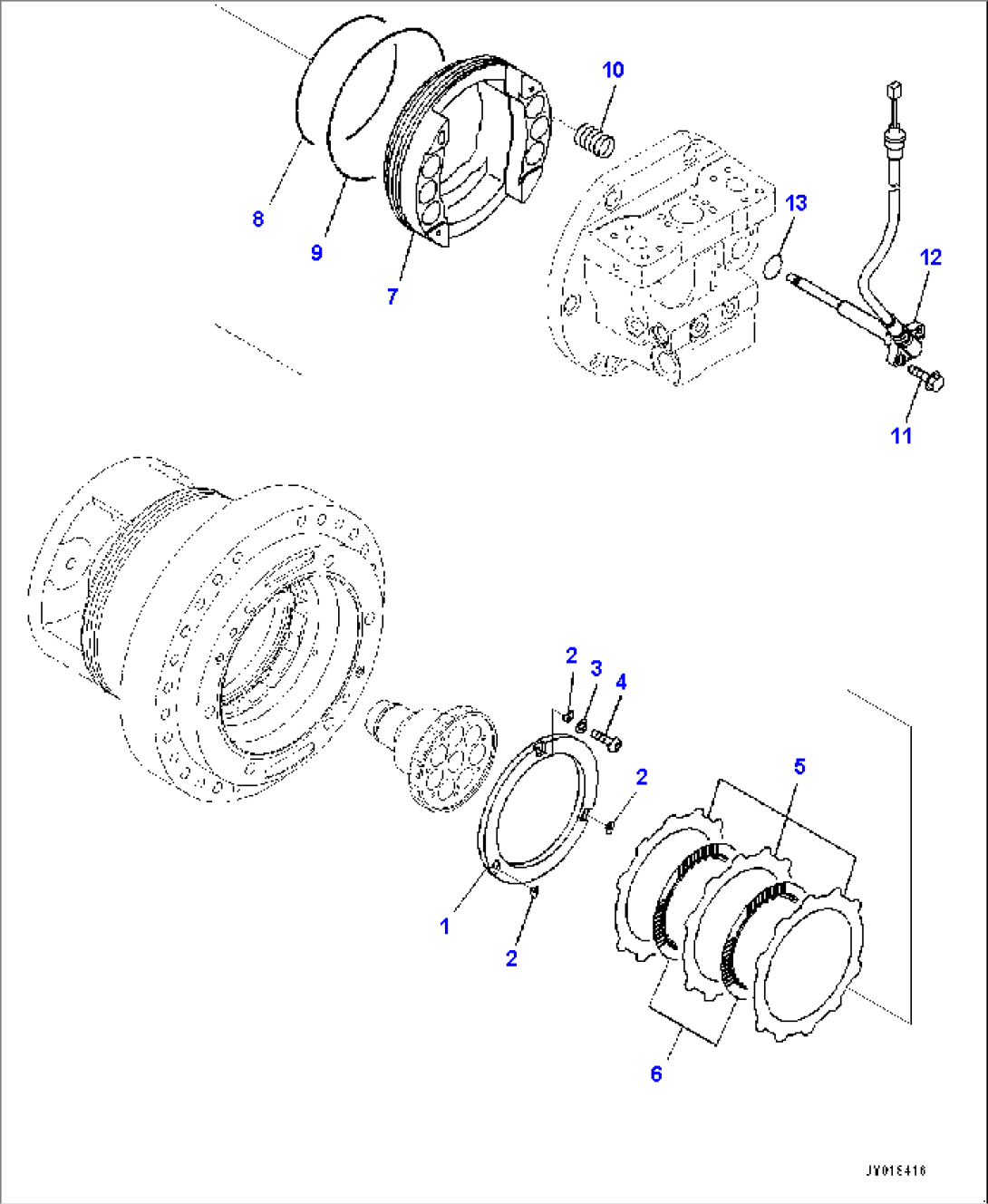

| Item | Part No. | Part Name | Qty | Serial No. |
| 13Y-27-10101 | Final Drive Assembly | 31848- | ||
| 13Y-27-10100 | Final Drive Assembly | 30001-31847 | ||
| 706-8J-01510 | Motor Assembly | 30001- | ||
| 1 | (706-8J-91240) | Plate | 30001- | |
| 2 | (706-8J-91250) | Plate | 30001- | |
| 3 | (706-8J-91280) | Washer | 30001- | |
| 4 | (706-8J-91260) | Screw | 30001- | |
| 5 | (706-8J-91220) | Plate | 30001- | |
| 6 | (706-8J-91230) | Disc | 30001- | |
| 7 | (706-8J-91210) | Piston, Brake | 30001- | |
| 8 | (07000-B6245) | O-ring | 30001- | |
| 9 | (07000-B5280) | O-ring | 30001- | |
| 10 | (706-8J-91270) | Spring | 30001- | |
| 11 | 01435-00825 | Bolt | 30001- | |
| 12 | 729-11-26000 | Sensor Assembly, Revolution | 30001- | |
| 13 | 07000-B2040 | O-ring | 30001- |
