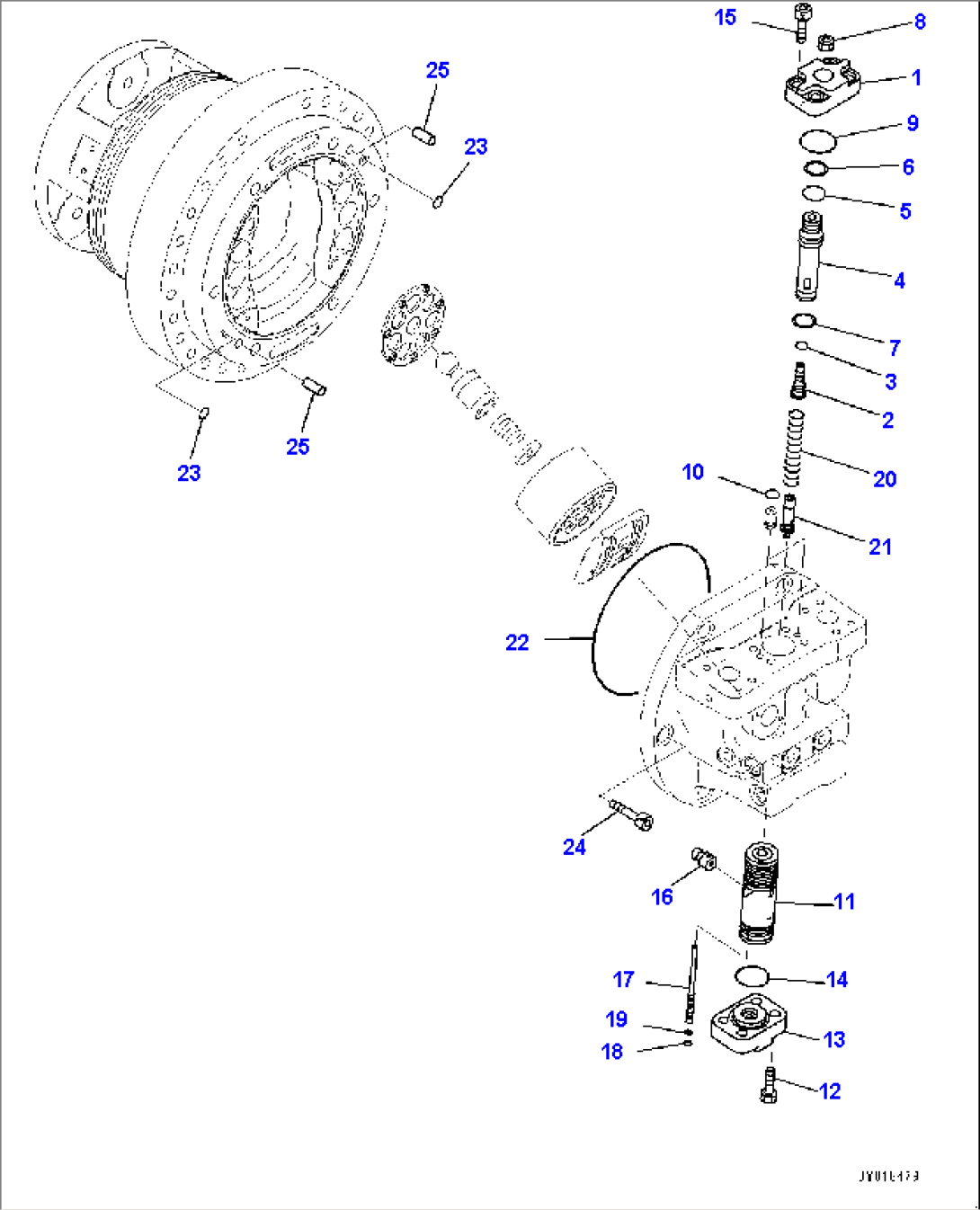

| Item | Part No. | Part Name | Qty | Serial No. |
| 13Y-27-10401 | Final Drive Assembly | 31848- | ||
| 706-8J-01520 | Motor Assembly | 30001- | ||
| 1 | (706-8J-42410) | Case | 30001- | |
| (706-8J-00520) | Cover Assembly | 30001- | ||
| 2 | Cover, End | 30001- | ||
| 3 | Plate, Valve | 30001- | ||
| 4 | Block, Cylinder | 30001- | ||
| 5 | Plug, Stocking | 30001- | ||
| 6 | Spool | 30001- | ||
| 7 | 706-8H-53120 | Spring | 30001- | |
| 8 | 706-8H-53130 | Seat | 30001- | |
| 9 | 706-77-72170 | Plug | 30001- | |
| 10 | 07002-62434 | O-ring | 30001- | |
| 11 | (706-86-71310) | Pin | 30001- | |
| 12 | 708-3D-15110 | Valve | 30001- | |
| 13 | 708-8E-16160 | Plug | 30001- | |
| 14 | 07002-61023 | O-ring | 30001- | |
| 15 | (706-8J-05200) | Valve, Relief | 30001- | |
| 16 | 07002-62434 | O-ring | 30001- | |
| 17 | 706-86-53530 | O-ring | 30001- | |
| 18 | 702-22-91140 | Plug | 31837- | |
| 19 | 07002-61423 | O-ring | 31837- |
