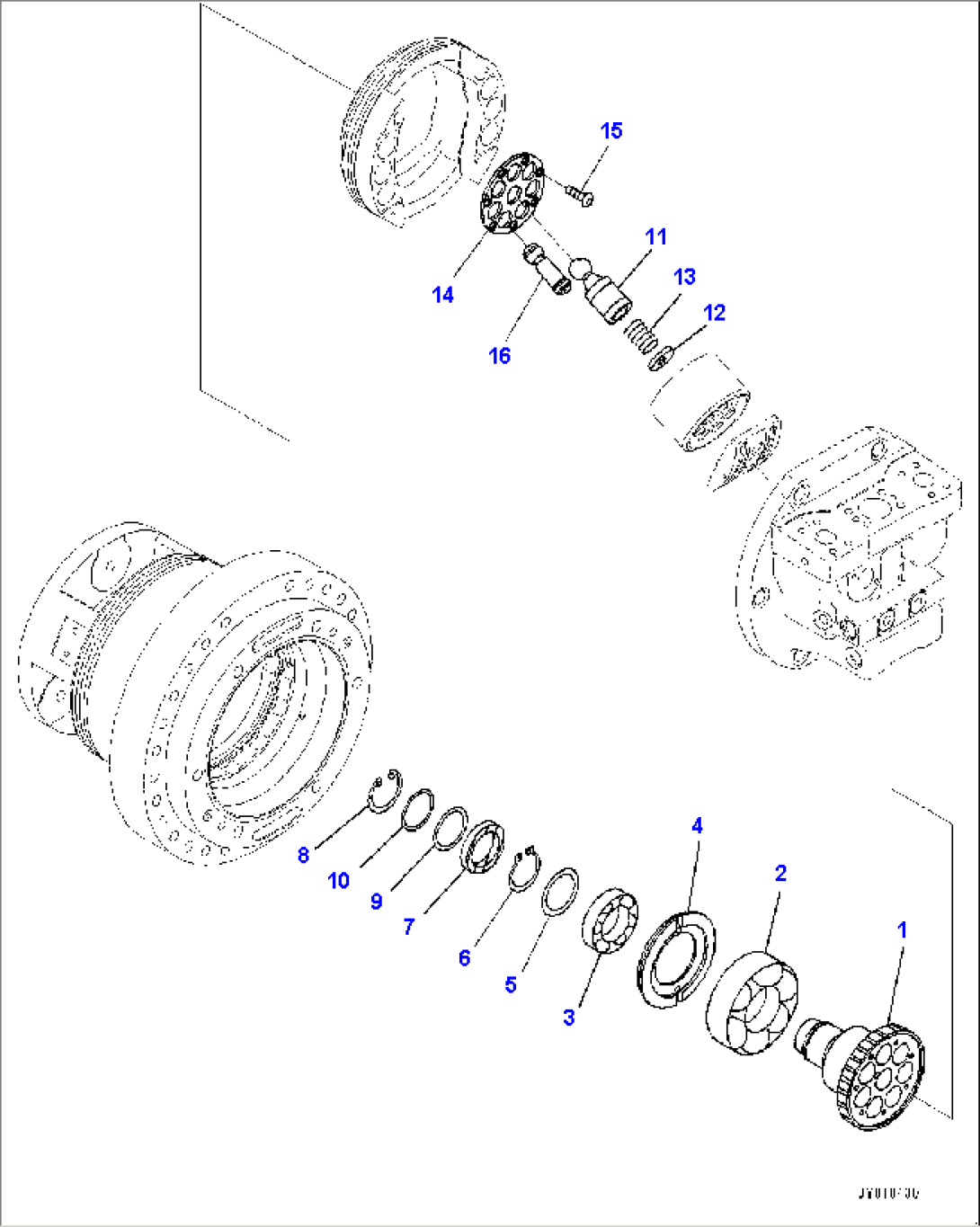

Final Drive, HST Motor, R.H. (3/4) (#30001-)

Final Drive, HST Motor, R.H. (3/4) (#30001-)
ItemPart No.Part NameQtySerial No.
13Y-27-10201Final Drive Assembly31848-
13Y-27-10200Final Drive Assembly30001-31847
706-8J-01520Motor Assembly30001-
1(706-8J-42430)Shaft, Drive30001-
2(706-8J-42450)Bearing30001-
3(706-8J-42460)Bearing30001-
4(706-8J-42440)Retainer30001-
5(706-8J-42470)Spacer Kit30001-
5Spacer, T=2.1mm30001-
5Spacer, T=1.95mm30001-
5Spacer, T=2.00mm30001-
5Spacer, T=2.05mm30001-
5Spacer, T=2.3mm30001-
5Spacer, T=2.15mm30001-
5Spacer, T=2.20mm30001-
5Spacer, T=2.25mm30001-
5Spacer, T=2.5mm30001-
5Spacer, T=2.35mm30001-
5Spacer, T=2.40mm30001-
5Spacer, T=2.45mm30001-
5Spacer, T=2.7mm30001-
5Spacer, T=2.55mm30001-
5Spacer, T=2.60mm30001-
5Spacer, T=2.65mm30001-
5Spacer, T=1.9mm30001-
5Spacer, T=2.75mm30001-
604064-06525Ring, Snap, for Shaft Side30001-
7708-2G-12220Seal, Oil30001-
804065-07825Ring, Snap30001-
9706-8J-42880Spacer30001-
10(706-8J-42720)Spacer Kit30001-
10Spacer, T=2.1mm30001-
10Spacer, T=2.2mm30001-
10Spacer, T=2.3mm30001-
10Spacer, T=2.4mm30001-
10Spacer, T=2.5mm30001-
10Spacer, T=2.6mm30001-
10Spacer, T=2.7mm30001-
10Spacer, T=2.8mm30001-
10Spacer, T=2.9mm30001-
10Spacer, T=2.0mm30001-
10Spacer, T=1.8mm30001-
10Spacer, T=1.9mm30001-
11(706-8J-42150)Shaft30001-
12(706-8J-41580)Ring30001-
13(706-8J-42110)Spring30001-
14(706-8J-42120)Retainer30001-
15(708-23-12350)Screw30001-
16(706-8J-41881)Piston Subassembly30001-
