| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07002-13634 | O-RING | ||
| 2 | 07044-13620 | PLUG | ||
| 3 | 01643-33080 | FLAT WASHER - M30 | ||
| 4 | 01010-83070 | CAPSCREW - M30 | ||
| 5 | 07044-12412 | PLUG | ||
| 6 | 07002-12434 | O-RING | ||
| 7 | 07000-13030 | O-RING | ||
| 7 | (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.) |
- Главная
- Каталог запчастей
- Самосвалы
- Hd1500 5 s/n a30039 up (bepb034005) (afp49 01)
- Final drive, rim & brake group
- Final drive miscellaneous
Поиск по каталогу

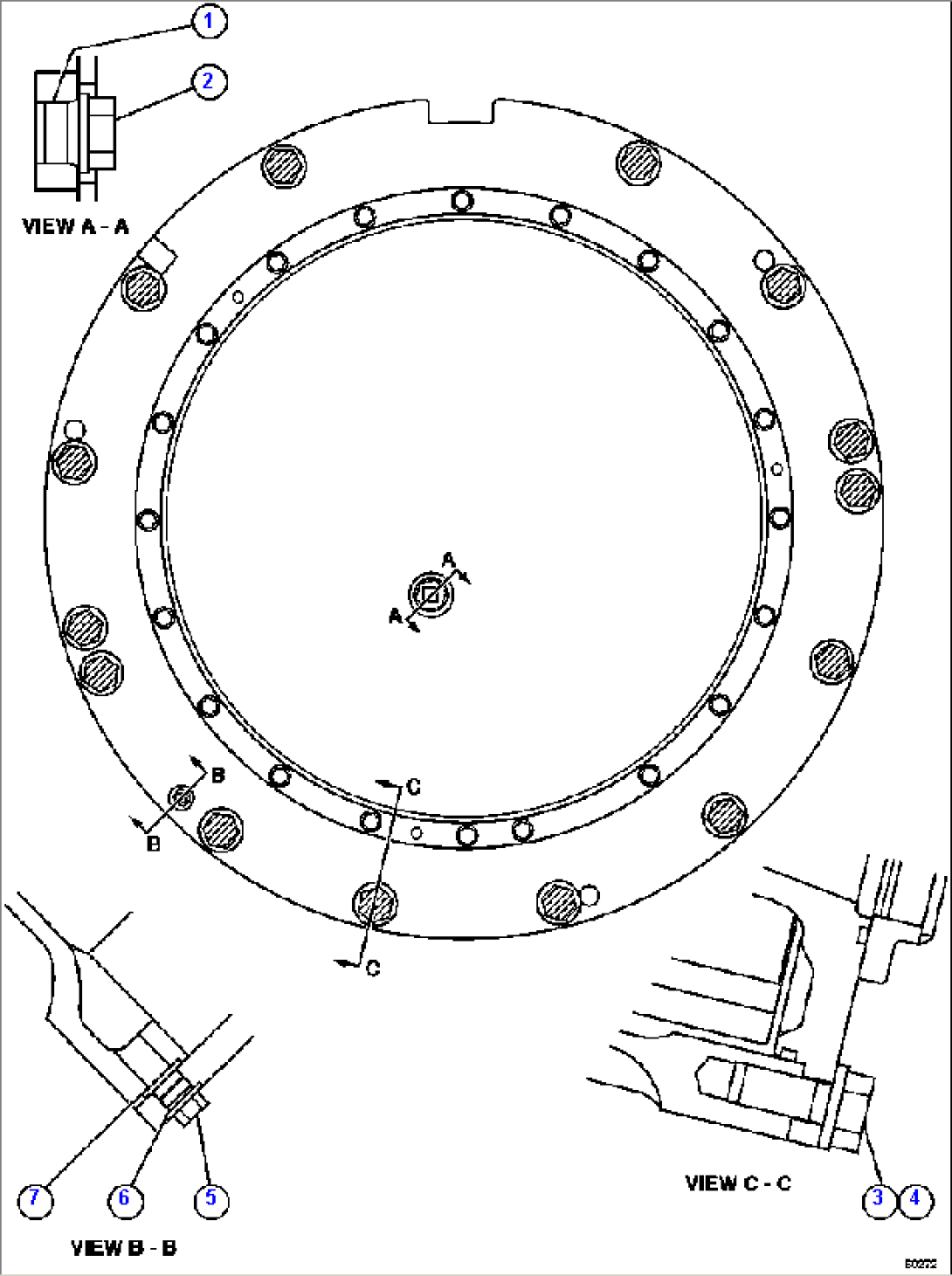

FINAL DRIVE MISCELLANEOUS
