| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-27-00310 | FINAL DRIVE ASS'Y,L.H. | 65579- | ||
| 14Y-27-00015 | FINAL DRIVE ASS'Y,L.H. | 63304-65578 | ||
| 14Y-27-00014 | FINAL DRIVE ASS'Y,L.H. | 62809-63303 | ||
| \0\14Y-27-00013 | FINAL DRIVE ASS'Y,L.H. | 62285-62808 | ||
| \0\14Y-27-00012 | FINAL DRIVE ASS'Y,L.H. | 62143-62284 | ||
| \0\14Y-27-00011 | FINAL DRIVE ASS'Y,L.H. | 60884-62142 | ||
| 14Y-27-00320 | FINAL DRIVE ASS'Y,R.H. | 65579- | ||
| 14Y-27-00025 | FINAL DRIVE ASS'Y,R.H. | 63296-65578 | ||
| 14Y-27-00024 | FINAL DRIVE ASS'Y,R.H. | 62809-63295 | ||
| \0\14Y-27-00023 | FINAL DRIVE ASS'Y,R.H. | 62285-62808 | ||
| \0\14Y-27-00022 | FINAL DRIVE ASS'Y,R.H. | 62143-62284 | ||
| \0\14Y-27-00021 | FINAL DRIVE ASS'Y,R.H. | 60884-62142 | ||

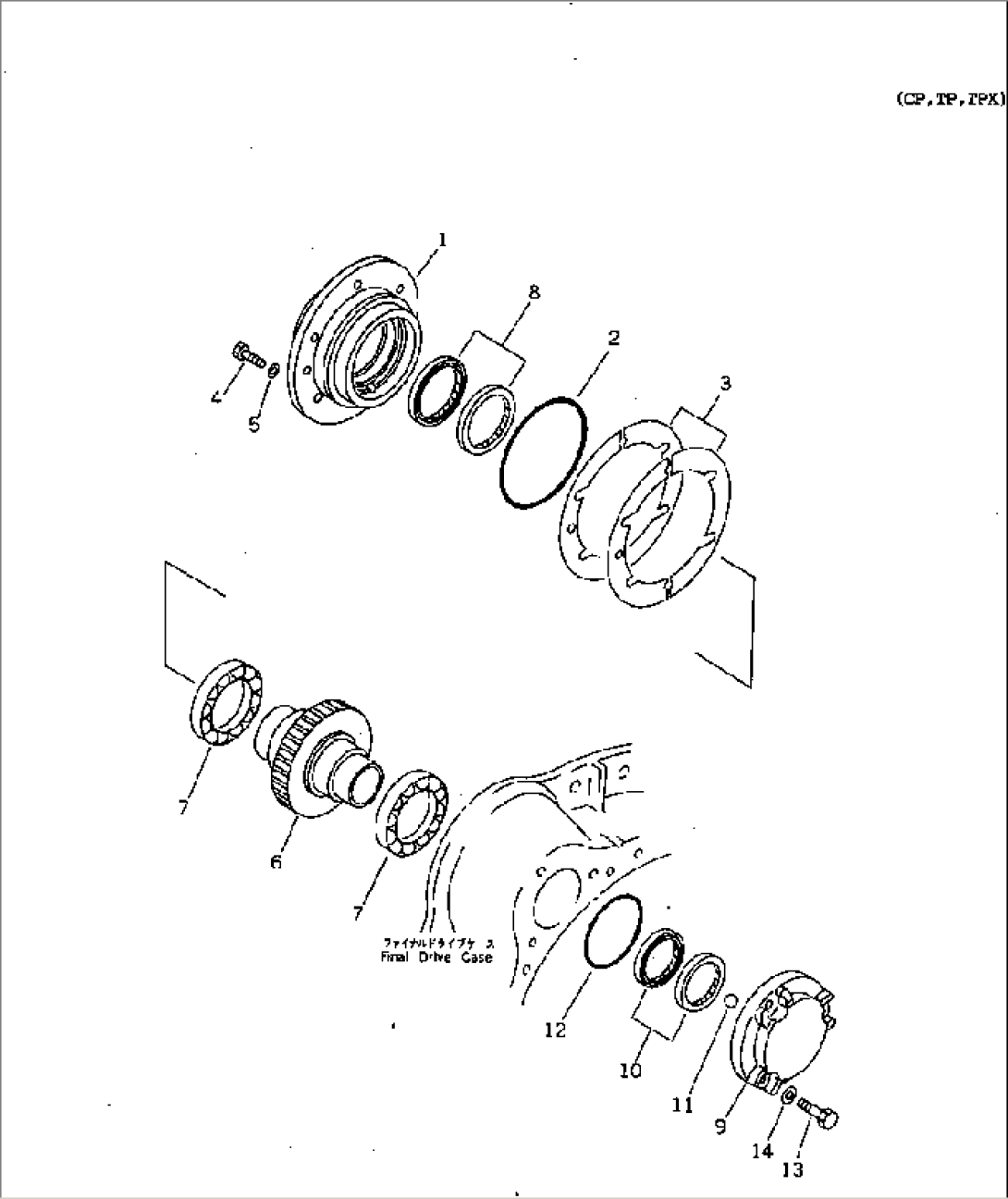

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-02A1 TO F2380-04A1. | ||||
| 1 | 14X-27-11220 | CAGE | 60884- | |
| 2 | 07000-05165 | O-RING | 60884- | |
| 3 | 14X-27-05010 | SHIM KIT | 60884- | |
| \6\ | SHIM¤ 0.2MM | 60884- | ||
| \6\ | SHIM¤ 0.3MM | 60884- | ||
| \6\ | SHIM¤ 1.0MM | 60884- | ||
| 4 | 01010-81235 | BOLT | 60884- | |
| 5 | 01643-31232 | WASHER | 60884- | |
| 6 | 14X-27-31210 | PINION | 65579- | |
| 14X-27-11212 | PINION | 60884-65578 | ||
| 7 | 14X-27-11231 | BEARING | 60884- | |
| 8 | 07013-10080 | SEAL,OIL | 60884- | |
| 9 | 14X-27-11243 | COVER | 60884- | |
| 10 | 209-03-12270 | SEAL,OIL | 60884- | |
| 11 | 04260-01905 | BALL | 60884- | |
| 12 | 07000-02110 | O-RING | 60884- | |
| 13 | 01010-81245 | BOLT | 60884- | |
| 14 | 01643-31232 | WASHER | 60884- |
