| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-27-00310 | FINAL DRIVE ASS'Y,L.H. | 4173- | ||
| 14Y-27-00015 | FINAL DRIVE ASS'Y,L.H. | 3470-4172 | ||
| 14Y-27-00014 | FINAL DRIVE ASS'Y,L.H. | 3377-3469 | ||
| \0\14Y-27-00013 | FINAL DRIVE ASS'Y,L.H. | 3343-3376 | ||
| \0\14Y-27-00012 | FINAL DRIVE ASS'Y,L.H. | 3330-3342 | ||
| \0\14Y-27-00011 | FINAL DRIVE ASS'Y,L.H. | 3034-3329 | ||
| 14Y-27-00320 | FINAL DRIVE ASS'Y,R.H. | 4173- | ||
| 14Y-27-00025 | FINAL DRIVE ASS'Y,R.H. | 3470-4172 | ||
| 14Y-27-00024 | FINAL DRIVE ASS'Y,R.H. | 3377-3469 | ||
| \0\14Y-27-00023 | FINAL DRIVE ASS'Y,R.H. | 3343-3376 | ||
| \0\14Y-27-00022 | FINAL DRIVE ASS'Y,R.H. | 3330-3342 | ||
| \0\14Y-27-00021 | FINAL DRIVE ASS'Y,R.H. | 3034-3329 | ||

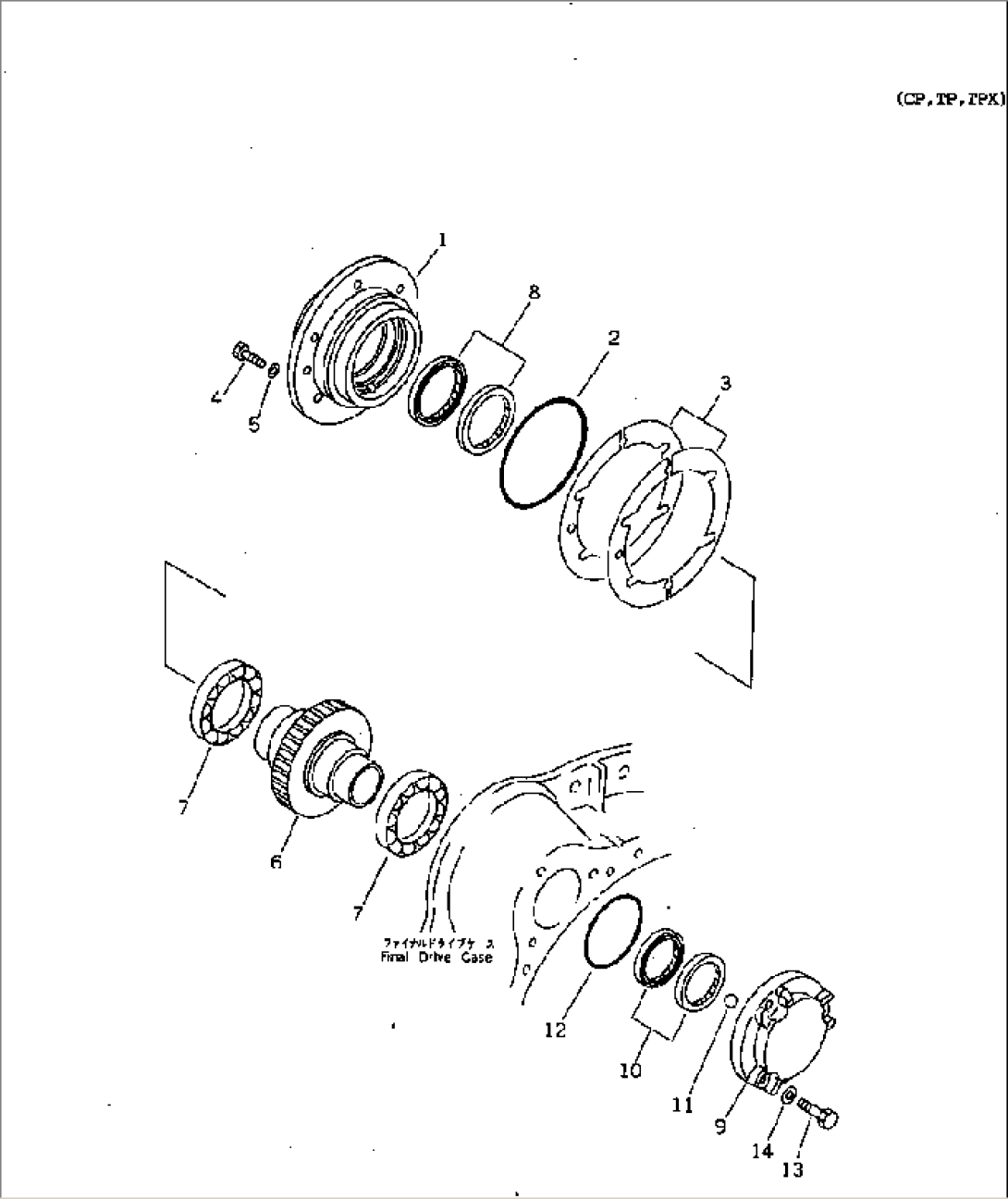

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-02A1 TO F2380-04A1. | ||||
| 1 | 14X-27-11220 | CAGE | 3034- | |
| 2 | 07000-05165 | O-RING | 3034- | |
| 3 | 14X-27-05010 | SHIM KIT | 3034- | |
| 3 | \6\ | SHIM, 0.2MM | 3034- | |
| 3 | \6\ | SHIM, 0.3MM | 3034- | |
| 3 | \6\ | SHIM, 1.0MM | 3034- | |
| 4 | 01010-81235 | BOLT | 3034- | |
| 5 | 01643-31232 | WASHER | 3034- | |
| 6 | 14X-27-31210 | PINION | 4173- | |
| 6 | 14X-27-11212 | PINION | 3034-4172 | |
| 7 | 14X-27-11231 | BEARING | 3034- | |
| 8 | 07013-10080 | SEAL,OIL | 3034- | |
| 9 | 14X-27-11243 | COVER | 3034- | |
| 10 | 209-03-12270 | SEAL,OIL | 3034- | |
| 11 | 04260-01905 | BALL | 3034- | |
| 12 | 07000-02110 | O-RING | 3034- | |
| 13 | 01010-81245 | BOLT | 3034- | |
| 14 | 01643-31232 | WASHER | 3034- |
