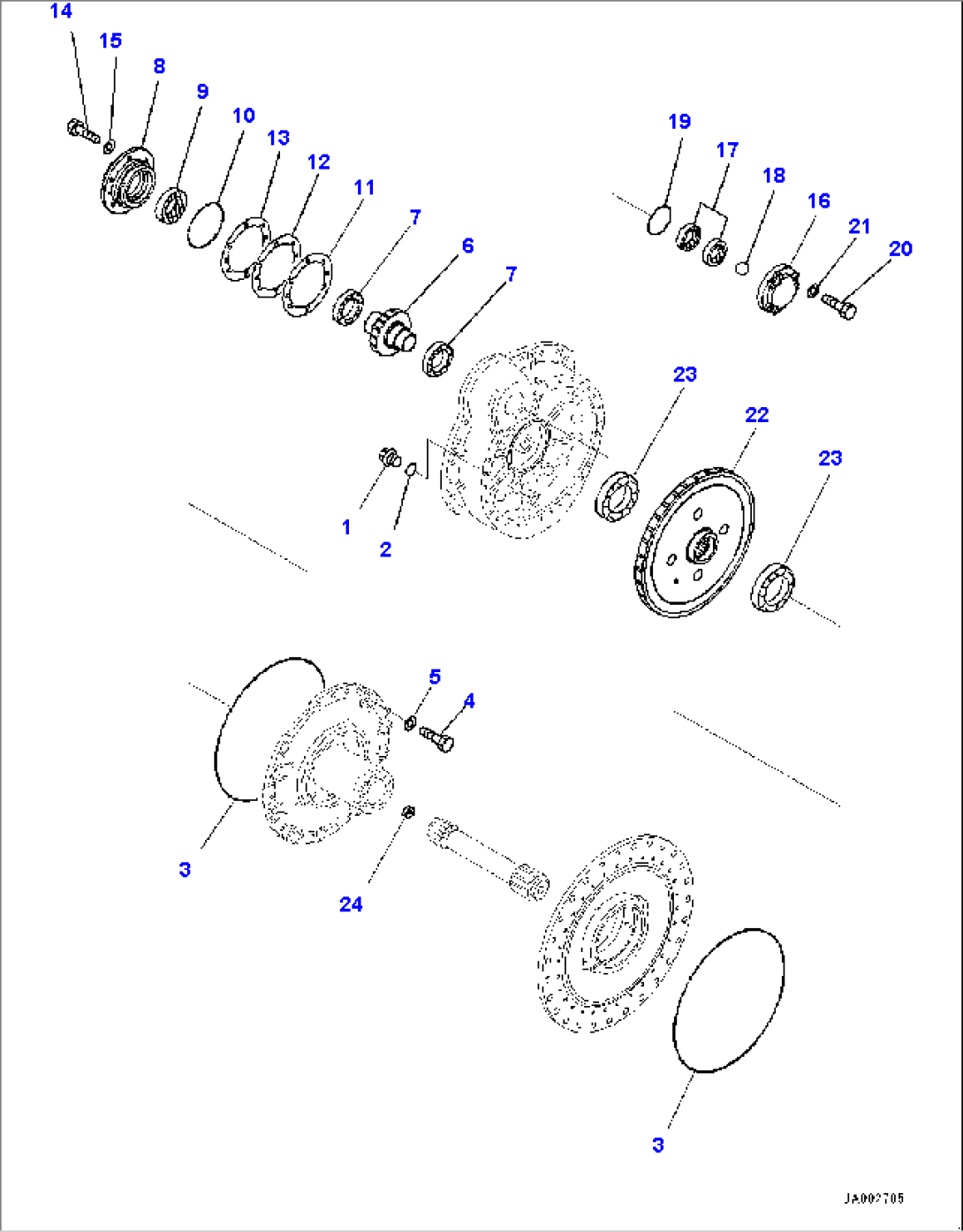

| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-27-00310 | Final Drive Assembly | 10001- | ||
| 14Y-27-00350 | Final Drive Assembly | 10010- | ||
| 1 | 07044-13620 | Plug | 10010- | |
| 2 | 07002-03634 | O-ring | 10010- | |
| 3 | 14X-27-11170 | O-ring | 10010- | |
| 4 | 01010-81645 | Bolt | 10010- | |
| 5 | 01643-31645 | Washer | 10010- | |
| 6 | 14X-27-31210 | Pinion | 10010- | |
| 7 | 14X-27-11231 | Bearing | 10010- | |
| 8 | 14X-27-11220 | Cage | 10010- | |
| 9 | 07013-10080 | Seal, Oil | 10010- | |
| 10 | 07000-05165 | O-ring | 10010- | |
| 10 | 14X-27-05010 | Shim Kit | 10010- | |
| 11 | Shim, T=0.2mm | 10010- | ||
| 12 | Shim, T=0.3mm | 10010- | ||
| 13 | Shim, T=1.0mm | 10010- | ||
| 14 | 01010-81235 | Bolt | 10010- | |
| 15 | 01643-31232 | Washer | 10010- | |
| 16 | 14X-27-11243 | Cover | 10010- | |
| 17 | 209-03-12270 | Seal, Oil | 10010- | |
| 18 | 04260-01905 | Ball | 10010- | |
| 19 | 07000-02110 | O-ring | 10010- | |
| 20 | 01010-81245 | Bolt | 10010- | |
| 21 | 01643-31232 | Washer | 10010- | |
| 22 | 14X-27-11312 | Gear | 10010- | |
| 23 | 06040-06024 | Bearing | 10010- | |
| 24 | 14X-27-11420 | Collar | 10010- |
