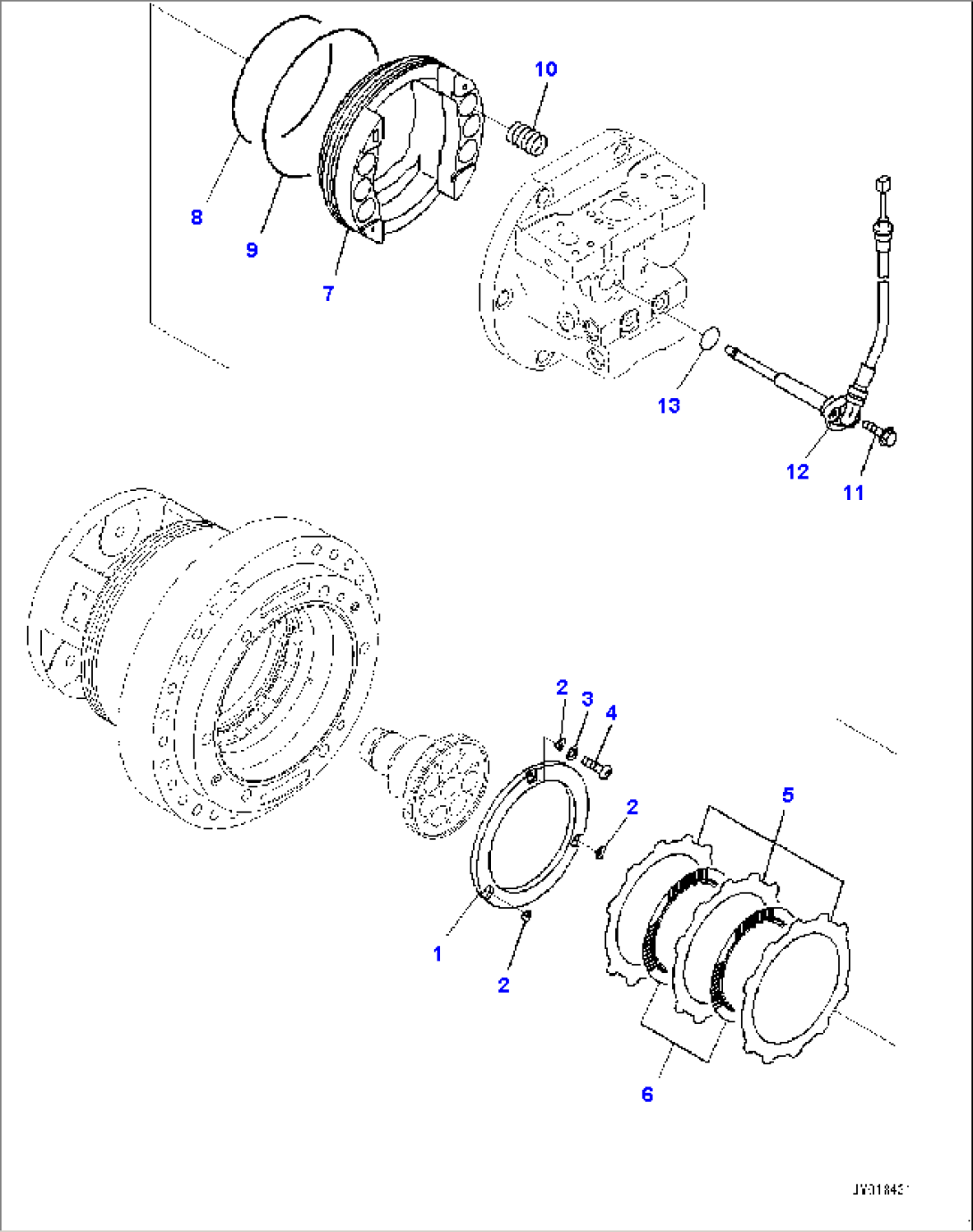

| Item | Part No. | Part Name | Qty | Serial No. |
| 13Y-27-10401 | Final Drive Assembly | B60001- | ||
| 706-8J-01520 | Motor Assembly | B60001- | ||
| 1 | (706-8J-91240) | Plate | B60001- | |
| 2 | (706-8J-91250) | Plate | B60001- | |
| 3 | (706-8J-91280) | Washer | B60001- | |
| 4 | (706-8J-91260) | Screw | B60001- | |
| 5 | (706-8J-91220) | Plate | B60001- | |
| 6 | (706-8J-91230) | Disc | B60001- | |
| 7 | (706-8J-91210) | Piston, Brake | B60001- | |
| 8 | (07000-B6245) | O-ring | B60001- | |
| 9 | (07000-B5280) | O-ring | B60001- | |
| 10 | (706-8J-91270) | Spring | B60001- | |
| 11 | 01435-00825 | Bolt | B60001- | |
| 12 | 729-11-26000 | Sensor Assembly, Revolution | B60001- | |
| 13 | 07000-B2040 | O-ring | B60001- |
