| Item | Part No. | Part Name | Qty | Serial No. |
| (195-27-00613) | FINAL DRIVE ASS'Y,R.H. | 18036- | ||

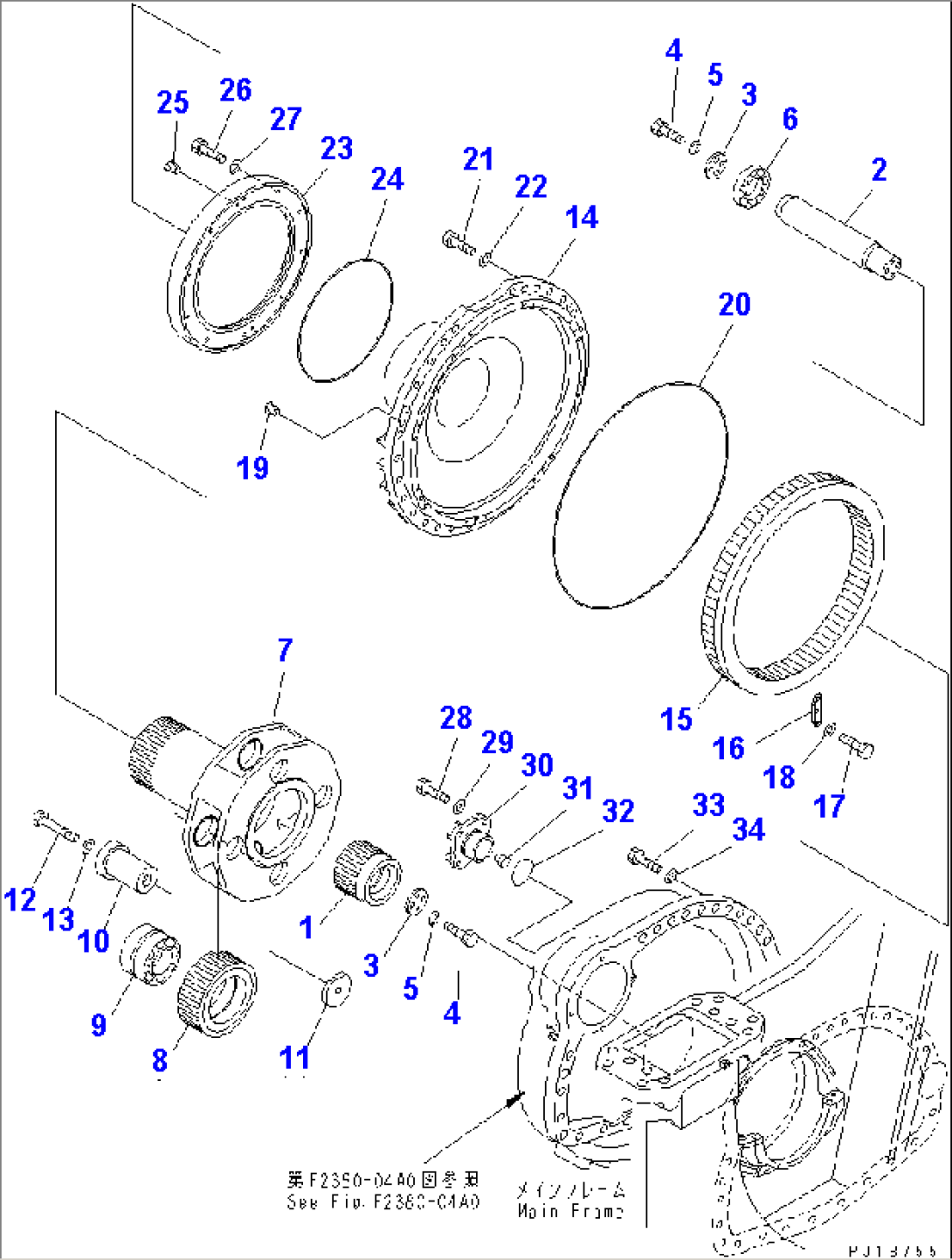

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-01A0¤ F2380-04A0 AND F2380-05A0. | ||||
| 1 | 195-27-31284 | GEAR | 18001- | |
| 2 | 195-27-34250 | SHAFT | 18001- | |
| 3 | 195-27-34260 | PLATE | 18001- | |
| 4 | 01010-61640 | BOLT | 18001- | |
| 5 | 01643-31645 | WASHER | 18001- | |
| 6 | 06043-00217 | BEARING | 18001- | |
| 7 | 195-27-31321 | CARRIER | 18001- | |
| 8 | 195-27-31313 | GEAR | 18001- | |
| 9 | 17M-09-21140 | BEARING | 18001- | |
| 10 | 17M-27-21330 | SHAFT | 18001- | |
| 11 | 17M-27-11260 | HOLDER | 18001- | |
| 12 | 01011-62070 | BOLT | 18001- | |
| 13 | 01643-32060 | WASHER | 18001- | |
| 14 | 195-27-34140 | COVER,R.H. | 18001- | |
| 15 | 195-27-31360 | GEAR | 18001- | |
| 16 | 195-27-31370 | PLATE | 18001- | |
| 17 | 01010-81230 | BOLT | 18001- | |
| 18 | 01643-31232 | WASHER | 18001- | |
| 19 | 07049-02430 | PLUG | 18001- | |
| 20 | 195-27-31490 | O-RING | 18001- | |
| 21 | 01010-62480 | BOLT | 18001- | |
| 22 | 01643-32460 | WASHER | 18001- | |
| 23 | 195-27-34350 | COVER | 18001- | |
| 24 | 07000-15500 | O-RING | 18001- | |
| 25 | 07049-01215 | PLUG | 18001- | |
| 26 | 01010-81230 | BOLT | 18001- | |
| 27 | 01643-31232 | WASHER | 18001- | |
| 28 | 01010-61640 | BOLT | 18001- | |
| 29 | 01643-31645 | WASHER | 18001- | |
| 30 | 195-27-31190 | COVER | 18001- | |
| 31 | 195-27-31471 | BUTTON | 18001- | |
| 32 | 07000-12095 | O-RING | 18001- | |
| 33 | 01010-63095 | BOLT | 18001- | |
| 34 | 01643-33080 | WASHER | 18001- |
