| Item | Part No. | Part Name | Qty | Serial No. |

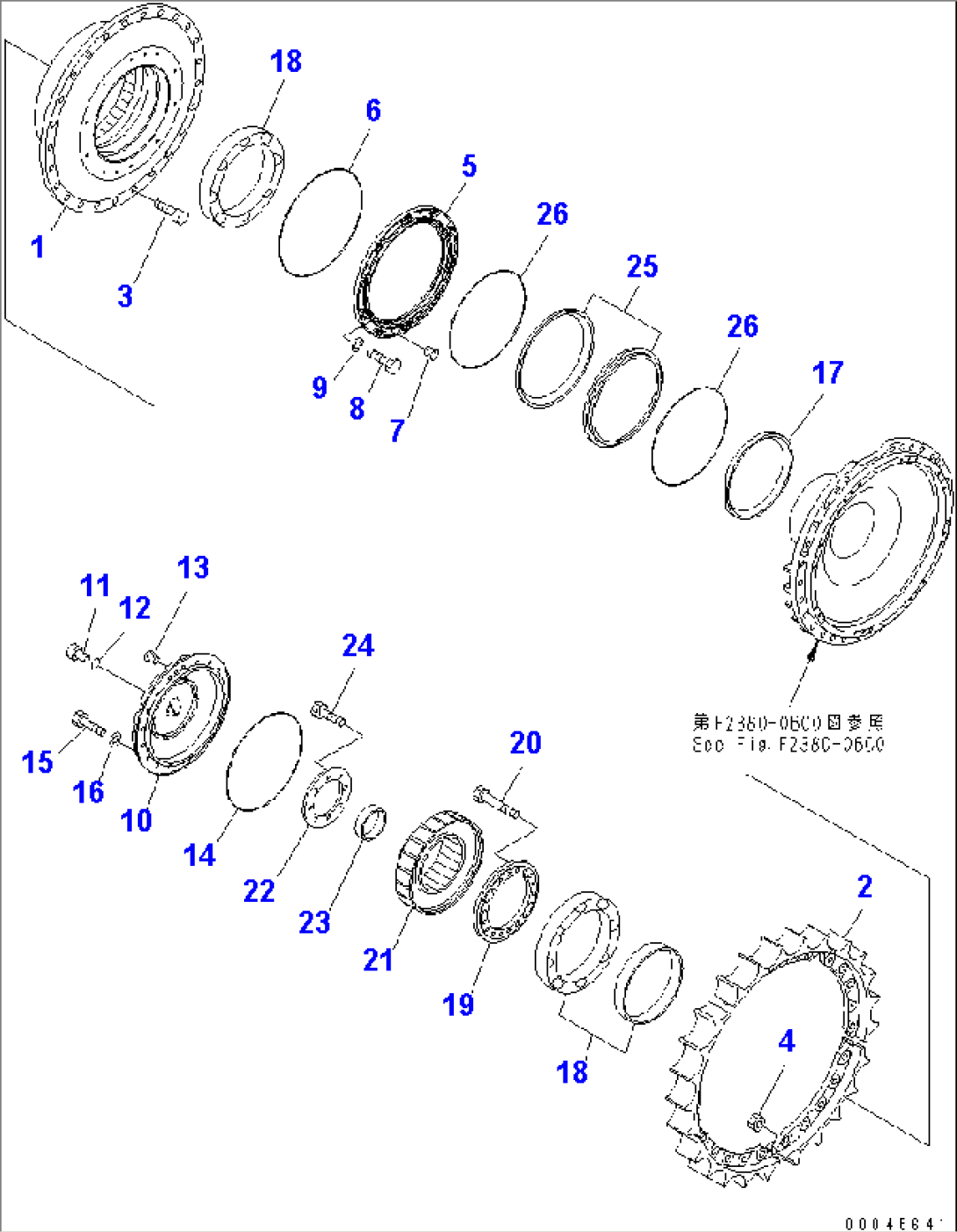

| (195-27-00730) | FINAL DRIVE ASS'Y | 55001- | ||
| (195-27-00750) | FINAL DRIVE ASS'Y | 55001- | ||
| 1 | 195-27-34111 | HUB | 55001- | |
| 2 | 195-27-33111 | TEETH | 55001- | |
| 3 | 195-27-33130 | BOLT | 55001- | |
| 4 | 195-27-33141 | NUT | 55001- | |
| 5 | 195-27-34340 | COVER | 55001- | |
| 6 | 07000-15500 | O-RING | 55001- | |
| 7 | 07049-01215 | PLUG | 55001- | |
| 8 | 01010-81230 | BOLT | 55001- | |
| 9 | 01643-31232 | WASHER | 55001- | |
| 10 | 195-27-34120 | COVER | 55001- | |
| 11 | 198-27-31420 | PLUG | 55001- | |
| 12 | 07002-13634 | O-RING | 55001- | |
| 13 | 07049-01620 | PLUG | 55001- | |
| 14 | 07000-15455 | O-RING | 55001- | |
| 15 | 01010-81650 | BOLT | 55001- | |
| 16 | 01643-31645 | WASHER | 55001- | |
| 17 | 195-27-34171 | COLLAR | 55001- | |
| 18 | 195-09-18410 | BEARING | 55001- | |
| 19 | 195-27-31390 | HOLDER | 55001- | |
| 20 | 01010-81650 | BOLT | 55001- | |
| 21 | 195-27-31581 | HUB | 55001- | |
| 22 | 195-27-34280 | PLATE | 55001- | |
| 23 | 195-27-34270 | SPACER | 55001- | |
| 24 | 01010-81635 | BOLT | 55001- | |
| 195-27-00102 | FLOATING SEAL ASS'Y | 55001- | ||
| 25 | \6\ | RING | 55001- | |
| 26 | \6\ | O-RING | 55001- |
