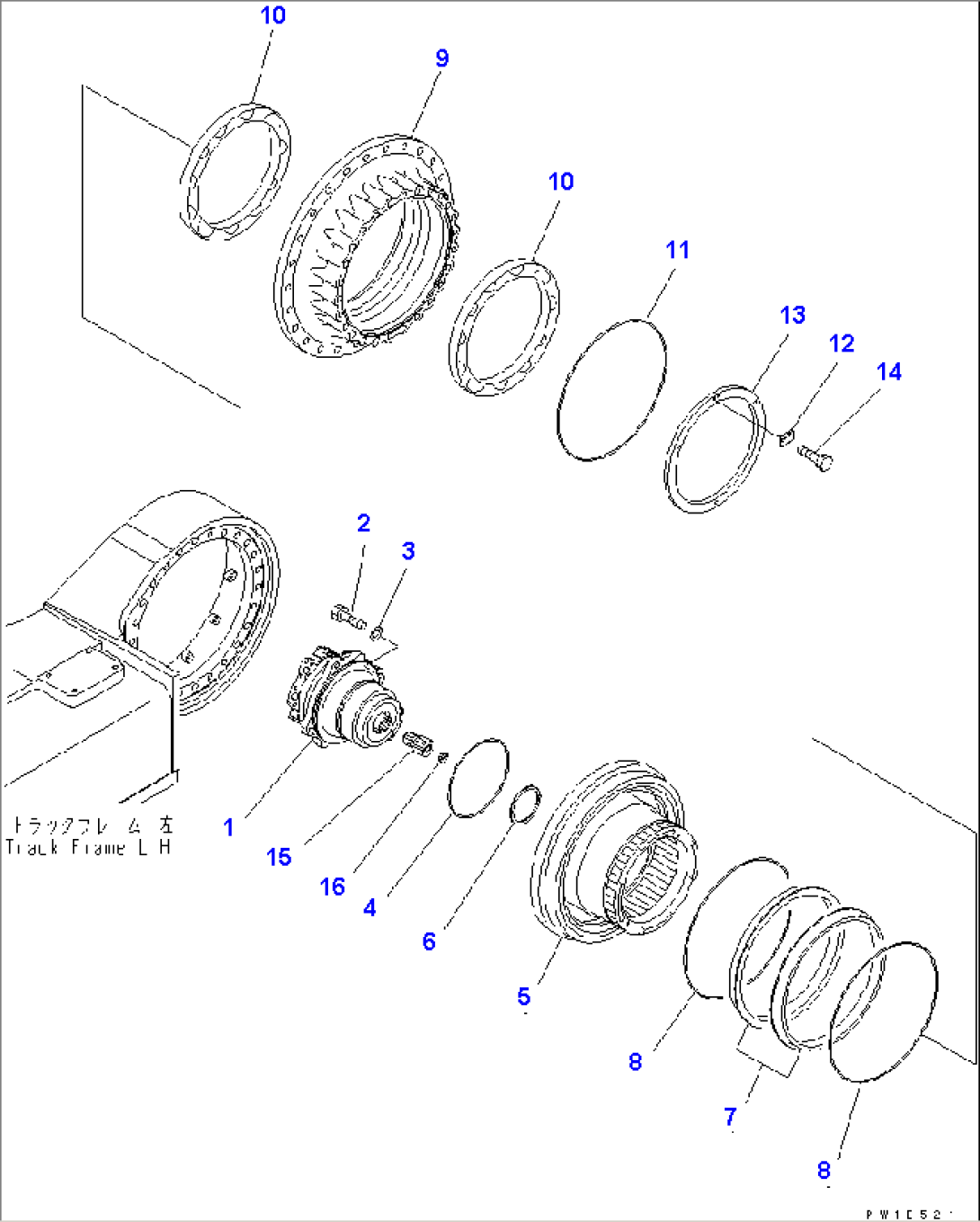

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (209-60-75100) | MOTOR ASS'Y,(SEE FIG.Y1650-01A1) | K32001- | |
| 2 | 01010-81860 | BOLT | K30001- | |
| 3 | 01643-31845 | WASHER | K30001- | |
| 4 | 209-27-71370 | O-RING | K30001- | |
| 5 | 209-27-71252 | SHAFT | K30043- | |
| 6 | 209-27-71521 | SPACER | K32001- | |
| 209-27-00160 | FLOATING SEAL ASS'Y | K30001- | ||
| 7 | 209-27-00170 | SEAL RING ASS'Y | K30001- | |
| \6\ | SEAL | K30001- | ||
| 8 | 209-27-00180 | O-RING ASS'Y | K30001- | |
| \6\ | O-RING | K30001- | ||
| 9 | 209-27-71242 | HUB | K30043- | |
| 10 | 209-27-61360 | BEARING | K30001- | |
| 11 | 195-09-18330 | O-RING | K30001- | |
| 12 | 209-27-71291 | LOCK | K30043- | |
| 13 | 209-27-71281 | NUT¤ LOCK | K30043- | |
| 14 | 01010-81025 | BOLT | K30001- | |
| 15 | 209-27-71510 | SHAFT | K32001- | |
| 16 | 207-27-61280 | BUTTON | K30001- |
