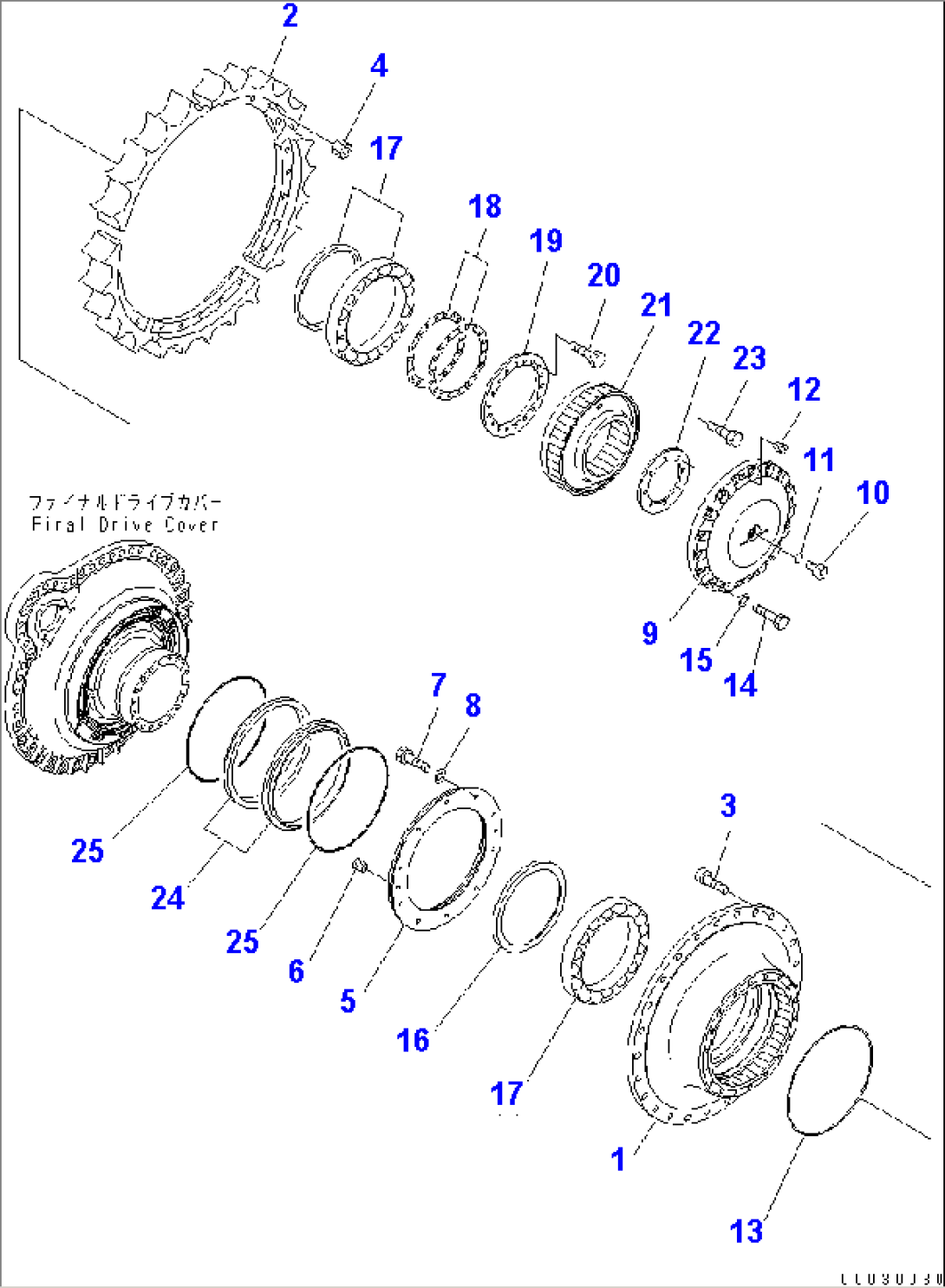

| Item | Part No. | Part Name | Qty | Serial No. |
| (198-27-00611) | FINAL DRIVE ASS'Y,L.H. | 30001- | ||
| (198-27-00670) | FINAL DRIVE ASS'Y,L.H. | 30042- | ||
| 1 | 198-27-45130 | HUB | 30001- | |
| 2 | 198-27-42263 | TEETH | 30001- | |
| 3 | 198-27-32231 | BOLT | 30001- | |
| 4 | 01803-03034 | NUT | 30001- | |
| 5 | 198-27-45530 | COVER | 30001- | |
| 6 | 07049-01620 | PLUG | 30001- | |
| 7 | 01010-81640 | BOLT | 30001- | |
| 8 | 01643-31645 | WASHER | 30001- | |
| 9 | 198-27-45190 | COVER | 30001- | |
| 10 | 198-27-31420 | PLUG | 30001- | |
| 11 | 07002-13634 | O-RING | 30001- | |
| 12 | 07049-01620 | PLUG | 30001- | |
| 13 | 198-09-45560 | O-RING | 30001- | |
| 14 | 01010-82055 | BOLT | 30001- | |
| 15 | 01643-32060 | WASHER | 30001- | |
| 16 | 198-27-45240 | COLLAR | 30001- | |
| 17 | 198-09-31360 | BEARING | 30001- | |
| 18 | 198-27-00080 | SHIM ASS'Y | 30001- | |
| 18 | \6\ | SHIM, 0.5MM | 30001- | |
| 18 | \6\ | SHIM, 0.2MM | 30001- | |
| 19 | 198-27-31331 | HOLDER | 30001- | |
| 20 | 01010-82055 | BOLT | 30001- | |
| 21 | 198-27-45250 | HUB | 30001- | |
| 22 | 198-27-42180 | PLATE | 30001- | |
| 23 | 01010-81635 | BOLT | 30001- | |
| 198-27-00150 | FLOATING SEAL ASS'Y | 30001- | ||
| 24 | \6\ | RING, SEAL | 30001- | |
| 25 | \6\ | O-RING | 30001- |
