| Item | Part No. | Part Name | Qty | Serial No. |

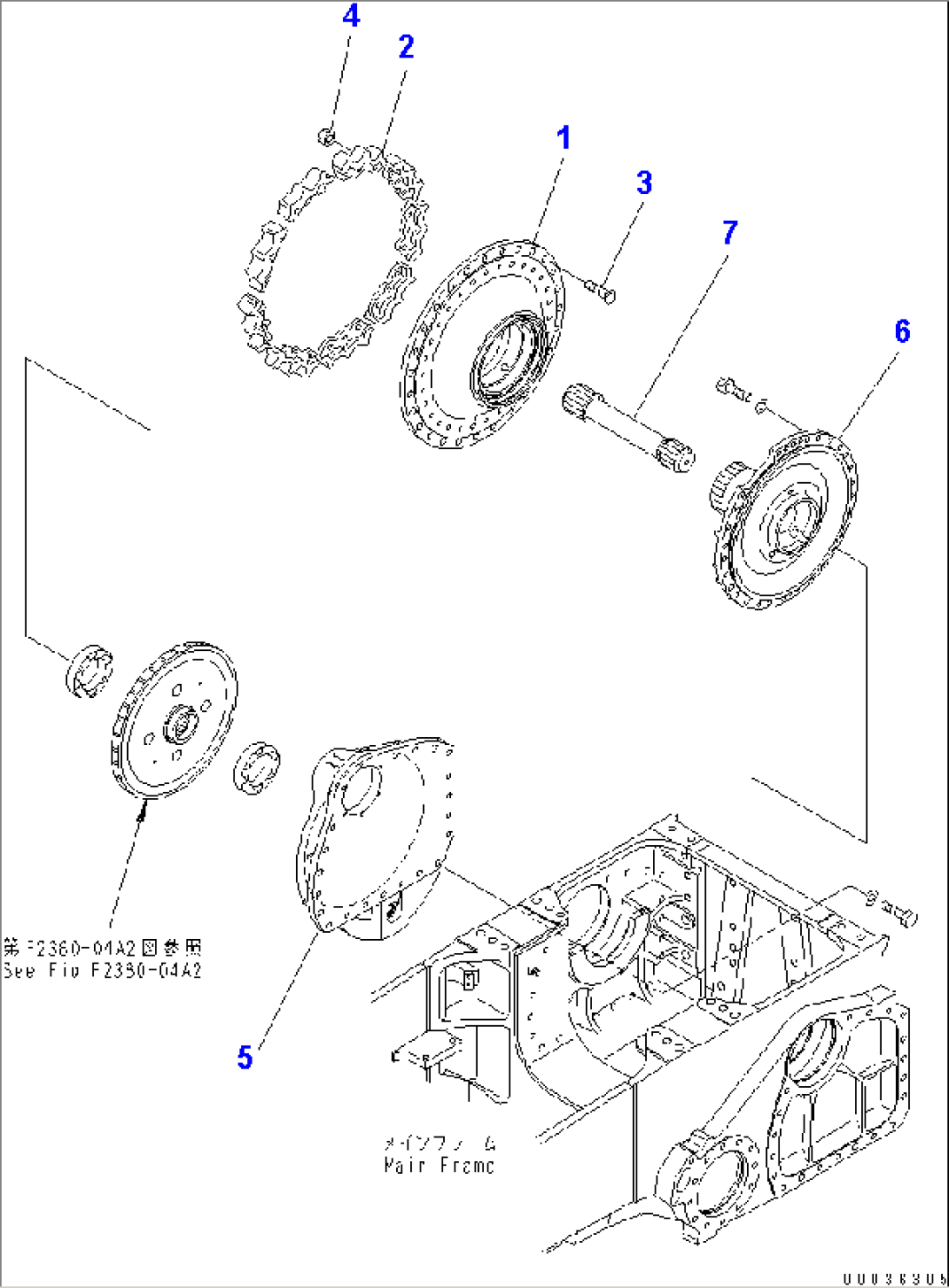

| (14X-27-00340) | FINAL DRIVE ASS'Y | 67001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-04A2 AND F2380-06A2. | ||||
| 1 | 14X-27-31710 | HUB | 67001- | |
| 2 | 14X-27-15112 | TEETH | 67001- | |
| 3 | 154-27-12320 | BOLT | 67001- | |
| 4 | 01803-02228 | NUT | 67001- | |
| 5 | 14X-27-31120 | CASE | 67001- | |
| 6 | 14X-27-31260 | COVER | 67001- | |
| 7 | 14X-27-11412 | PINION | 67001- |
