| Item | Part No. | Part Name | Qty | Serial No. |
| (14Y-27-00420) | FINAL DRIVE ASS'Y | 69001- | ||

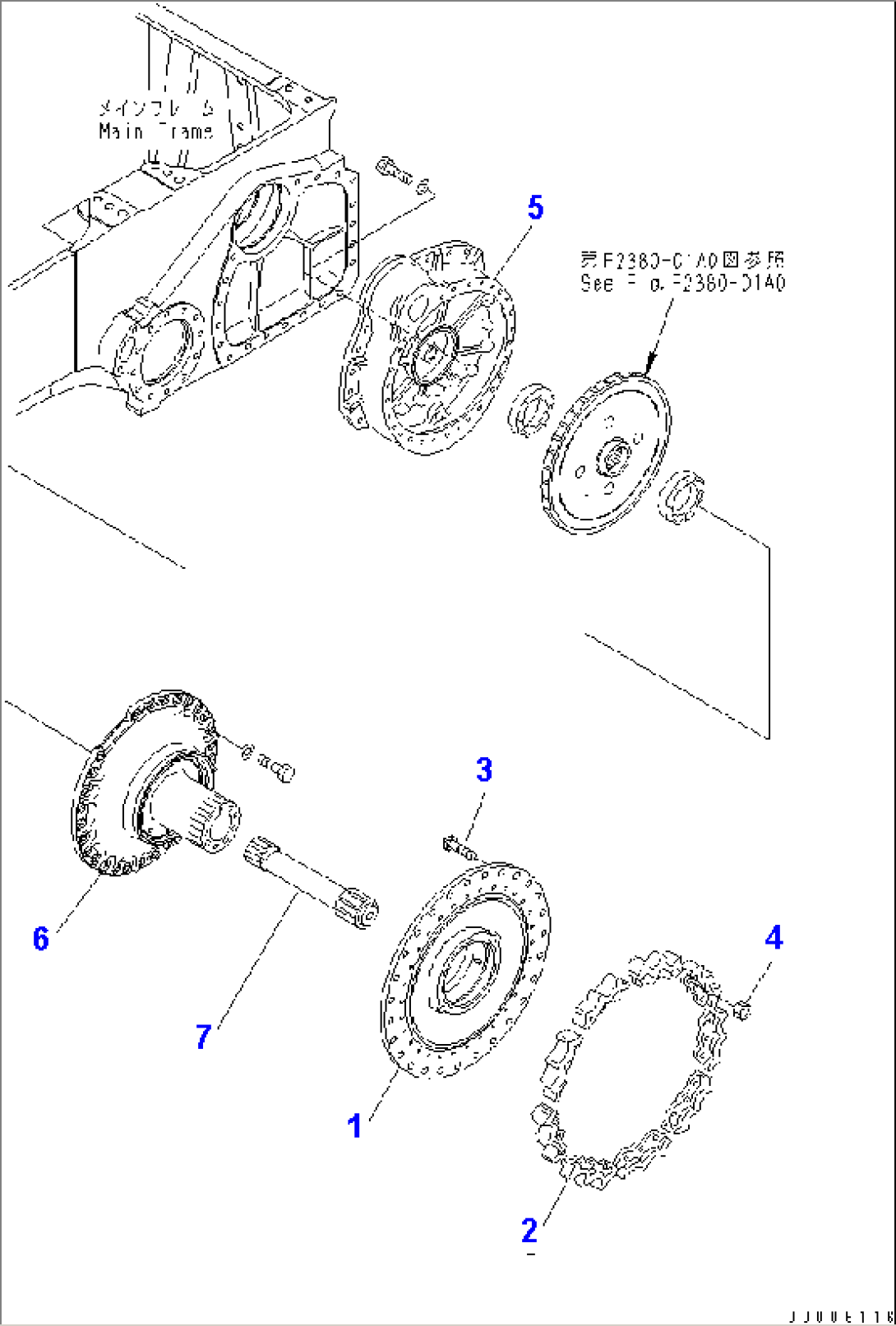

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-04A0 TO 06A3. | ||||
| 1 | 14X-27-31710 | HUB | 69001- | |
| 2 | 14X-27-15211 | TEETH | 69001- | |
| 3 | 154-27-12320 | BOLT | 69001- | |
| 4 | 01803-02228 | NUT | 69001- | |
| 5 | 14X-27-31120 | CASE | 69001- | |
| 6 | 14Y-27-31160 | COVER | 69001- | |
| 7 | 14Y-27-11412 | PINION | 69001- |
