| Item | Part No. | Part Name | Qty | Serial No. |
| (14Y-27-00010) | FINAL DRIVE ASS'Y,L.H. | 3001- | ||
| (14Y-27-00020) | FINAL DRIVE ASS'Y,R.H. | 3001- | ||

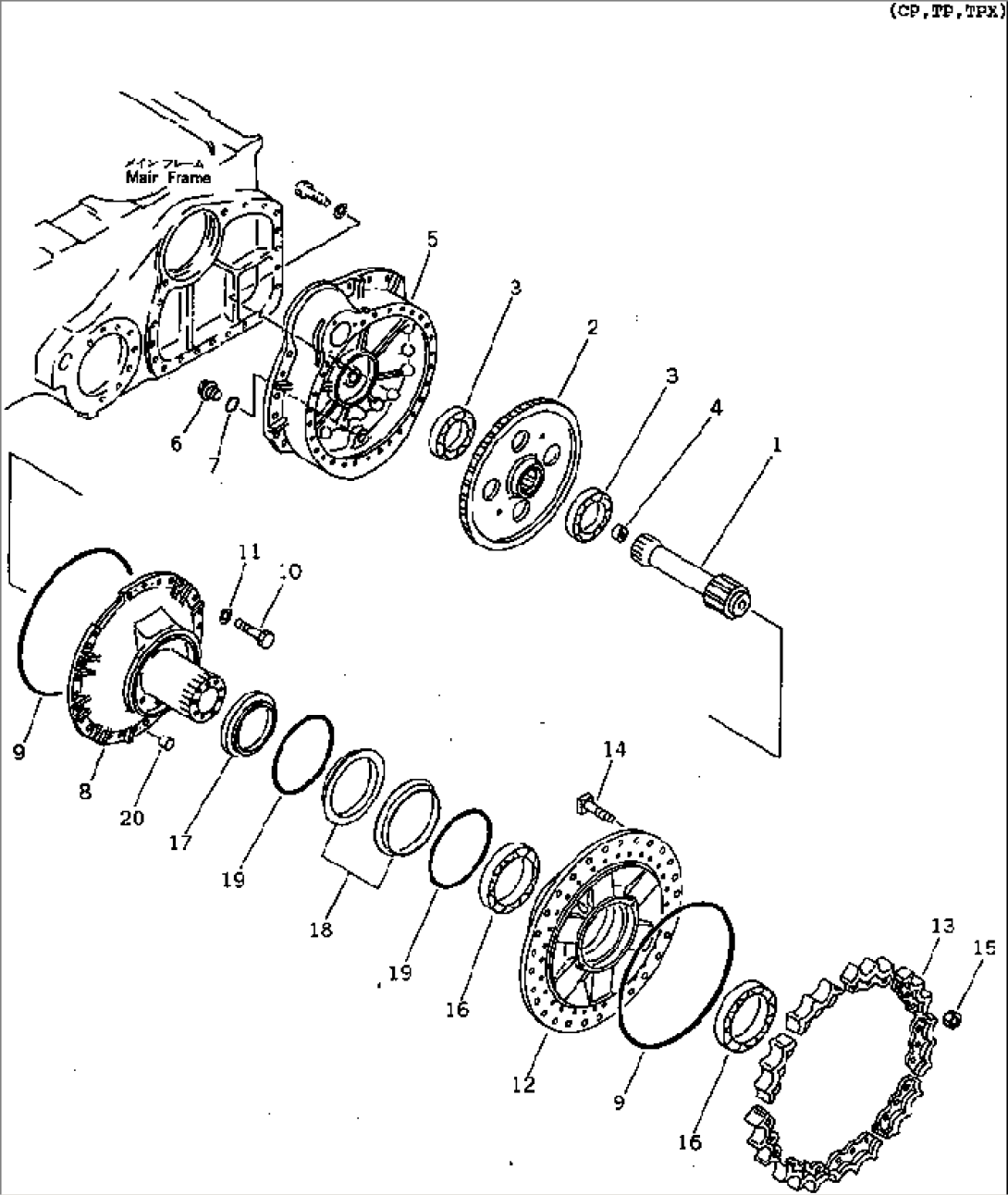

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380JB TO F2380NB. | ||||
| 1 | 14Y-27-11412 | PINION | 3001- | |
| 2 | 14X-27-11311 | GEAR | 3001- | |
| 3 | 06040-06024 | BEARING | 3001- | |
| 4 | 14X-27-11420 | COLLAR | 3001- | |
| 5 | 14X-27-11113 | CASE,L.H. | 3001- | |
| 5 | 14X-27-11123 | CASE,R.H. | 3001- | |
| 6 | 07044-13620 | PLUG | 3001- | |
| 7 | 07002-03634 | O-RING | 3001- | |
| 8 | 14Y-27-11152 | COVER,L.H. | 3001- | |
| 8 | 14Y-27-11162 | COVER,R.H. | 3001- | |
| 9 | 14X-27-11170 | O-RING | 3001- | |
| 10 | 01010-51645 | BOLT | 3001- | |
| 11 | 01643-31645 | WASHER | 3001- | |
| 12 | 14X-27-11710 | HUB | 3001- | |
| 13 | 14X-27-15111 | TEETH | 3001- | |
| 14 | 154-27-12320 | BOLT | 3001- | |
| 15 | 01803-02228 | NUT | 3001- | |
| 16 | 14X-27-11721 | BEARING | 3001- | |
| 17 | 14X-27-11751 | COLLAR | 3001- | |
| 14X-27-00100 | FLOATING SEAL ASS'Y | 3001- | ||
| 18 | \6\ | SEAL | 3001- | |
| 19 | \6\ | O-RING | 3001- | |
| 20 | 07049-01620 | PLUG | 3001- |
