| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (203-60-63110) | TRAVEL MOTOR ASS'Y,(SEE FIG. Y1651-01A0D) | 52401- | |
| 2 | 01010-61655 | BOLT | 52401- | |
| 3 | 01643-31645 | WASHER | 52401- | |
| 4 | 203-27-61310 | SPROCKET | 52401- | |
| 5 | 203-27-51120 | BOLT | 52401- | |
| 6 | 01643-31645 | WASHER | 52401- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc120 6e s/n 45001 up
- Travel and lower piping
- Final drive (sprocket and related part)(#57000 )
Поиск по каталогу

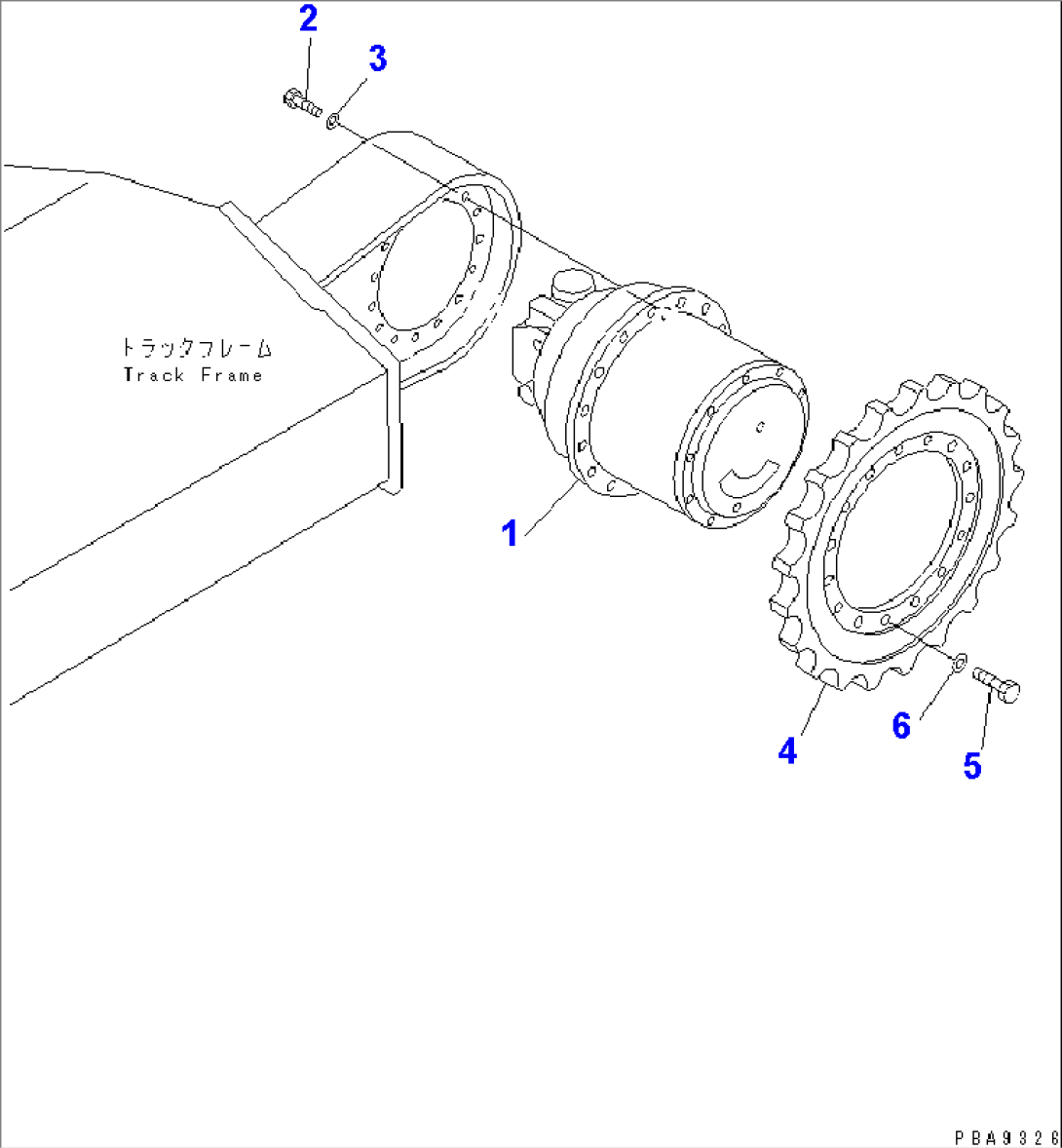

FINAL DRIVE (SPROCKET AND RELATED PART)(#57000-)
