| Item | Part No. | Part Name | Qty | Serial No. |
| 195-27-00603 | FINAL DRIVE ASS'Y,L.H. | 18036- | ||
| 195-27-00602 | FINAL DRIVE ASS'Y,L.H. | 18001-18035 | ||

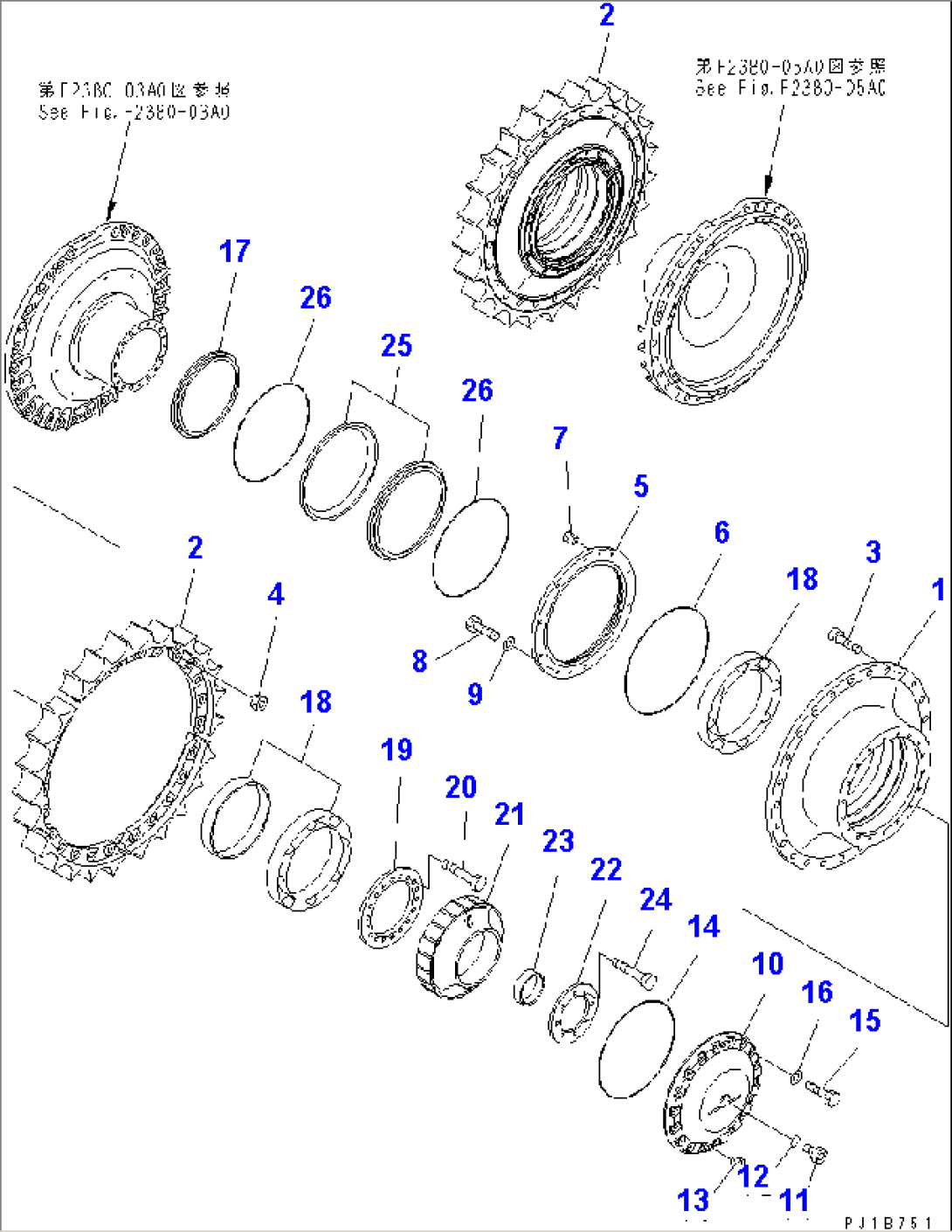

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-01A0 TO F2380-03A0. | ||||
| 195-27-00613 | FINAL DRIVE ASS'Y,R.H. | 18036- | ||
| 195-27-00612 | FINAL DRIVE ASS'Y,R.H. | 18001-18035 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-01A0¤ F2380-04A0 AND F2380-05A0. | ||||
| 1 | 195-27-34111 | HUB | 18001- | |
| 2 | 195-27-33111 | TEETH | 18036- | |
| 195-27-33110 | TOOTH | 18001-18035 | ||
| 3 | 195-27-33130 | BOLT | 18001- | |
| 4 | 195-27-33141 | NUT | 18001- | |
| 5 | 195-27-34340 | COVER | 18001- | |
| 6 | 07000-15500 | O-RING | 18001- | |
| 7 | 07049-01215 | PLUG | 18001- | |
| 8 | 01010-81230 | BOLT | 18001- | |
| 9 | 01643-31232 | WASHER | 18001- | |
| 10 | 195-27-34120 | COVER | 18001- | |
| 11 | 198-27-31420 | PLUG | 18001- | |
| 12 | 07002-13634 | O-RING | 18001- | |
| 13 | 07049-01620 | PLUG | 18001- | |
| 14 | 07000-15455 | O-RING | 18001- | |
| 15 | 01010-61650 | BOLT | 18001- | |
| 16 | 01643-31645 | WASHER | 18001- | |
| 17 | 195-27-34171 | COLLAR | 18001- | |
| 18 | 195-09-18410 | BEARING | 18001- | |
| 19 | 195-27-31390 | HOLDER | 18001- | |
| 20 | 01010-61650 | BOLT | 18001- | |
| 21 | 195-27-31581 | HUB | 18001- | |
| 22 | 195-27-34280 | PLATE | 18001- | |
| 23 | 195-27-34270 | SPACER | 18001- | |
| 24 | 01010-61635 | BOLT | 18001- | |
| 195-27-00102 | FLOATING SEAL ASS'Y | 18001- | ||
| 25 | 195-27-00111 | SEAL RING ASS'Y | 18001- | |
| \6\ | RING | 18001- | ||
| 26 | 195-27-00121 | O-RING ASS'Y | 18001- | |
| 195-27-31880 | O-RING | 18001- |
