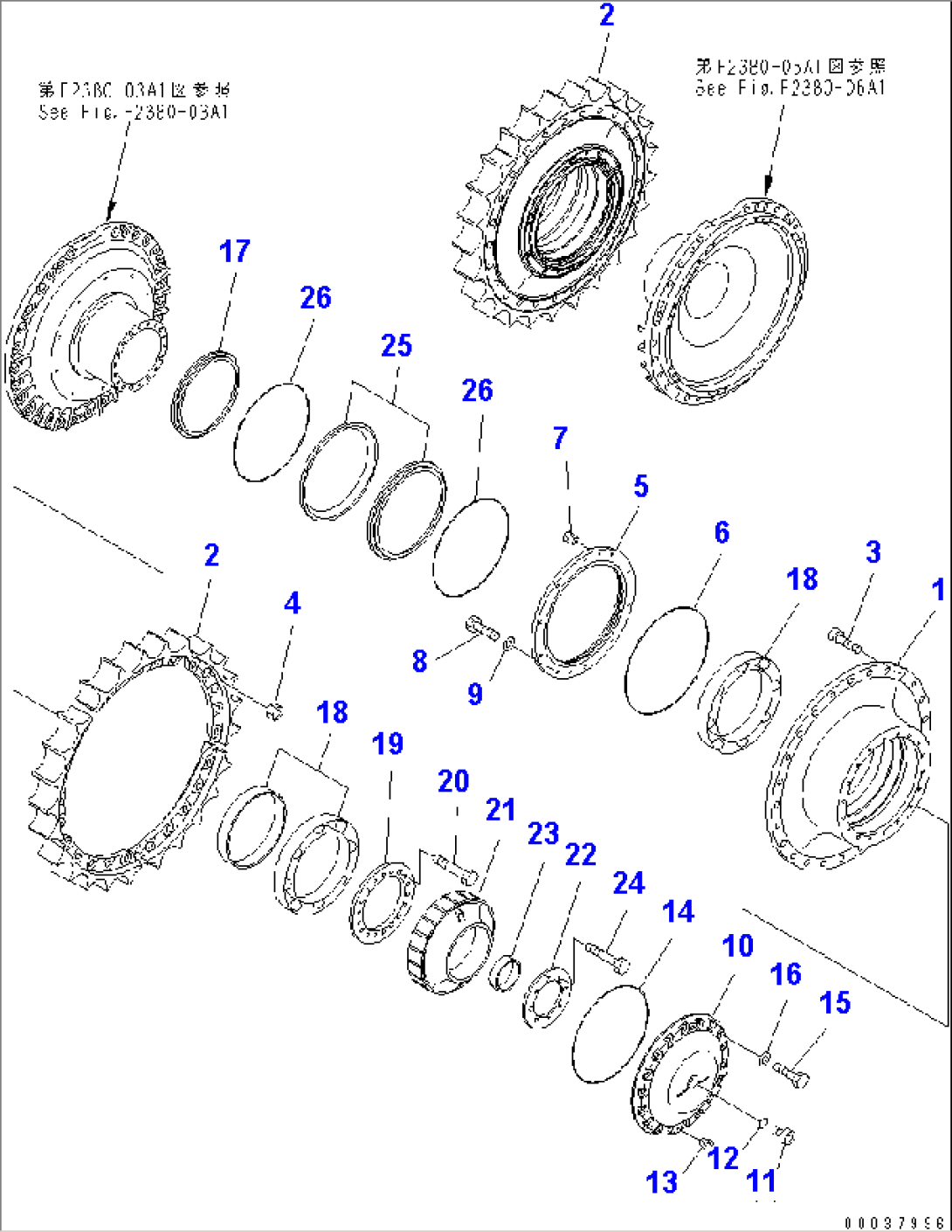

| Item | Part No. | Part Name | Qty | Serial No. |
| 195-27-00544 | FINAL DRIVE ASS'Y | 17712- | ||
| (\0\195-27-00543) | FINAL DRIVE ASS'Y | 17701-17711 | ||
| 195-27-00542 | FINAL DRIVE ASS'Y,L.H. | 17605-17700 | ||
| (\2\195-27-00540) | FINAL DRIVE ASS'Y,L.H. | (17501-17604) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-01A3 TO F2380-03A3. | ||||
| 195-27-00554 | FINAL DRIVE ASS'Y | 17712- | ||
| (\0\195-27-00553) | FINAL DRIVE ASS'Y | 17701-17711 | ||
| 195-27-00552 | FINAL DRIVE ASS'Y,R.H. | 17605-17700 | ||
| (\2\195-27-00550) | FINAL DRIVE ASS'Y,R.H. | (17501-17604) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-01A3, F2380-05A3 AND F2380-06A3. | ||||
| X21-0609770 | 17501-17604 | |||
| 1 | 195-27-34111 | HUB | 17501- | |
| 1 | (\2\195-27-34110) | HUB | (17501-17604) | |
| 2 | 195-27-33111 | TEETH | 17605- | |
| 2 | 195-27-33110 | TOOTH | 17501-17604 | |
| 3 | 195-27-33130 | BOLT | 17501- | |
| 4 | 195-27-33141 | NUT | 17501- | |
| 5 | 195-27-34310 | COVER | 17501- | |
| 6 | 07000-15500 | O-RING | 17501- | |
| 7 | 07049-01215 | PLUG | 17501- | |
| 8 | 01010-81230 | BOLT | 17501- | |
| 9 | 01643-31232 | WASHER | 17501- | |
| 10 | 195-27-34120 | COVER | 17501- | |
| 11 | 198-27-31420 | PLUG | 17501- | |
| 12 | 07002-13634 | O-RING | 17501- | |
| 13 | 07049-01620 | PLUG | 17501- | |
| 14 | 07000-15455 | O-RING | 17501- | |
| 15 | 01010-61650 | BOLT | 17501- | |
| 16 | 01643-31645 | WASHER | 17501- | |
| 17 | 195-27-34171 | COLLAR | 17501- | |
| 18 | 195-09-18410 | BEARING | 17501- | |
| 19 | 195-27-31390 | HOLDER | 17501- | |
| 20 | 01010-61650 | BOLT | 17501- | |
| 21 | 195-27-31581 | HUB | 17501- | |
| 22 | 195-27-34280 | PLATE | 17501- | |
| 23 | 195-27-34270 | SPACER | 17501- | |
| 24 | 01010-61635 | BOLT | 17501- | |
| 195-27-00102 | FLOATING SEAL ASS'Y | 17501- | ||
| 25 | \6\ | RING | 17501- | |
| 26 | \6\ | O-RING | 17501- |
