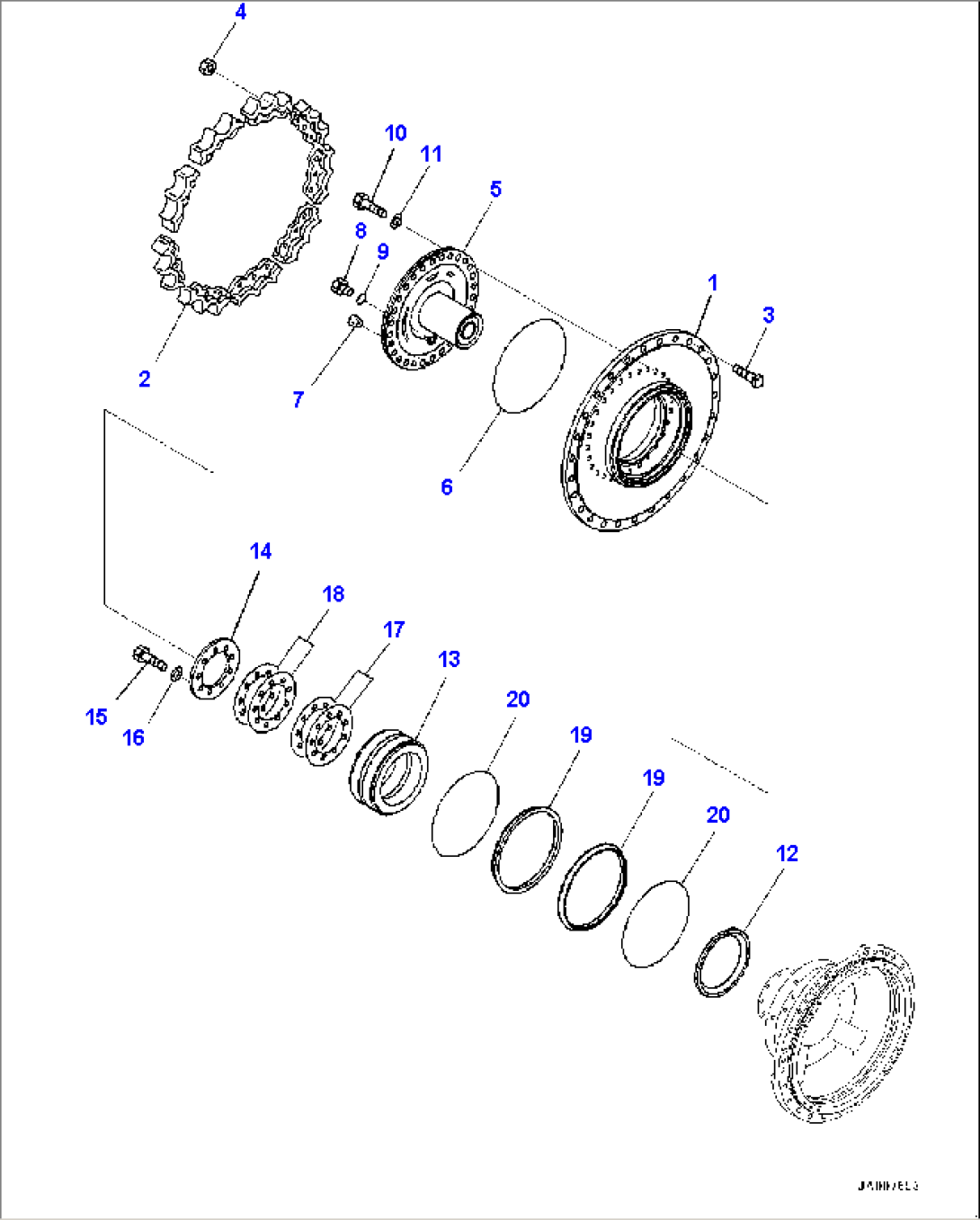

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-27-00272 | Final Drive | 3099- | ||
| 14X-27-00271 | Final Drive | 2609-3098 | ||
| 14X-27-00270 | Final Drive Group | 1001-2606 | ||
| 1 | 14X-27-51141 | Hub | 3099- | |
| 1 | 14X-27-51140 | Hub | 1001-3098 | |
| 2 | 14X-27-15112 | Teeth | 1001- | |
| 3 | 154-27-12320 | Bolt | 1001- | |
| 4 | 01803-02228 | Nut | 1001- | |
| 5 | 14X-27-51150 | Shaft | 1001- | |
| 6 | 07000-15360 | O-ring | 1001- | |
| 7 | 07049-01215 | Plug | 1001- | |
| 8 | 07044-12412 | Plug | 1001- | |
| 9 | 07002-12434 | O-ring | 1001- | |
| 10 | 01010-82055 | Bolt | 1001- | |
| 11 | 01643-32060 | Washer | 1001- | |
| 12 | 14X-27-51320 | Collar | 1001- | |
| 13 | 14X-09-51110 | Bearing | 1001- | |
| 14 | 14X-27-51330 | Holder | 1001- | |
| 15 | 01010-81645 | Bolt | 1001- | |
| 16 | 01643-31645 | Washer | 1001- | |
| 16 | 14X-27-00280 | Shim Assembly | 1001- | |
| 17 | Shim, T=0.5mm | 1001- | ||
| 18 | Shim, T=0.2mm | 1001- | ||
| 18 | 14X-27-00051 | Floating Seal Assembly | 1001- | |
| 19 | Seal | 1001- | ||
| 20 | O-ring | 1001- |
