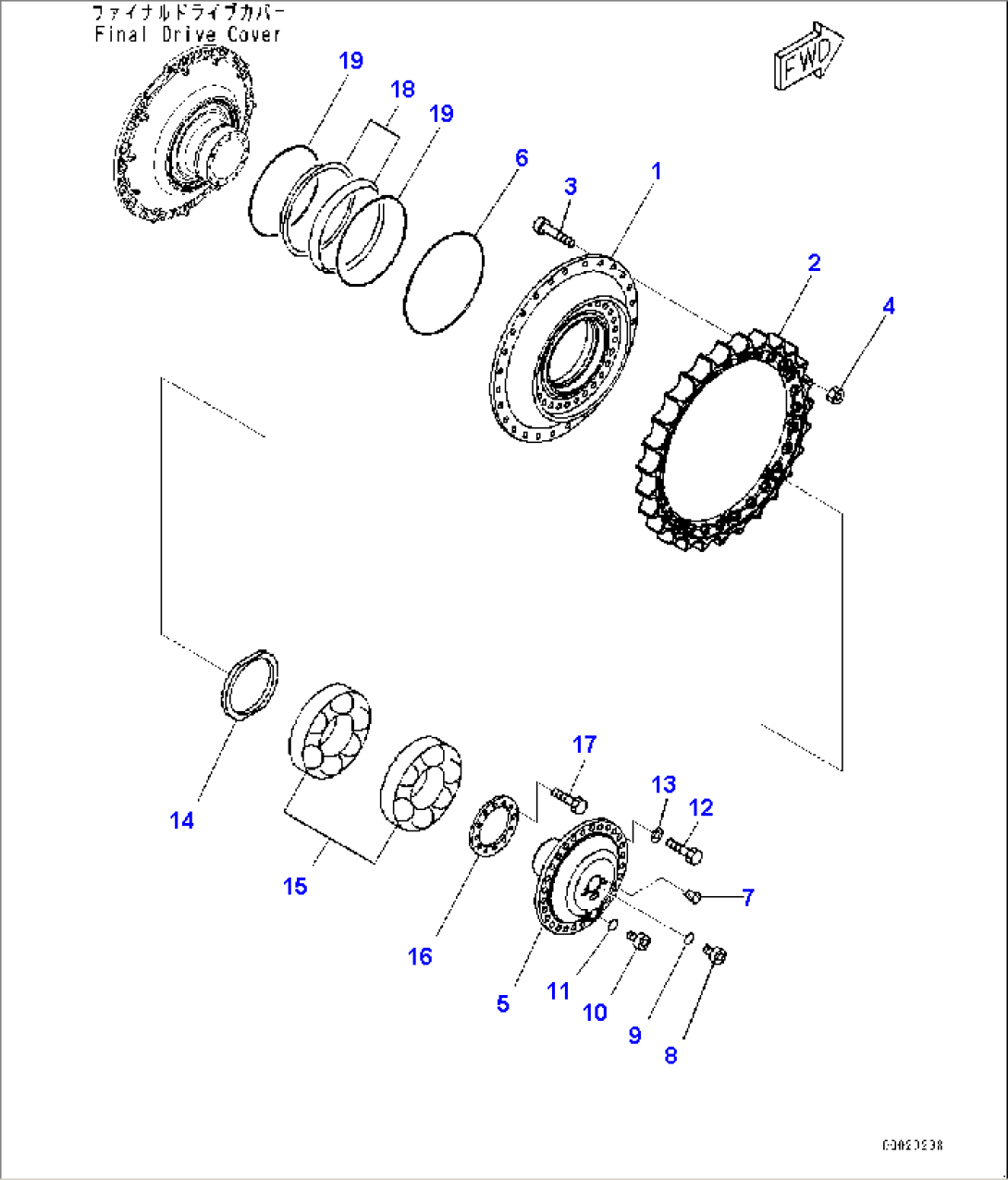

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-27-00423 | Final Drive | 12219- | ||
| 154-27-00422 | Final Drive | 11609-12218 | ||
| 1 | 154-27-72182 | Hub | 11609- | |
| 2 | 154-27-71630 | Teeth | 11609- | |
| 3 | 155-27-12181 | Bolt | 11609- | |
| 4 | 01803-12228 | Nut | 11609- | |
| 5 | 154-27-72430 | Shaft | 11609- | |
| 6 | 07000-15405 | O-ring | 11609- | |
| 7 | 07049-01215 | Plug | 11609- | |
| 8 | 07044-13620 | Plug | 11609- | |
| 9 | 07002-13634 | O-ring | 11609- | |
| 10 | 07044-12412 | Plug | 11609- | |
| 11 | 07002-12434 | O-ring | 11609- | |
| 12 | 01010-82465 | Bolt | 11609- | |
| 13 | 01643-32460 | Washer | 11609- | |
| 14 | 154-27-72350 | Collar | 11609- | |
| 15 | 154-09-71140 | Bearing | 11609- | |
| 16 | 154-27-72340 | Holder | 11609- | |
| 17 | 01010-81645 | Bolt | 11609- | |
| 17 | 154-27-00020 | Floating Seal Assembly | 11609- | |
| 18 | Seal | 11609- | ||
| 19 | O-ring | 11609- |
