| Item | Part No. | Part Name | Qty | Serial No. |
| 195-27-00661 | FINAL DRIVE ASS'Y | 18349- | ||
| 195-27-00436 | FINAL DRIVE ASS'Y | 17743-18348 | ||

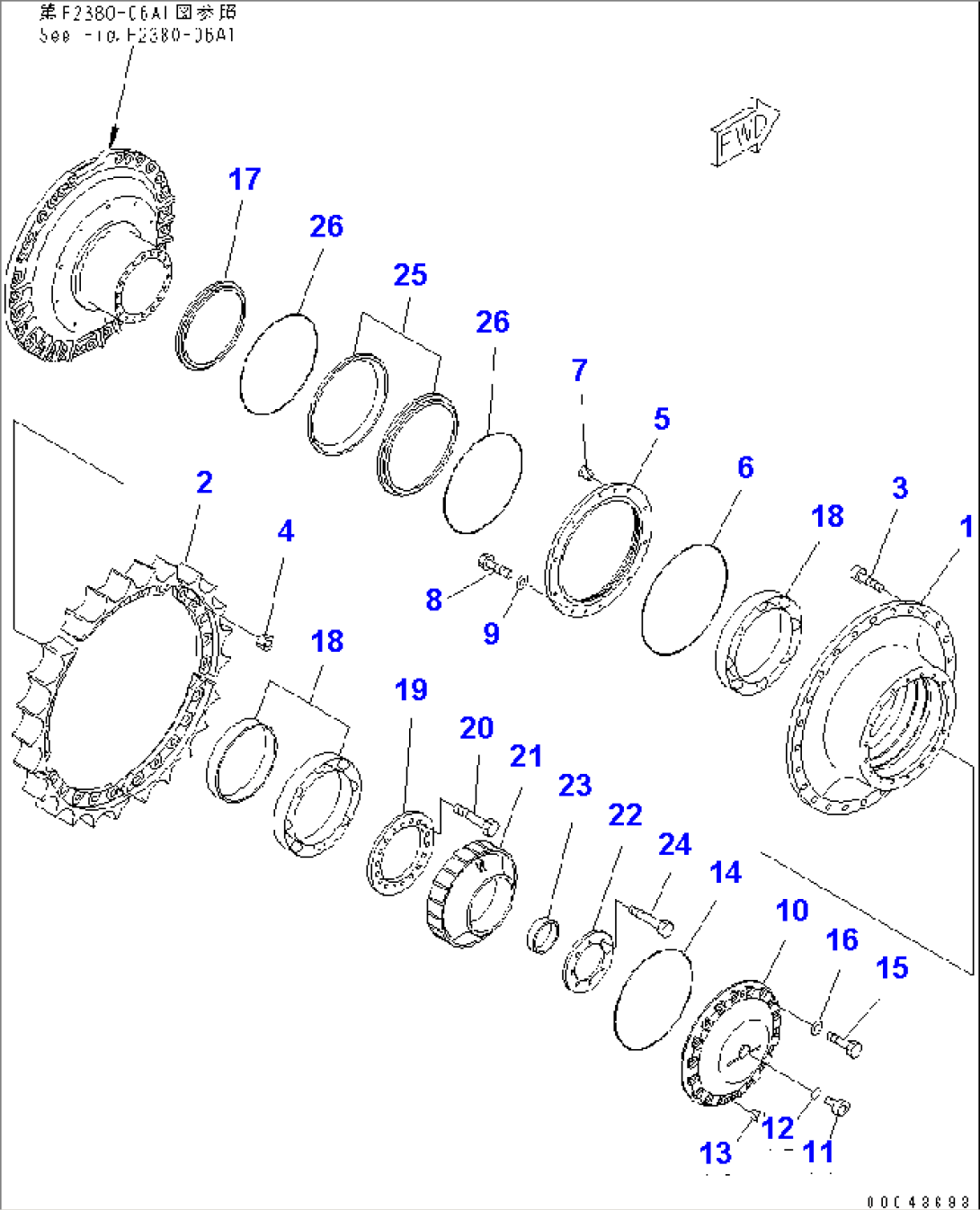

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2380-04A1 TO 06A1. | ||||
| 1 | 195-27-34111 | HUB | 17743- | |
| 2 | 195-27-33111 | TEETH | 17743- | |
| 3 | 195-27-33130 | BOLT | 17743- | |
| 4 | 195-27-33141 | NUT | 17743- | |
| 5 | 195-27-34340 | COVER | 17743- | |
| 6 | 07000-45500 | O-RING | 17743- | |
| 7 | 07049-01215 | PLUG | 17743- | |
| 8 | 01010-81230 | BOLT | 17743- | |
| 9 | 01643-31232 | WASHER | 17743- | |
| 10 | 195-27-34120 | COVER | 17743- | |
| 11 | 198-27-31420 | PLUG | 17743- | |
| 12 | 07002-53634 | O-RING | 17743- | |
| 13 | 07049-01620 | PLUG | 17743- | |
| 14 | 07000-45455 | O-RING | 17743- | |
| 15 | 01010-81650 | BOLT | 17743- | |
| 16 | 01643-31645 | WASHER | 17743- | |
| 17 | 195-27-34171 | COLLAR | 17743- | |
| 18 | 195-09-18410 | BEARING | 17743- | |
| 19 | 195-27-31390 | HOLDER | 17743- | |
| 20 | 01010-81650 | BOLT | 17743- | |
| 21 | 195-27-31581 | HUB | 17743- | |
| 22 | 195-27-34280 | PLATE | 17743- | |
| 23 | 195-27-34270 | SPACER | 17743- | |
| 24 | 01010-81635 | BOLT | 17743- | |
| 195-27-00201 | FLOATING SEAL ASS'Y | 17743- | ||
| 25 | \6\ | SEAL | 17743- | |
| 26 | \6\ | O-RING | 17743- |
