| Item | Part No. | Part Name | Qty | Serial No. |
| 154-27-00353 | FINAL DRIVE ASS'Y | 10653- | ||
| 154-27-00352 | FINAL DRIVE ASS'Y | 10616- | ||
| 154-27-00351 | FINAL DRIVE ASS'Y | 10001-10615 | ||

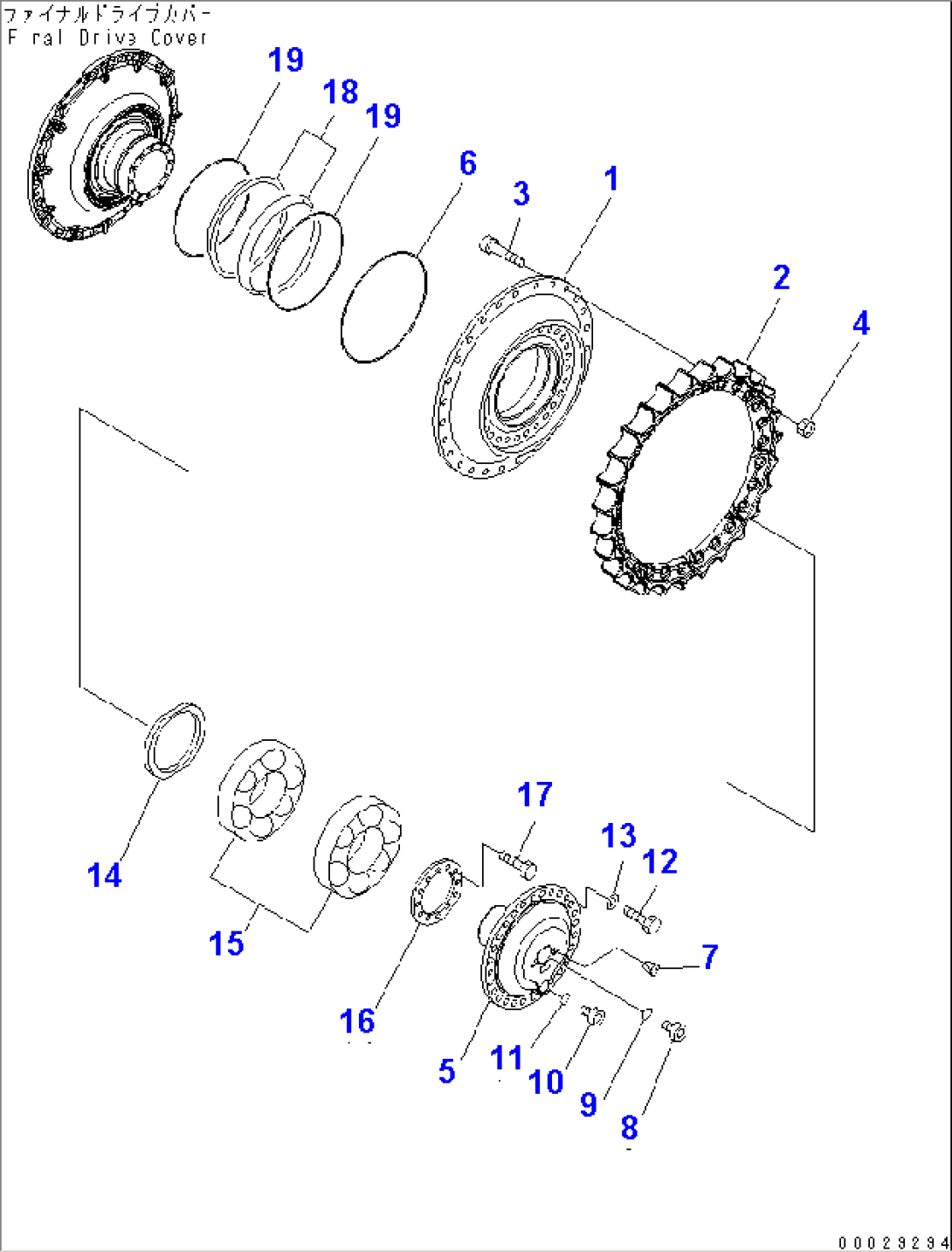

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2380-01A0 T0 F2380-03A0. | ||||
| 1 | 154-27-72182 | HUB | 10616- | |
| 1 | 154-27-72181 | HUB | 10001-10615 | |
| 2 | 154-27-71630 | TEETH | 10001- | |
| 3 | 155-27-12181 | BOLT | 10001- | |
| 4 | 01803-12228 | NUT | 10001- | |
| 5 | 154-27-72430 | SHAFT | 10001- | |
| 6 | 07000-15405 | O-RING | 10001- | |
| 7 | 07049-01215 | PLUG | 10001- | |
| 8 | 07044-13620 | PLUG | 10001- | |
| 9 | 07002-13634 | O-RING | 10001- | |
| 10 | 07044-12412 | PLUG | 10001- | |
| 11 | 07002-12434 | O-RING | 10001- | |
| 12 | 01010-82465 | BOLT | 10001- | |
| 13 | 01643-32460 | WASHER | 10001- | |
| 14 | 154-27-72350 | COLLAR | 10001- | |
| 15 | 154-09-71140 | BEARING | 10001- | |
| 16 | 154-27-72340 | HOLDER | 10001- | |
| 17 | 01010-81645 | BOLT | 10001- | |
| 154-27-00020 | FLOATING SEAL ASS'Y | 10653- | ||
| 423-33-00020 | FLOATING SEAL ASS'Y | 10001-10652 | ||
| 18 | \6\ | SEAL | 10653- | |
| 18 | \6\ | SEAL | 10001-10652 | |
| 19 | \6\ | O-RING | 10653- | |
| 19 | \6\ | O-RING | 10001-10652 |
