| Item | Part No. | Part Name | Qty | Serial No. |
| 13Y-27-10401 | Final Drive Assembly | 31848- | ||
| 13Y-27-10400 | Final Drive Assembly | 30001-31847 | ||
| 1 | 134-27-15210 | Tooth | 30001- | |
| 2 | 09203-21865 | Bolt, Sprocket Teeth | 30001- | |
| 3 | 01803-01824 | Nut | 30001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D61exi 23 s/n 30001 up
- Power transmitting system
- Final drive, tooth, r.h. (#30001 )
Поиск по каталогу

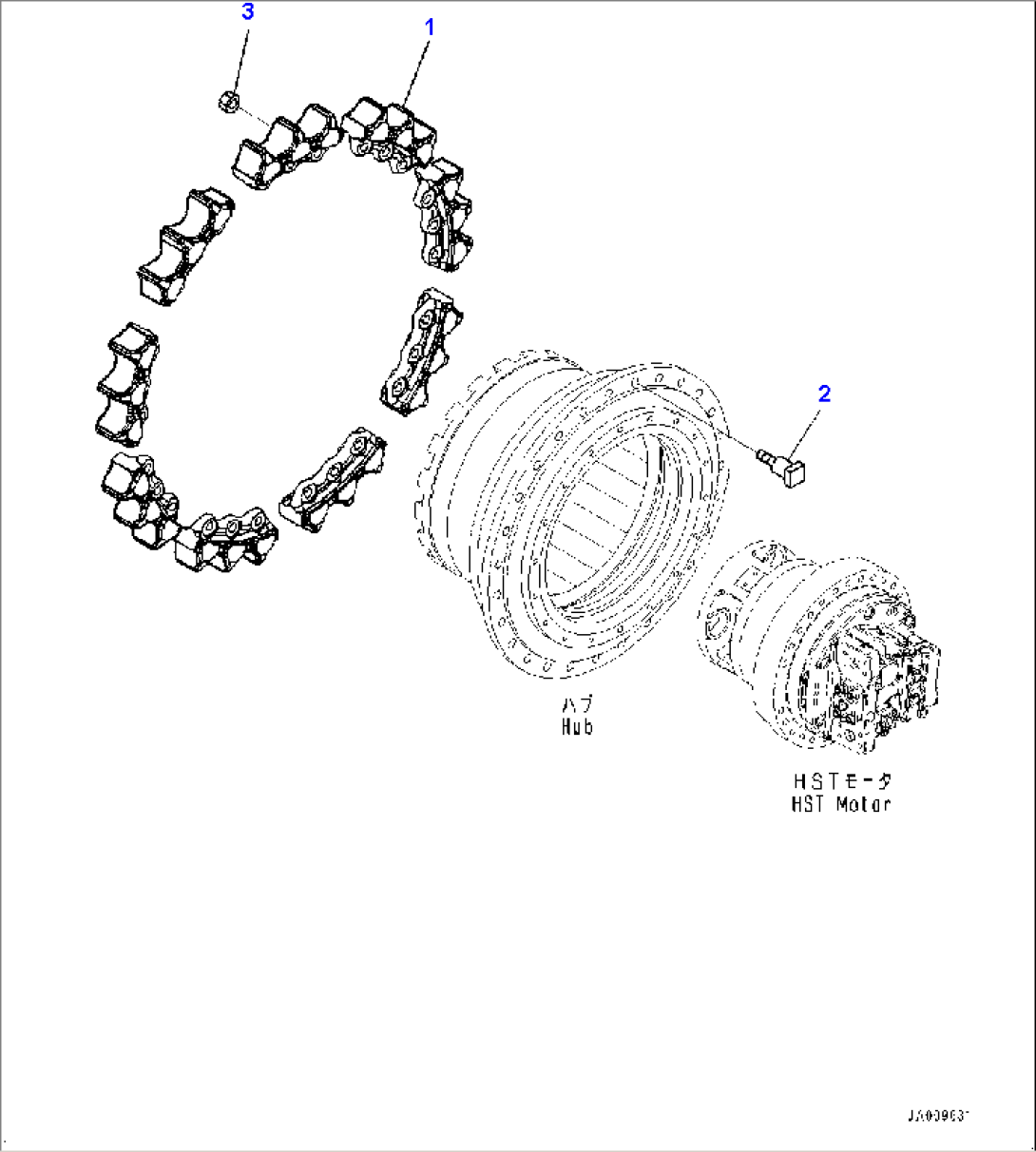

Final Drive, Tooth, R.H. (#30001-)
