| Item | Part No. | Part Name | Qty | Serial No. |
| (706-88-00150) | MOTOR ASS'Y | K30007- | ||
| (706-88-00112) | MOTOR ASS'Y | K30006-K30006 | ||
| (706-88-00110) | MOTOR ASS'Y | K30001-K30005 | ||

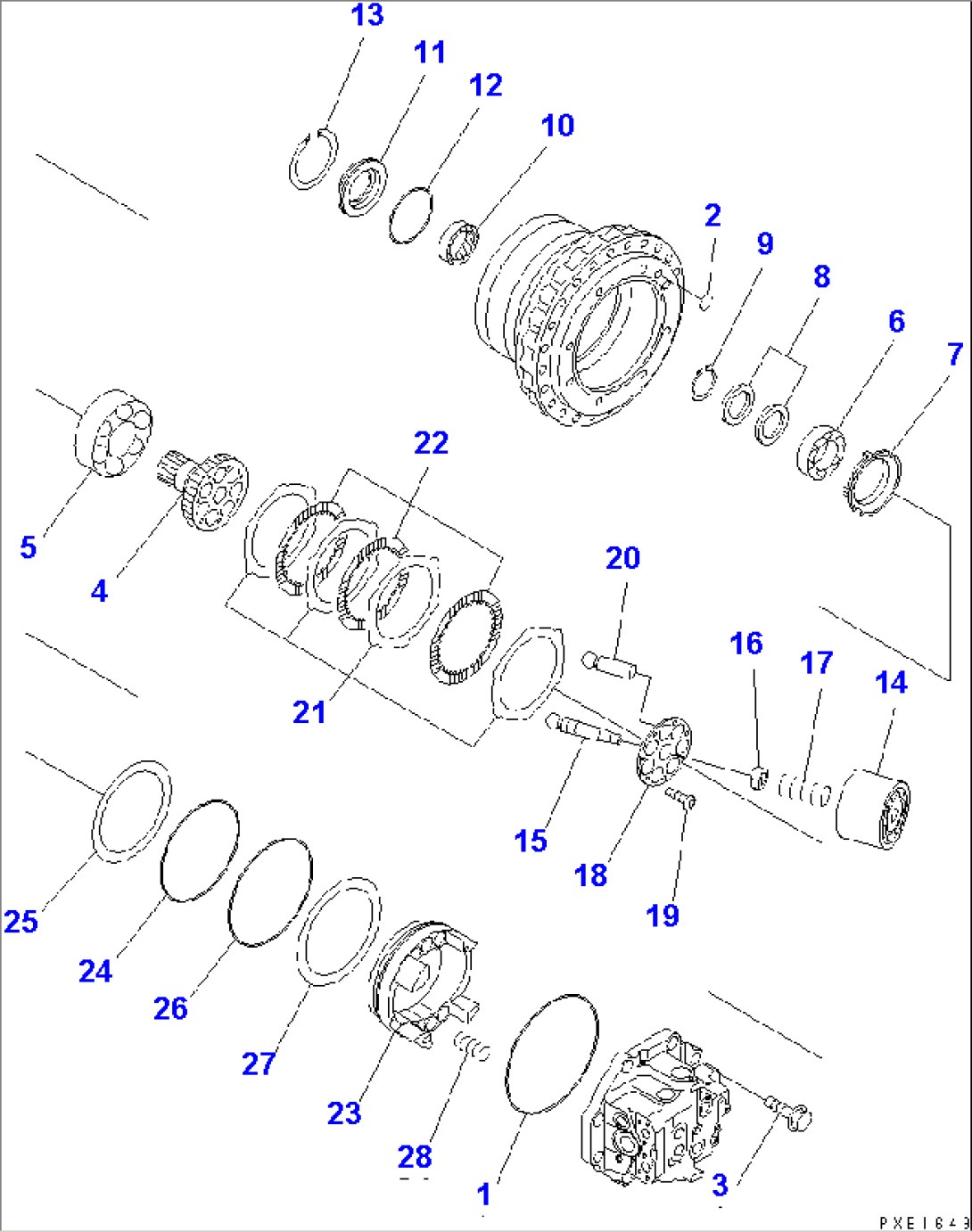

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.P1210-51A0 TO P1210-53A0. | ||||
| 1 | (\7\706-88-40370) | O-RING | K30001- | |
| 2 | (\7\07000-12012) | O-RING | K30001- | |
| 3 | (\7\706-88-40310) | BOLT | K30001- | |
| 4 | (\7\706-88-40660) | SHAFT,DRIVE | K30001- | |
| 5 | (\7\706-88-40880) | BEARING | K30001- | |
| 6 | (\7\706-88-40890) | BEARING | K30001- | |
| 7 | (\7\706-88-40810) | RETAINER | K30001- | |
| 8 | (\7\706-88-05010) | SPACER KIT | K30001- | |
| \6\ | SPACER¤ 1.6MM | K30001- | ||
| \6\ | SPACER¤ 1.7MM | K30001- | ||
| \6\ | SPACER¤ 1.8MM | K30001- | ||
| 9 | (\7\04064-07525) | RING,SNAP | K30001- | |
| 10 | 708-8K-12141 | SEAL,OIL | K30001- | |
| 11 | 706-88-40710 | HOUSING | K30001- | |
| 12 | 07000-02135 | O-RING | K30001- | |
| 13 | 04071-00140 | RING,SNAP | K30001- | |
| 14 | (\7\706-88-40090) | BLOCK,CYLINDER | K30001- | |
| 15 | (\7\706-88-40080) | SHAFT,CENTER | K30001- | |
| 16 | (\7\706-88-40130) | RING,CENTER | K30001- | |
| 17 | (\7\706-88-40060) | SPRING | K30001- | |
| 706-88-05020 | RETAINER KIT | K30001- | ||
| 18 | (\7\706-88-40260) | RETAINER | K30001- | |
| 19 | (\7\708-23-12350) | SCREW | K30001- | |
| 20 | (\7\706-88-40160) | PISTON SUB ASS'Y | K30006- | |
| (\7\706-88-40161) | PISTON SUB ASS'Y | K30001-K30005 | ||
| 21 | (\7\706-88-90140) | PLATE | K30001- | |
| 22 | (\7\706-88-90150) | DISC | K30001- | |
| 23 | (\7\706-88-90180) | PISTON,BRAKE | K30001- | |
| 24 | (\7\07000-15240) | O-RING | K30001- | |
| 25 | (\7\706-88-90130) | RING,BACK-UP | K30001- | |
| 26 | (\7\07000-15270) | O-RING | K30001- | |
| 27 | (\7\07001-05270) | RING,BACK-UP | K30001- | |
| 28 | (\7\706-88-90410) | SPRING | K30001- |
