| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (21S-60-24100) | MOTOR ASS'Y,TRAVEL | 15001- | |
| 2 | 01252-41020 | BOLT | 15001- | |
| 3 | 20M-62-11310 | NIPPLE | 15001- | |
| 4 | 07000-12014 | O-RING | 15001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc03 2 s/n 15001 up (for fki)
- Travel and lower piping
- Final drive (travel motor mounting)
Поиск по каталогу

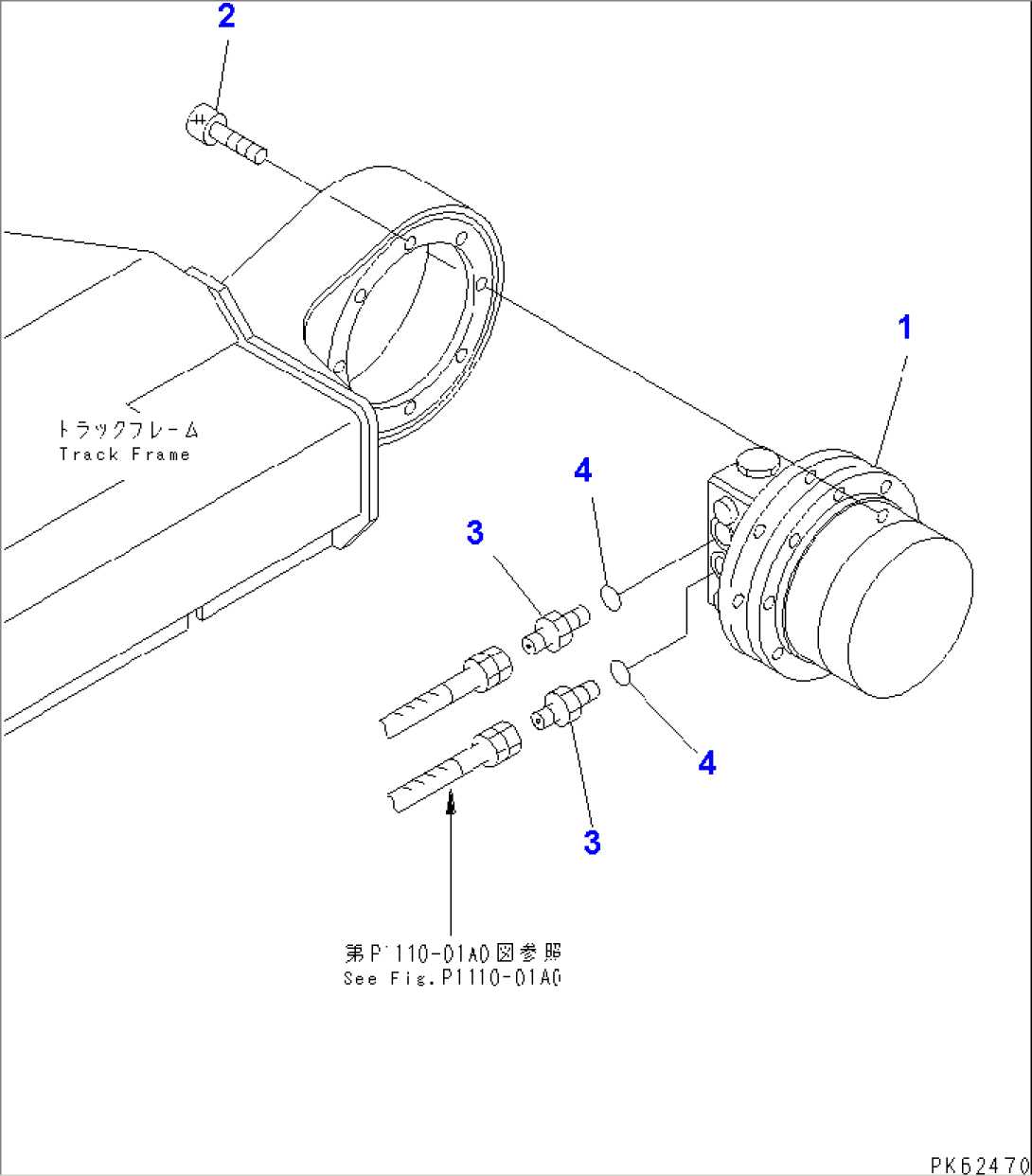

FINAL DRIVE (TRAVEL MOTOR MOUNTING)
