| Item | Part No. | Part Name | Qty | Serial No. |

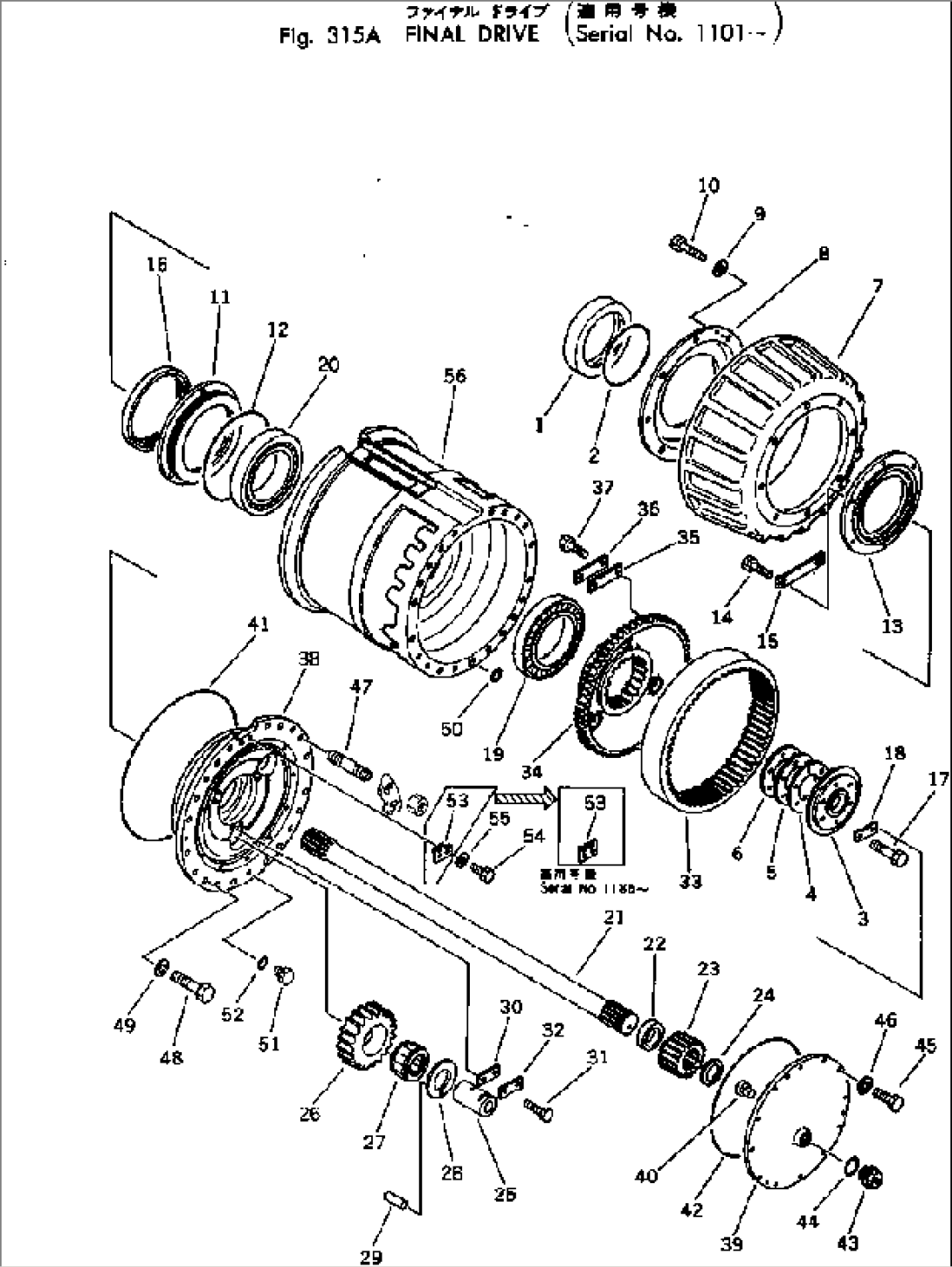

| 565-22-12002 | FINAL DRIVE ASS'Y | 1101- | ||
| 1 | 565-22-11560 | RING | 1002- | |
| 2 | 07000-05170 | O-RING | 1002- | |
| 3 | 565-22-14451 | RETAINER | 1009- | |
| 565-22-00121 | SHIM ASS'Y | 1009- | ||
| 4 | \6\ | SHIM, 1.0MM | 1009- | |
| 5 | \6\ | SHIM, 0.3MM | 1009- | |
| 6 | \6\ | SHIM, 0.2MM | 1009- | |
| 7 | 565-27-16220 | DRUM | 1002- | |
| 8 | 565-22-14721 | COVER | 1173- | |
| 8 | \0\565-22-14720 | COVER | 1002-1172 | |
| 9 | 01643-32060 | WASHER | 1215- | |
| 9 | \0\565-27-16230 | PLATE (KIT) | 1002-1214 | |
| 10 | 01018-22070 | BOLT | 1215- | |
| 10 | \0\01018-32065 | BOLT | 1002-1214 | |
| 11 | 565-22-11810 | COVER | 1002- | |
| 12 | 07000-05260 | O-RING (KIT) | 1002- | |
| 13 | 565-22-11820 | COVER | 1002- | |
| 14 | 01010-31235 | BOLT | 1002- | |
| 15 | 565-22-11830 | PLATE,LOCK (KIT) | 1002- | |
| 16 | 565-22-11570 | SEAL (KIT) | 1002- | |
| 17 | 01010-31645 | BOLT | 1009- | |
| 18 | 565-22-14491 | PLATE (KIT) | 1009- | |
| 19 | 06000-32032 | BEARING,OUTER | 1002- | |
| 20 | 06000-32034 | BEARING,INNER | 1002- | |
| 21 | 567-22-12411 | SHAFT | 1173- | |
| 21 | \0\567-22-12410 | SHAFT | 1002-1172 | |
| 22 | \0\565-22-14441 | BUSHING | 1215- | |
| 22 | \0\565-22-14440 | BUSHING | 1002-1214 | |
| 23 | 565-22-15133 | GEAR | 1002- | |
| 24 | 04064-06525 | RING | 1002- | |
| 25 | 565-22-14213 | SHAFT | 1002- | |
| 26 | 565-22-14223 | GEAR | 1002- | |
| 27 | 565-22-14231 | BEARING | 1002- | |
| 28 | 565-22-14262 | WASHER | 1053- | |
| 29 | 565-22-11991 | PIN | 1276- | |
| 29 | \0\565-22-11990 | PIN | 1215-1275 | |
| 29 | \0\565-99-81190 | PIN | 1053-1214 | |
| 30 | 04082-00306 | LOCK | 1002- | |
| 31 | 01010-31225 | BOLT | 1002- | |
| 32 | 565-22-12550 | LOCK (KIT) | 1002- | |
| 33 | 565-22-14421 | GEAR | 1002- | |
| 34 | 565-22-14412 | HUB | 1002- | |
| 35 | 566-22-12560 | PLATE,LOCK | 1002- | |
| 36 | 566-22-12570 | PLATE,LOCK (KIT) | 1002- | |
| 37 | 01010-30820 | BOLT | 1002- | |
| 38 | 565-22-14117 | CARRIER | 1053- | |
| 39 | 565-22-14174 | COVER | 1002- | |
| 40 | 281-22-12422 | BUTTON | 1002- | |
| 41 | 07000-05465 | O-RING (KIT) | 1002- | |
| 42 | 07000-05355 | O-RING (KIT) | 1002- | |
| 43 | 07044-13620 | PLUG | 1002- | |
| 44 | 07002-03634 | O-RING (KIT) | 1002- | |
| 45 | 01010-51230 | BOLT | 1002- | |
| 46 | 01602-01236 | WASHER | 1002- | |
| 47 | 566-22-12730 | STUD | 1002- | |
| 48 | 01010-32090 | BOLT | 1002- | |
| 49 | 01602-02060 | WASHER | 1002- | |
| 50 | 07000-02021 | O-RING (KIT) | 1002- | |
| 51 | 07040-11612 | PLUG | 1002- | |
| 52 | 07002-01623 | O-RING (KIT) | 1002- | |
| 53 | 566-22-12620 | PLATE | 1185- | |
| 53 | \0\565-22-14660 | PLATE | 1002-1184 | |
| 54 | 01010-31220 | BOLT | 1002- | |
| 55 | 01602-21236 | WASHER | 1002- | |
| 56 | 565-22-14614 | HUB,REAR | 1101- |
