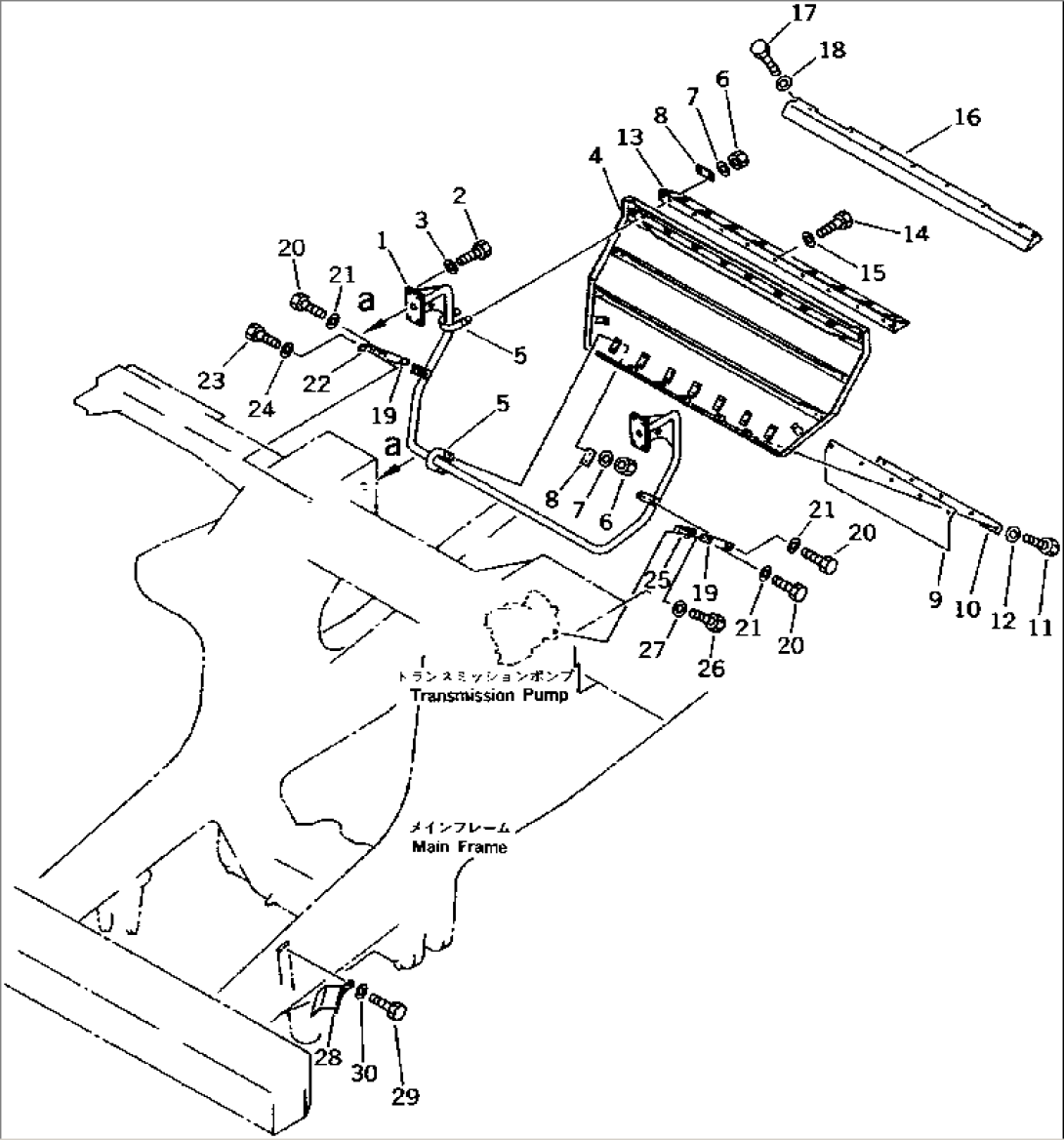

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-89-62542 | STAY | 1001- | |
| 2 | 01010-51240 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 4 | 561-89-62513 | COVER | 1001- | |
| 5 | 07283-24354 | CLIP | 1001- | |
| 6 | 01599-01011 | NUT | 1001- | |
| 7 | 01643-31032 | WASHER | 1001- | |
| 8 | 561-89-62830 | PLATE | 1001- | |
| 9 | 561-89-62811 | GUARD | .- | |
| 9 | \0\561-89-62810 | GUARD | 1001-. | |
| 10 | 561-89-62820 | PLATE | 1001- | |
| 11 | 01010-51025 | BOLT | 1001- | |
| 12 | 01643-31032 | WASHER | 1001- | |
| 13 | 561-89-62920 | COVER | 1001- | |
| 14 | 01010-51025 | BOLT | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 561-89-6B950 | COVER | 1002- | |
| 16 | 561-89-62950 | COVER | 1001-1001 | |
| 16 | 561-84-64250 | COVER,(FOR EXHAUST SYSTEM) | 1001- | |
| 17 | 01010-51020 | BOLT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | 561-89-62580 | STAY | 1001- | |
| 20 | 01010-51240 | BOLT | 1001- | |
| 21 | 01643-31232 | WASHER | 1001- | |
| 22 | 561-89-62680 | BRACKET | 1001- | |
| 23 | 01010-52475 | BOLT | 1001- | |
| 24 | 01643-32460 | WASHER | 1001- | |
| 25 | 561-89-62660 | BRACKET | 1001- | |
| 26 | 01010-51230 | BOLT | 1001- | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 561-89-62860 | COVER | 1001- | |
| 29 | 01010-51235 | BOLT | 1001- | |
| 30 | 01643-31232 | WASHER | 1001- |
