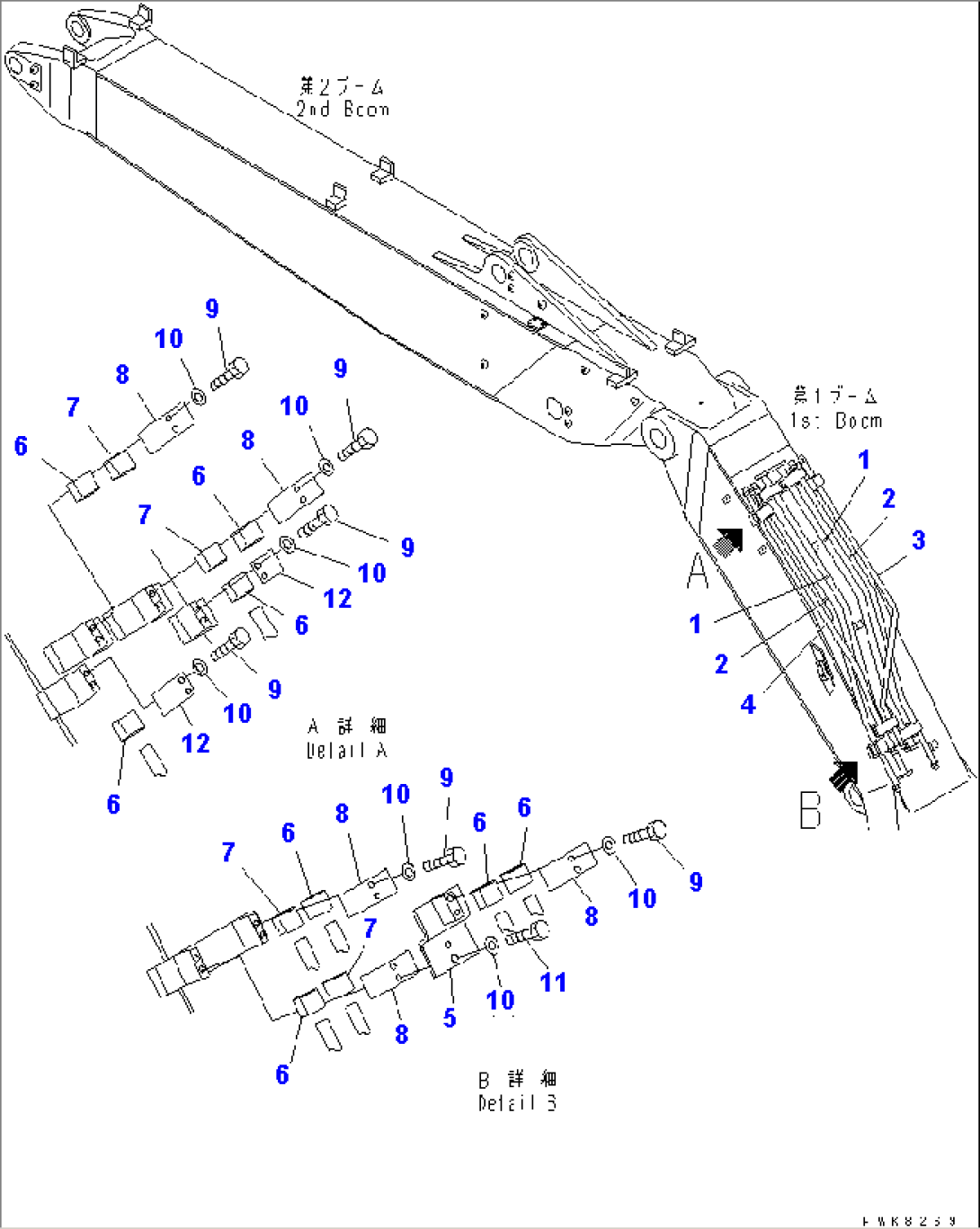

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20G-62-K6230 | TUBE | K32001- | |
| 2 | 20G-62-K6260 | TUBE | K32001- | |
| 3 | 20G-62-K6270 | TUBE | K32001- | |
| 4 | 20G-62-K6280 | TUBE | K32001- | |
| 5 | 20G-62-K6250 | BRACKET | K32001- | |
| 6 | 203-62-58810 | CUSHION | K32001- | |
| 7 | 21K-62-35270 | CUSHION | K32001- | |
| 8 | 203-70-53381 | PLATE | K32001- | |
| 9 | 01010-81025 | BOLT | K32001- | |
| 10 | 01643-31032 | WASHER | K32001- | |
| 11 | 01010-81030 | BOLT | K32001- | |
| 12 | 203-70-53391 | PLATE | K32001- |
