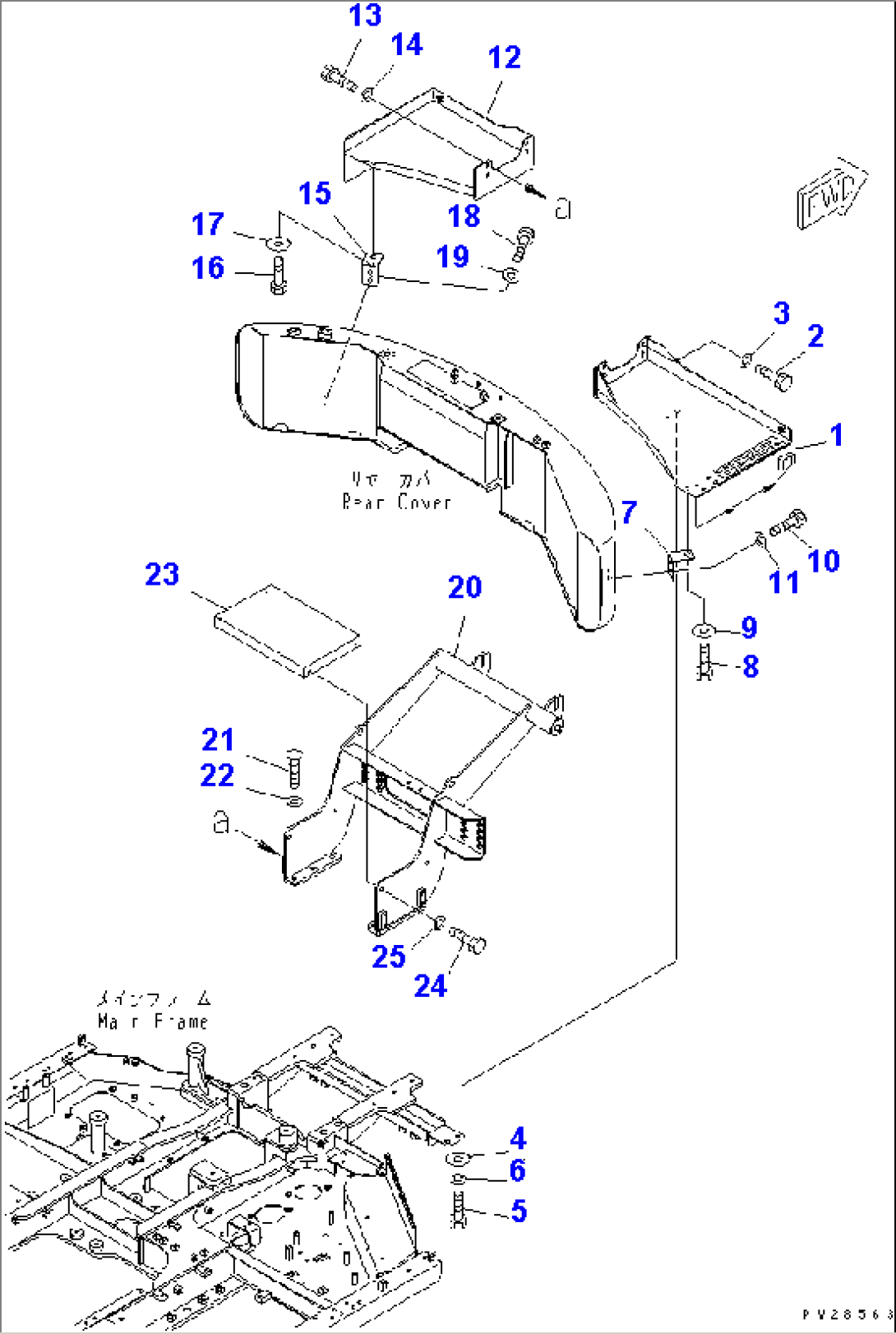

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8230-54-1122 | FLOOR | 1301- | |
| 2 | 01010-81225 | BOLT | 1301- | |
| 3 | 01643-31232 | WASHER | 1301- | |
| 4 | 175-54-34170 | WASHER | 1301- | |
| 5 | 01010-81225 | BOLT | 1301- | |
| 6 | 01643-31232 | WASHER | 1301-1316 | |
| 7 | 8230-54-1151 | BRACKET | 1301- | |
| 8 | 01010-81225 | BOLT | 1301- | |
| 9 | 20Y-54-12670 | WASHER | 1301- | |
| 10 | 01010-81225 | BOLT | 1301- | |
| 11 | 01643-31232 | WASHER | 1301- | |
| 12 | 8230-54-1131 | FLOOR | 1301- | |
| 13 | 01010-81225 | BOLT | 1301- | |
| 14 | 01643-31232 | WASHER | 1301- | |
| 15 | 8230-54-1151 | BRACKET | 1301- | |
| 16 | 01010-81225 | BOLT | 1301- | |
| 17 | 20Y-54-12670 | WASHER | 1301- | |
| 18 | 01010-81225 | BOLT | 1301- | |
| 19 | 01643-31232 | WASHER | 1301- | |
| 20 | 8230-54-1363 | BRACKET | 1313- | |
| 20 | \0\8230-54-1362 | BRACKET | 1301-1312 | |
| 21 | 01010-81645 | BOLT | 1301- | |
| 22 | 01643-31645 | WASHER | 1301- | |
| 23 | 8230-54-1371 | COVER | 1301- | |
| 24 | 01010-81225 | BOLT | 1301- | |
| 25 | 01643-31232 | WASHER | 1301- |
