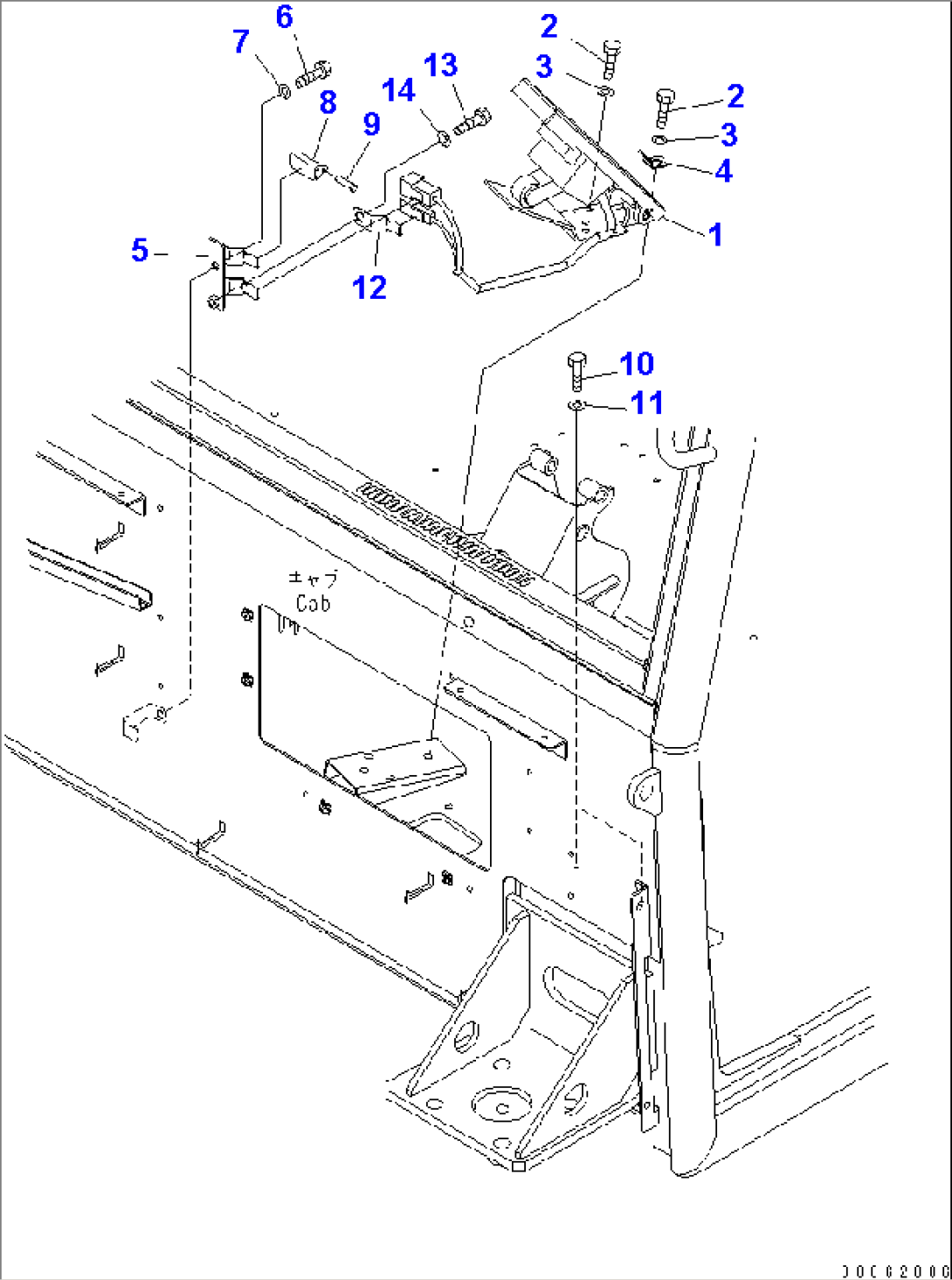

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-07021) | PEDAL ASS'Y | 2462- | |
| 1 | (\2\702-16-07020) | PEDAL ASS'Y | (2462-2608) | |
| 1 | (\0\729-14-12000) | PEDAL | 2001-2461 | |
| 2 | 01010-80820 | BOLT | 2001- | |
| 3 | 01643-30823 | WASHER | 2001- | |
| 4 | 42C-54-22330 | PLATE | 2462- | |
| 4 | \0\426-43-31211 | PLATE | 2001-2461 | |
| 5 | 56B-06-26371 | BRACKET | 2001- | |
| 6 | 01010-80816 | BOLT | 2001- | |
| 7 | 01643-30823 | WASHER | 2001- | |
| 8 | 08192-23810 | CONNECTOR | 2001- | |
| 9 | 08191-00770 | PLUG | 2001- | |
| 10 | 01010-80816 | BOLT | 2001- | |
| 11 | 01643-30823 | WASHER | 2001- | |
| 12 | 08193-20010 | CLIP | 2001- | |
| 13 | 01010-80816 | BOLT | 2001- | |
| 14 | 01643-30823 | WASHER | 2001- |
