| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-07-22190 | DUCT | 2207- | |
| 1 | 56E-07-22191 | DUCT | 2001-2206 | |
| 2 | 56E-07-22280 | SEAL | 2001- | |
| 3 | 56E-07-22291 | SEAL | 2001- | |
| 4 | 01010-80616 | BOLT | 2001- | |
| 5 | 01643-30623 | WASHER | 2001- | |
| 6 | 20Y-979-6261 | FILTER | 2001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2 s/n 2001 2218 (ecot3) (for eu)
- Operator's compartment and control system
- Floor (air conditioner duct) (filter)(#2001 )
Поиск по каталогу

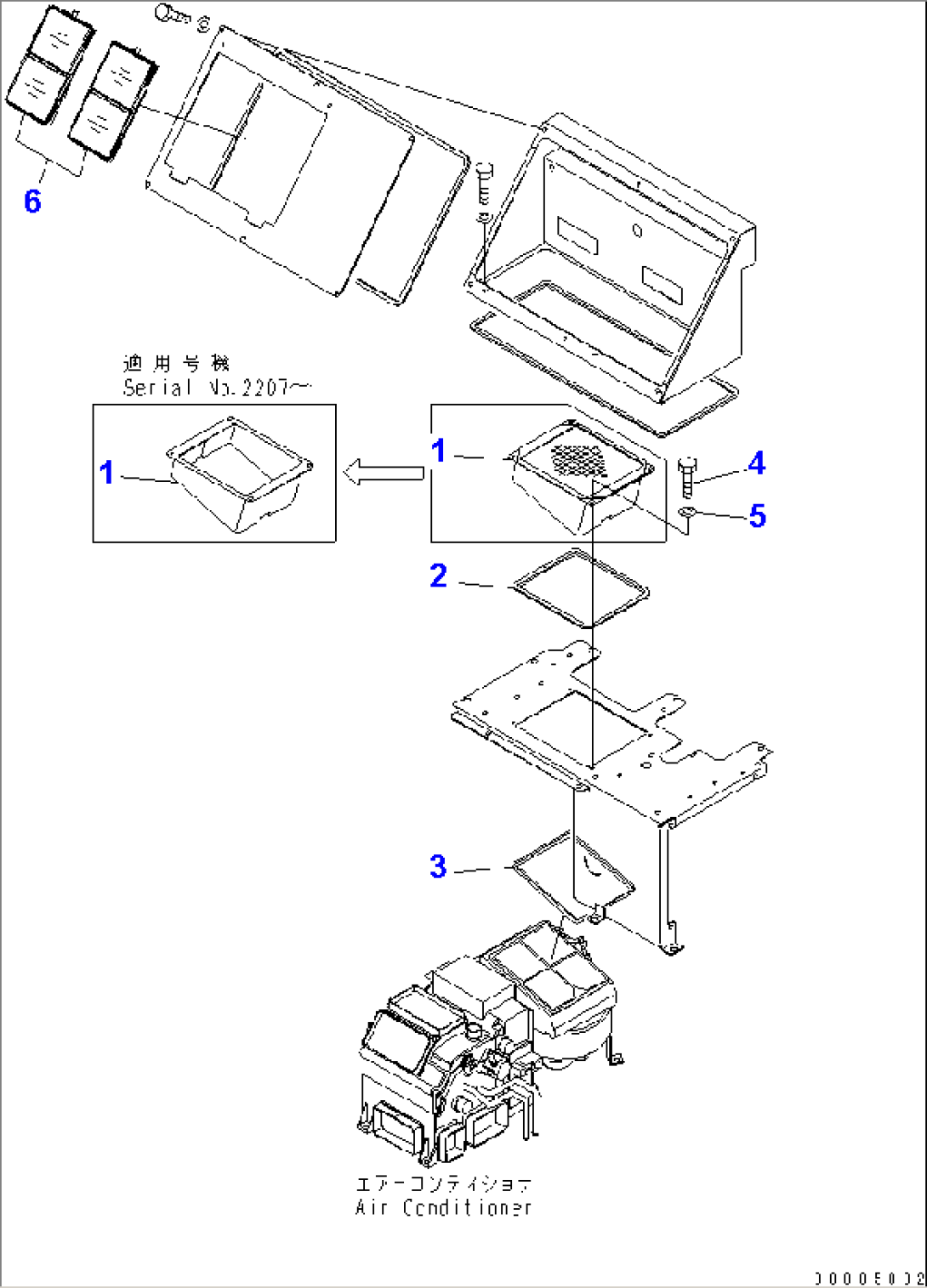

FLOOR (AIR CONDITIONER DUCT) (FILTER)(#2001-)
