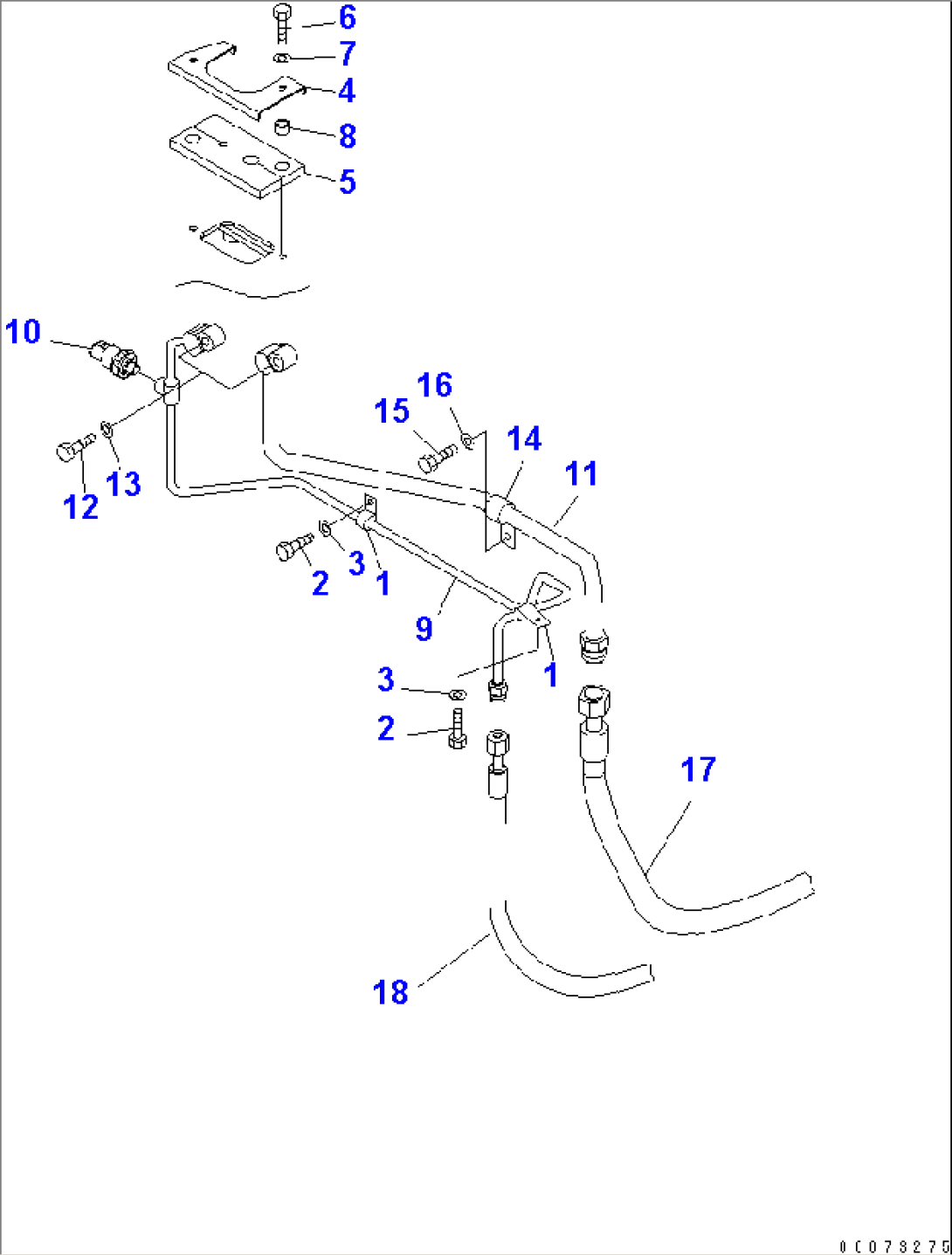

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08036-00814 | CLIP | A89001- | |
| 2 | 01010-81020 | BOLT | A89001- | |
| 3 | 01643-31032 | WASHER | A89001- | |
| 4 | 418-S62-3350 | PLATE | A89001- | |
| 5 | 421-07-23980 | SHEET | A89001- | |
| 6 | 01010-80630 | BOLT | A89001- | |
| 7 | 01643-30623 | WASHER | A89001- | |
| 8 | 421-54-13850 | SPACER | A89001- | |
| 9 | 418-S62-3211 | TUBE | A89001- | |
| 10 | 421-07-21810 | SWITCH | A89001- | |
| 11 | 418-S62-3221 | TUBE | A89001- | |
| 12 | 01010-80630 | BOLT | A89001- | |
| 13 | 01643-30623 | WASHER | A89001- | |
| 14 | 04434-51610 | CLIP | A89001- | |
| 15 | 01010-81020 | BOLT | A89001- | |
| 16 | 01643-31032 | WASHER | A89001- | |
| 17 | HOSE,(SEE FIG. K0711-01A0) | A89001- | ||
| 18 | HOSE,(SEE FIG. K0711-01A0) | A89001- |
