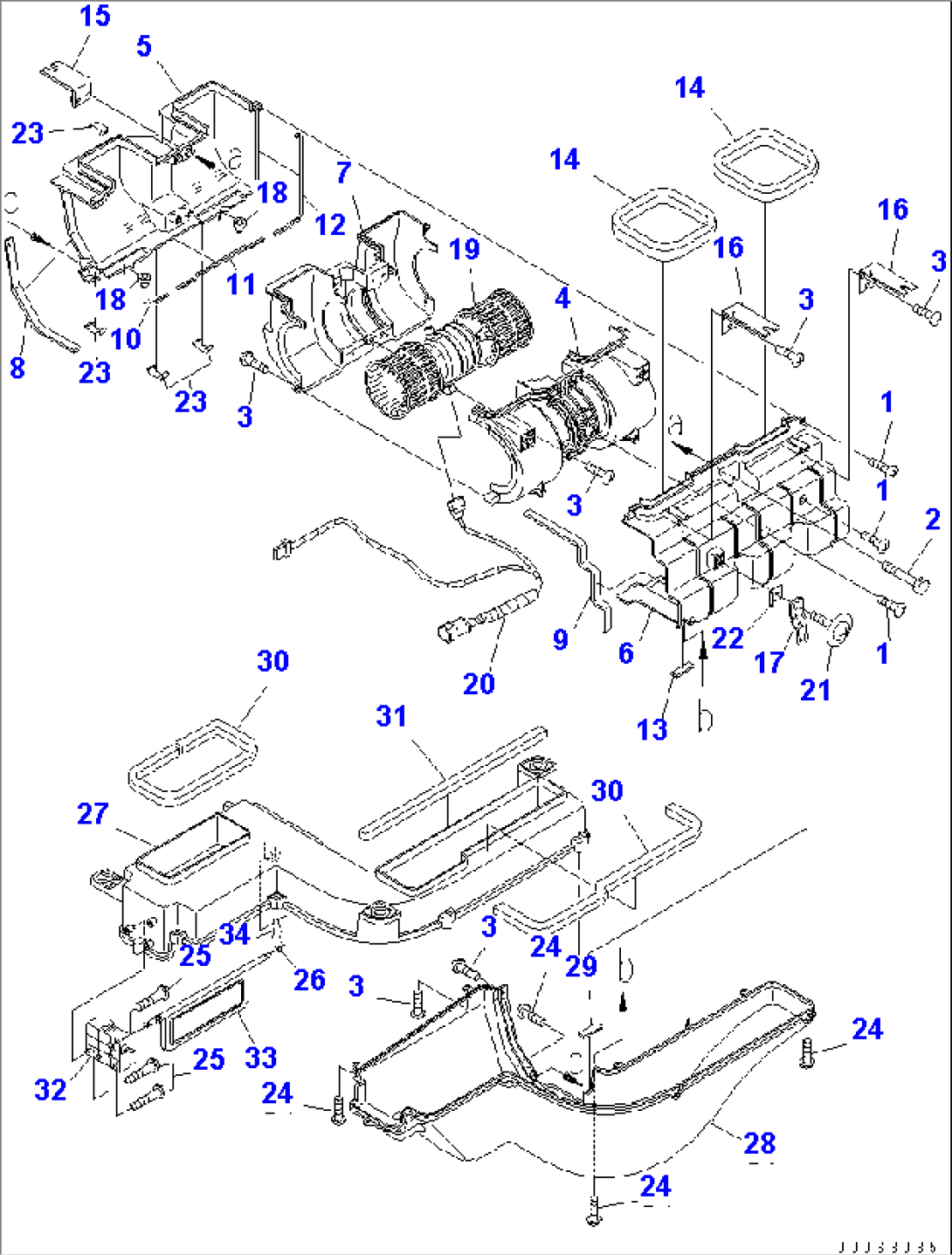

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-07-81101) | AIR CONDITIONER KIT | 3001- | ||
| (\2\566-07-81100) | AIR CONDITIONER KIT | (3001-7474) | ||
| (561-07-81200) | BLOWER ASS'Y | 3001- | ||
| 1 | ANTB105160T1 | SCREW | 3001- | |
| 561-07-81121 | BLOWER ASS'Y | 3001- | ||
| 2 | ANBF00640DP1 | BOLT | 3001- | |
| 3 | ANTB105160T1 | SCREW | 3001- | |
| 4 | AN51153-40390 | CASE | 3001- | |
| 5 | AN51153-40490 | CASE | 3001- | |
| 6 | AN51153-40500 | CASE | 3001- | |
| 7 | AN51153-40510 | CASE | 3001- | |
| 8 | AN51191-58750 | PACKING | 3001- | |
| 9 | AN51191-58760 | PACKING | 3001- | |
| 10 | AN51191-59420 | PACKING | 3001- | |
| 11 | AN51191-59430 | PACKING | 3001- | |
| 12 | AN51191-59440 | PACKING | 3001- | |
| 13 | AN51191-59460 | PACKING | 3001- | |
| 14 | AN51194-53610 | PACKING | 3001- | |
| 15 | AN51240-12310 | BRACKET | 3001- | |
| 16 | AN51240-43460 | BRACKET | 3001- | |
| 17 | AN51259-41750 | BRACKET | 3001- | |
| 18 | AN51420-42920 | CAP | 3001- | |
| 19 | AN51500-10770 | MOTOR ASS'Y | 3001- | |
| 20 | AN51550-18800 | WIRING HARNESS | 3001- | |
| 21 | AN51852-40770 | SCREW | 3001- | |
| 22 | AN51855-42470 | SPACER | 3001- | |
| 23 | AN51870-40040 | CLAMP | 3001- | |
| 561-07-81131 | INTAKE ASS'Y | 3001- | ||
| 24 | ANTB105160T1 | SCREW | 3001- | |
| 25 | ANTN104300T1 | SCREW | 3001- | |
| 26 | ANWPA08000G1 | WASHER | 3001- | |
| 27 | AN51170-43820 | BOX | 3001- | |
| 28 | AN51170-43830 | BOX | 3001- | |
| 29 | AN51191-59460 | PACKING | 3001- | |
| 30 | AN51194-54460 | PACKING | 3001- | |
| 31 | AN51194-54480 | PACKING | 3001- | |
| 32 | AN51502-15130 | MOTOR ACTUATOR | 3001- | |
| 33 | AN51573-11910 | DAMPER ASS'Y | 3001- | |
| 34 | AN51575-40110 | PIN | 3001- |
