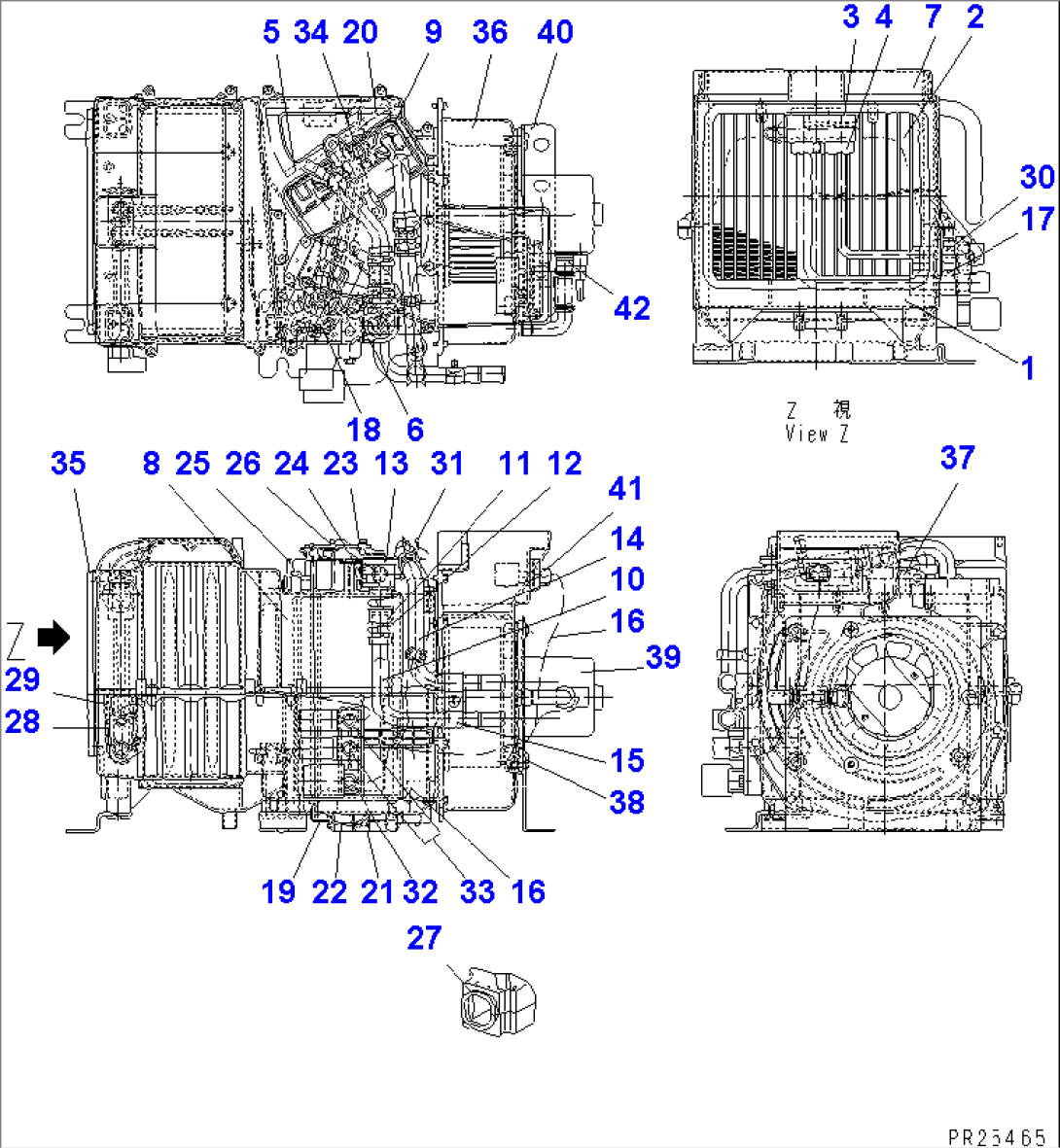

FLOOR (AIR CONDITIONER UNIT) (INNER PARTS)(#4001-4321)

FLOOR (AIR CONDITIONER UNIT) (INNER PARTS)(#4001-4321)
ItemPart No.Part NameQtySerial No.
561-07-61102AIR CONDITIONER4001-4321
1ND245420-6500CASE ASS'Y4001-4321
2ND447600-2340EVAPORATOR4001-@
3ND447500-1030VALVE,EXPANSION4001-4321
4ND446870-2320TUBE4001-@
5ND116730-0520DAMPER ASS'Y4001-@
6ND116730-0530DAMPER ASS'Y4001-@
7ND245420-3911CASE ASS'Y4001-4321
8ND116452-0561CASE,HEATER4001-4321
9ND116410-9680UNIT ASS'Y4001-4321
10ND116427-8540PIPE4001-4321
11ND7052-200600HOSE,WATER4001-@
12ND949351-0720CLAMP,HOSE4001-4321
13ND113600-9260VALVE ASS'Y,WATER4001-@
14ND116427-8550PIPE4001-4321
15ND246680-1111CLAMP,PIPING4001-@
16ND246440-5200WIRING HARNESS4001-@
17ND7009-040050PIPE,INSULATOR4001-@
18ND017732-3051LEVER,CONTROL4001-@
19ND017732-3041LEVER,CONTROL4001-@
20ND017732-3060LEVER,CONTROL4001-@
21ND146625-5040BUSHING4001-@
22ND116662-3780SHAFT4001-@
23ND246690-2930CLAMP4001-@
24ND116662-0590SHAFT4001-@
25ND063700-6580SERVO MOTOR ASS'Y4001-@
26ND146625-2630BUSHING4001-@
27ND146668-6710PACKING4001-@
28ND146984-4750GROMMET4001-@
29ND146642-7930PLATE4001-@
30ND7009-010050PIPE,INSULATOR4001-@
31ND246690-6740CLAMP4001-@
32ND017773-0140CLIP4001-@
33ND017773-0180CLIP4001-@
34ND017660-3490BRACKET4001-4321
35ND146668-2030PACKING4001-@
36ND116251-9192CASE4001-4321
37ND146638-9460PACKING4001-@
38ND146622-6880PACKING4001-@
39ND116340-2361MOTOR ASS'Y4001-@
40ND116471-7510BRACKET,CASE4001-@
41ND146810-9062RESISTOR4001-4321
42ND146651-1840PIPE4001-@
