| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09409-70000 | BELT¤ LAP | 7001- | |
| 2 | 56B-57-11310 | BRACKET | 7001- | |
| 3 | 01010-81230 | BOLT | 7001- | |
| 4 | 01580-11210 | NUT | 7001- | |
| 5 | 01643-31232 | WASHER | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd465 7 s/n 7001 up
- Operator's compartment and control system
- Floor (assistant seat) (assistant seat belt)
Поиск по каталогу

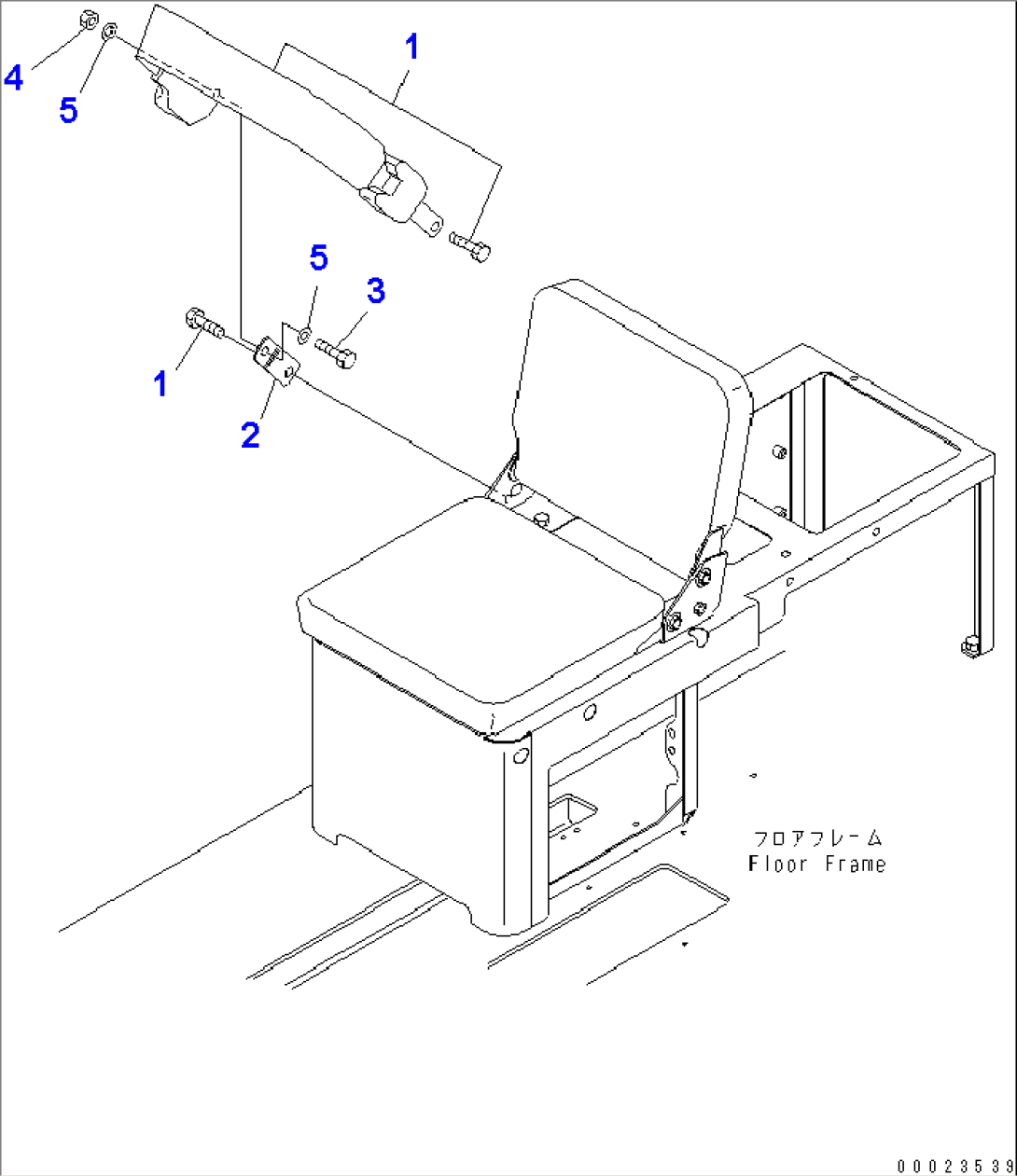

FLOOR (ASSISTANT SEAT) (ASSISTANT SEAT BELT)
