| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-32551 | TIMER | A89001- | |
| 2 | 417-06-36211 | WIRING HARNESS | A89001- | |
| 3 | 01010-80620 | BOLT | A89001- | |
| 4 | 01643-30623 | WASHER | A89001- | |
| 5 | 08041-01000 | FUSE, 10A | A89001- | |
| 6 | 08034-20823 | BAND | A89001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200pt 5l s/n a89001 up
- Operator's compartment and control system
- Floor (auxiliary steering timer and harness)
Поиск по каталогу

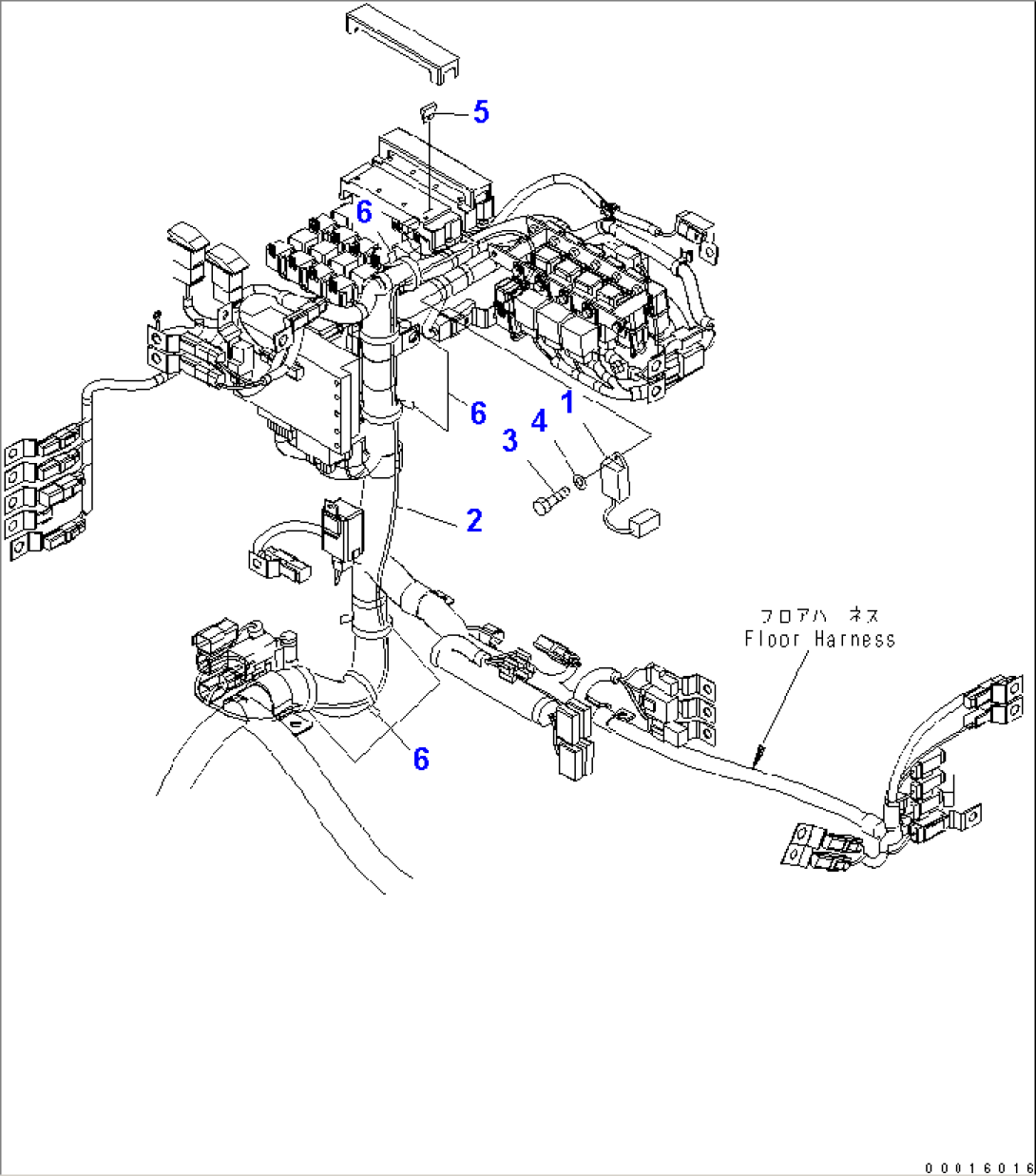

FLOOR (AUXILIARY STEERING TIMER AND HARNESS)
