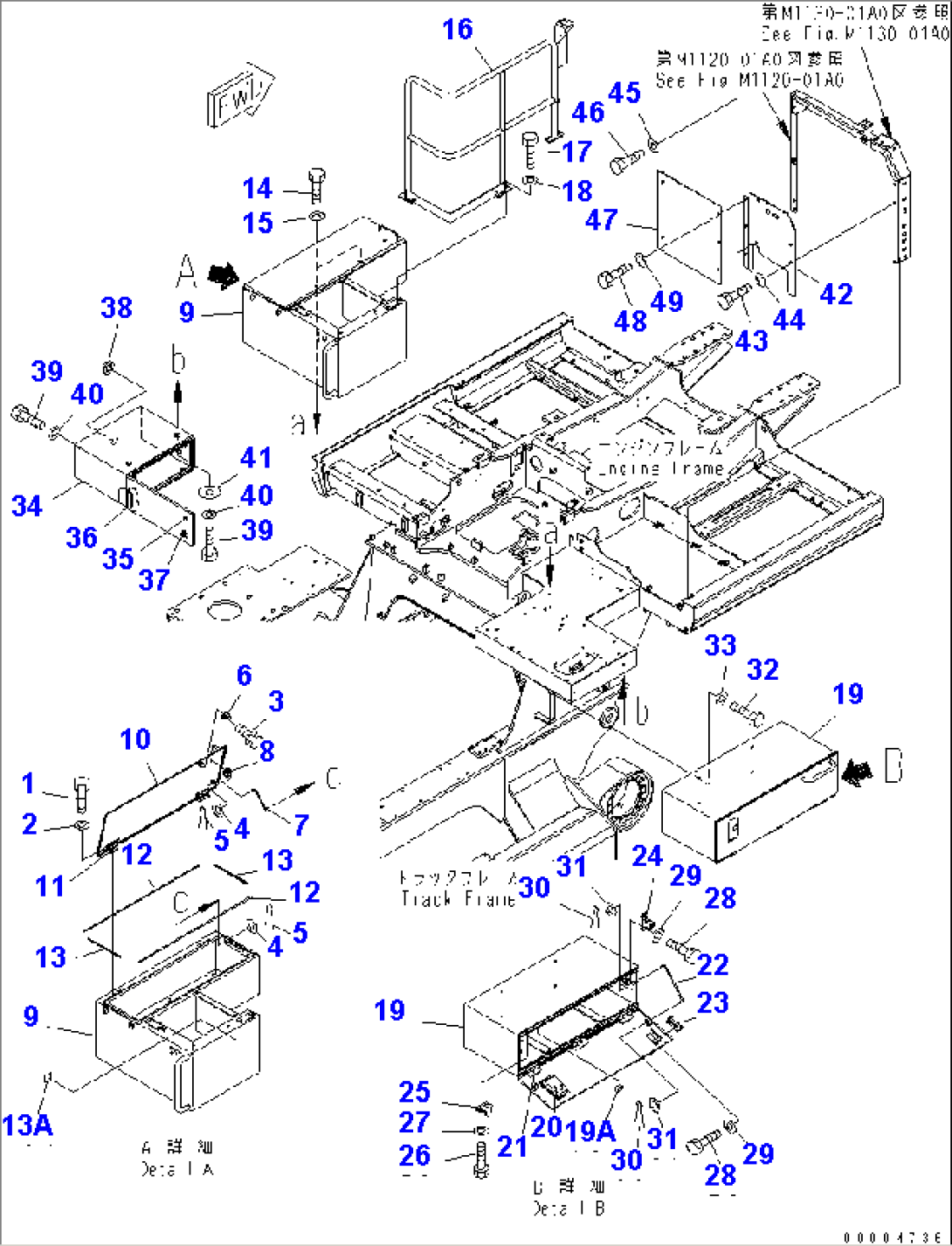

| Item | Part No. | Part Name | Qty | Serial No. |
| 8255-54-4312 | CASE ASS'Y | 1101-1500 | ||
| 1 | 01010-81020 | BOLT | 1101-1500 | |
| 2 | 01643-31032 | WASHER | 1101-1500 | |
| 3 | 01023-10510 | SCREW | 1101-1500 | |
| 4 | 01643-30623 | WASHER | 1101-1500 | |
| 5 | 04050-11612 | PIN | 1101-1500 | |
| 6 | 20R-54-11460 | SPRING | 1101-1500 | |
| 7 | 203-54-56630 | ROD | 1101-1500 | |
| 8 | 205-60-71220 | LOCK ASS'Y | 1101-1500 | |
| 8 | 205-54-76280 | ROTOR ASS'Y | 1101-1500 | |
| 9 | \6\ | CASE | 1101-1500 | |
| 10 | 8255-54-4331 | COVER | 1101-1500 | |
| 11 | 20Y-54-29711 | HINGE (WELDED) | 1101-1500 | |
| 12 | 8255-54-4340 | SEAL | 1101-1500 | |
| 13 | 8255-54-1690 | SEAL | 1101-1500 | |
| 13A | 09842-A0481 | PLATE, CAUTION | 1121-1500 | |
| 14 | 01010-81225 | BOLT | 1101-1500 | |
| 15 | 01643-31232 | WASHER | 1101-1500 | |
| 16 | 8255-54-5730 | HAND RAIL | 1101-1500 | |
| 17 | 01010-81235 | BOLT | 1101-1500 | |
| 18 | 01643-31232 | WASHER | 1101-1500 | |
| 8255-54-4441 | CASE ASS'Y | 1101-1500 | ||
| 19 | \6\ | CASE | 1101-1500 | |
| 19A | 20Y-54-29680 | SHEET | 1101-1500 | |
| 20 | 421-54-11372 | LOCK ASS'Y (WELDED) | 1101-1500 | |
| 21 | 8221-54-1510 | HINGE (WELDED) | 1101-1500 | |
| 22 | 8255-54-5660 | ROD | 1101-1500 | |
| 23 | 8255-54-1650 | BRACKET | 1115-1500 | |
| 23 | 8255-54-1650 | BRACKET | 1101-1114 | |
| 24 | 20Y-54-12920 | CLAMP | 1101-1500 | |
| 25 | 20Y-54-29651 | BRACKET | 1101-1500 | |
| 26 | 01010-81230 | BOLT | 1101-1500 | |
| 27 | 01643-31232 | WASHER | 1101-1500 | |
| 28 | 01010-81020 | BOLT | 1101-1500 | |
| 29 | 01643-31032 | WASHER | 1101-1500 | |
| 30 | 04050-13020 | PIN | 1101-1500 | |
| 31 | 01643-31032 | WASHER | 1115-1500 | |
| 31 | 01641-20405 | WASHER | 1101-1114 | |
| 32 | 01010-81235 | BOLT | 1101-1500 | |
| 33 | 175-54-34170 | WASHER | 1199-1500 | |
| 33 | 01643-31232 | WASHER | 1101-1198 | |
| 34 | 8255-54-5493 | BOX | 1101-1500 | |
| 35 | 205-60-71220 | LOCK ASS'Y | 1101-1500 | |
| 35 | 205-54-76280 | ROTOR ASS'Y | 1101-1500 | |
| 36 | 20Y-54-29711 | HINGE (WELDED) | 1101-1500 | |
| 37 | 8255-06-4390 | LOCK | 1101-1500 | |
| 38 | 09415-03614 | CAP | 1101-1500 | |
| 39 | 01010-81235 | BOLT | 1101-1500 | |
| 40 | 01643-31232 | WASHER | 1101-1500 | |
| 41 | 175-54-34170 | WASHER | 1101-1500 | |
| 42 | 8255-54-4292 | COVER | 1101-1500 | |
| 43 | 01010-81230 | BOLT | 1101-1500 | |
| 44 | 01643-31232 | WASHER | 1101-1500 | |
| 45 | 175-54-34170 | WASHER | 1101-1500 | |
| 46 | 01010-81230 | BOLT | 1101-1500 | |
| 47 | 8255-54-5471 | COVER | 1101-1500 | |
| 48 | 01010-81230 | BOLT | 1101-1500 | |
| 49 | 01643-31232 | WASHER | 1101-1500 |
