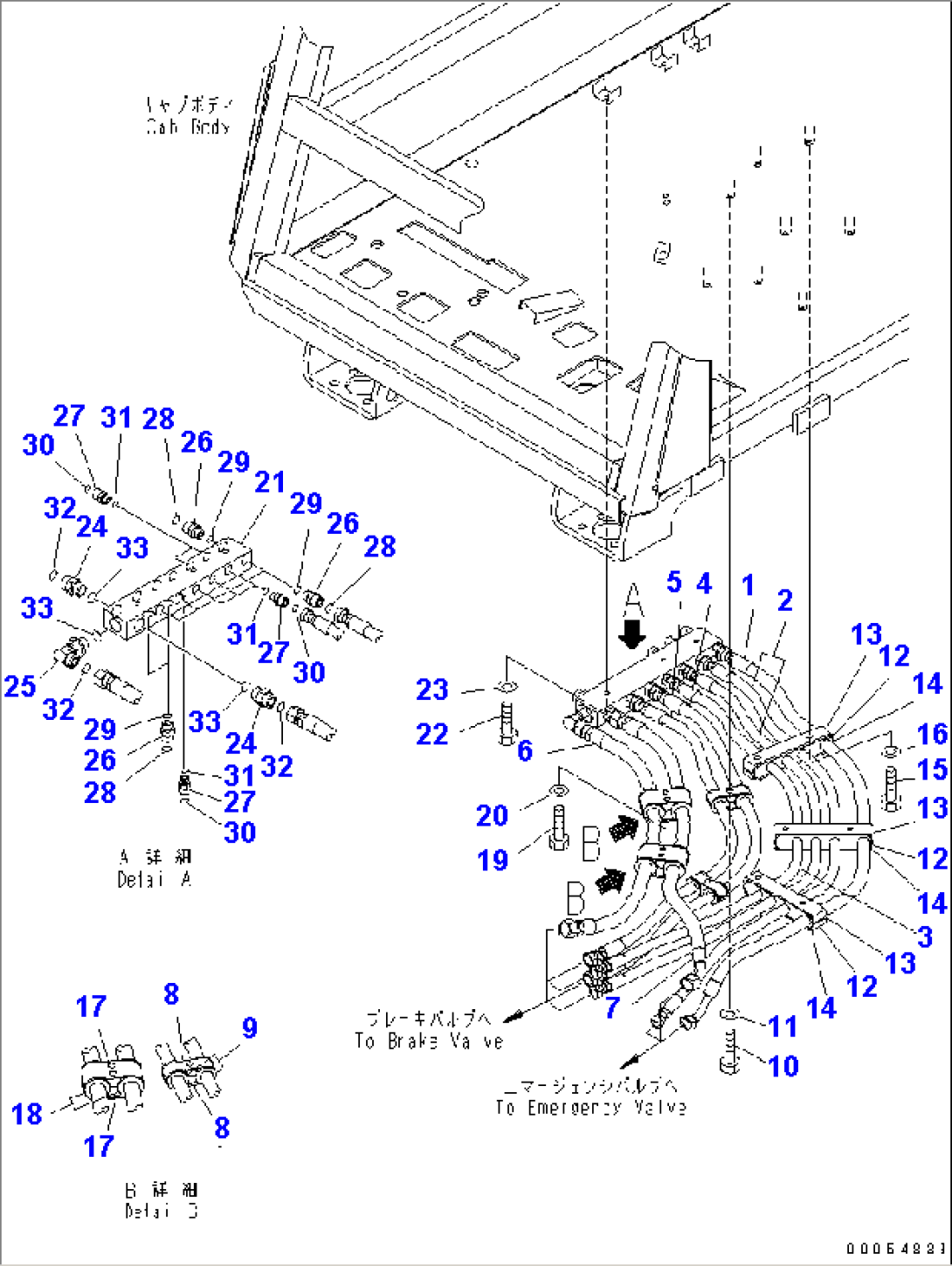

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02767-00618 | HOSE | A10001- | |
| 2 | 02765-00517 | HOSE | A10001- | |
| 3 | 02765-00516 | HOSE | A10001- | |
| 4 | 02765-00614 | HOSE | A10001- | |
| 5 | 02765-00613 | HOSE | A10001- | |
| 6 | 561-43-83921 | HOSE | A10001- | |
| 7 | 561-43-83960 | HOSE | A10001- | |
| 8 | 07094-30620 | CLAMP | A10001- | |
| 9 | 07095-00628 | CUSHION | A10001- | |
| 10 | 01010-81270 | BOLT | A10001- | |
| 11 | 01643-31232 | WASHER | A10001- | |
| 12 | 561-43-84980 | PLATE | A10001- | |
| 13 | 561-43-84990 | PLATE | A10001- | |
| 14 | 561-43-83232 | CLAMP | A10001- | |
| 15 | 01010-81285 | BOLT | A10001- | |
| 16 | 01643-31232 | WASHER | A10001- | |
| 17 | 07094-31024 | CLAMP | A10001- | |
| 18 | 07095-01034 | CUSHION | A10001- | |
| 19 | 01010-81280 | BOLT | A10001- | |
| 20 | 01643-31232 | WASHER | A10001- | |
| 21 | 561-43-83512 | BLOCK | A10001- | |
| 22 | 01010-81080 | BOLT | A10001- | |
| 23 | 01643-31032 | WASHER | A10001- | |
| 24 | 207-62-72110 | UNION | A10001- | |
| 25 | 21W-62-42640 | ELBOW | A10001- | |
| 26 | 02781-00628 | UNION | A10001- | |
| 27 | 02781-00516 | UNION | A10001- | |
| 28 | 02896-21018 | O-RING | A10001- | |
| 29 | 07002-22434 | O-RING | A10001- | |
| 30 | 02896-21015 | O-RING | A10001- | |
| 31 | 07002-22034 | O-RING | A10001- | |
| 32 | 207-62-64740 | O-RING | A10001- | |
| 33 | 07002-23334 | O-RING | A10001- |
