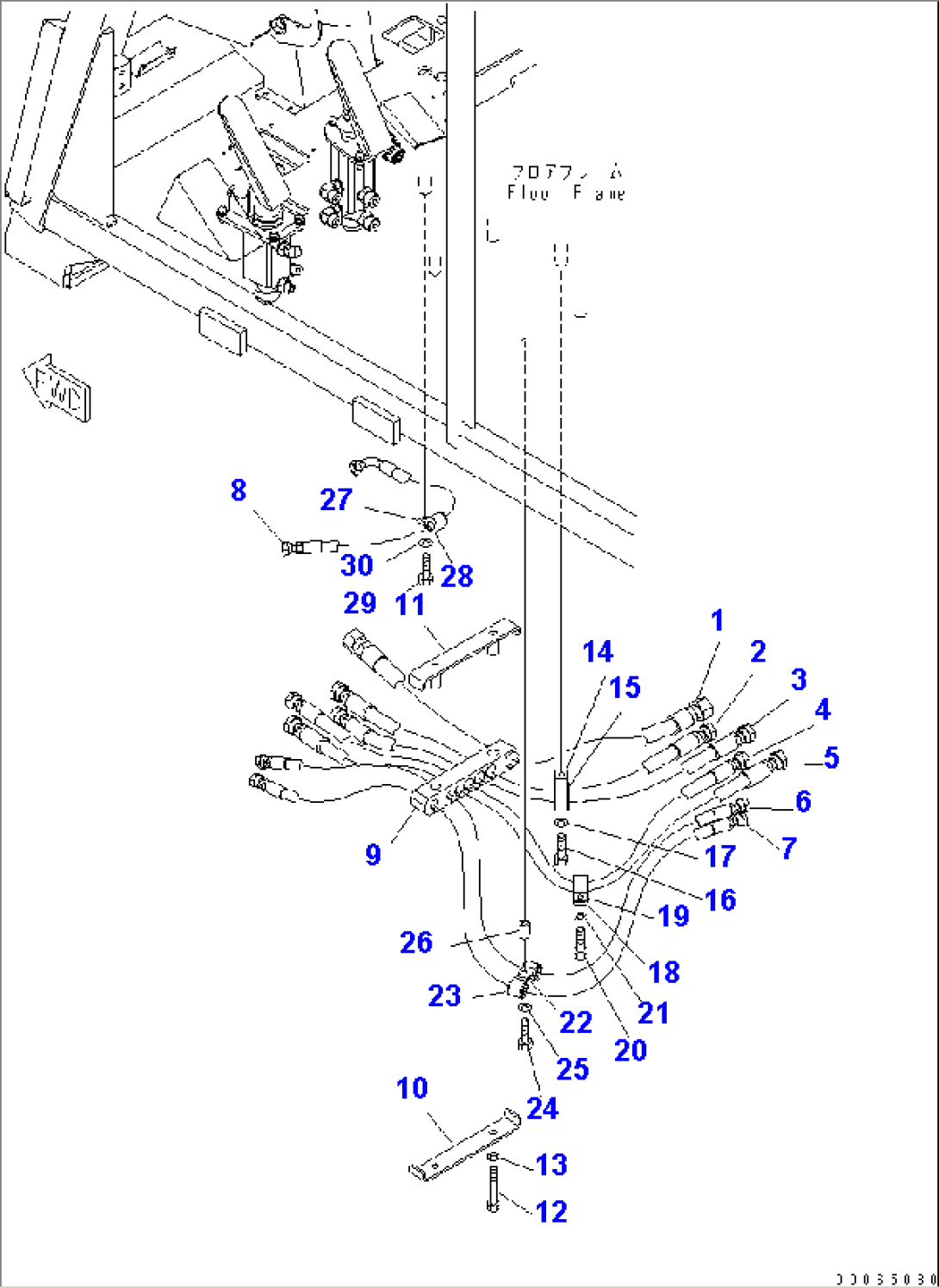

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14S-62-22190 | HOSE, 780MM | 7001- | |
| 2 | 566-43-82710 | HOSE | 7009- | |
| 2 | 02765-006A8 | HOSE | 7001-7008 | |
| 3 | 566-43-82720 | HOSE | 7009- | |
| 3 | 02765-006A9 | HOSE | 7001-7008 | |
| 4 | 566-43-82730 | HOSE | 7009- | |
| 4 | 02765-00510 | HOSE | 7001-7008 | |
| 5 | 566-43-82740 | HOSE | 7009- | |
| 5 | 02765-00511 | HOSE | 7001-7008 | |
| 6 | 566-43-82750 | HOSE | 7009- | |
| 6 | 02765-00410 | HOSE | 7001-7008 | |
| 7 | 566-43-82760 | HOSE | 7009- | |
| 8 | 02766-004A6 | HOSE | 7001- | |
| 9 | 566-43-83610 | CLAMP | 7001- | |
| 10 | 561-43-83211 | PLATE | 7001- | |
| 11 | 561-43-83221 | PLATE | 7001- | |
| 12 | 01010-81285 | BOLT | 7440- | |
| 12 | 01010-81275 | BOLT | 7001-7439 | |
| 13 | 01643-31232 | WASHER | 7001- | |
| 14 | 196-911-3310 | CLIP | 7001- | |
| 15 | 07095-20627 | CUSHION | 7001- | |
| 16 | 01010-81220 | BOLT | 7001- | |
| 17 | 01643-31232 | WASHER | 7001- | |
| 18 | 196-911-3310 | CLIP | 7001- | |
| 19 | 07095-20625 | CUSHION | 7001- | |
| 20 | 01010-81220 | BOLT | 7001- | |
| 21 | 01643-31232 | WASHER | 7001- | |
| 22 | 04434-52712 | CLIP | 7001- | |
| 23 | 07095-20420 | CUSHION | 7001- | |
| 24 | 01010-81265 | BOLT | 7001- | |
| 25 | 01643-31232 | WASHER | 7001- | |
| 26 | 427-03-10370 | SPACER | 7001- | |
| 27 | 04434-52712 | CLIP | 7001- | |
| 28 | 07095-20420 | CUSHION | 7001- | |
| 29 | 01010-81220 | BOLT | 7001- | |
| 30 | 01643-31232 | WASHER | 7001- |
