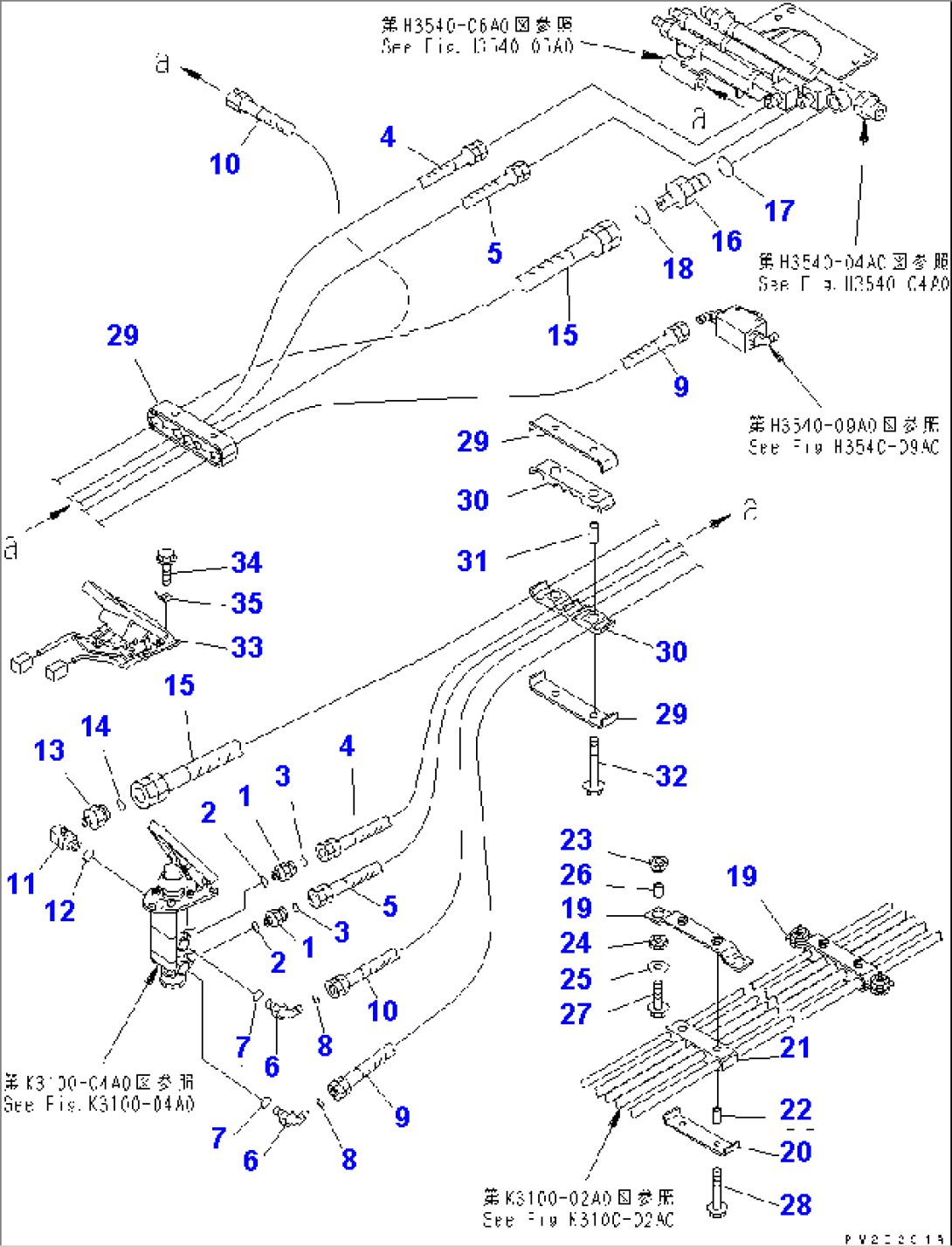

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-43-17370 | NIPPLE | 1001- | |
| 2 | 07002-22034 | O-RING | 1001- | |
| 3 | 02896-21018 | O-RING | 1001- | |
| 4 | 56B-43-17160 | HOSE | 1001- | |
| 5 | 02765-00616 | HOSE | 1001- | |
| 6 | 21W-62-42690 | ELBOW | 1001- | |
| 7 | 07002-22034 | O-RING | 1001- | |
| 8 | 02896-21015 | O-RING | 1001- | |
| 9 | 02765-00518 | HOSE | 1001- | |
| 10 | 56B-43-17740 | HOSE | 1001- | |
| 11 | 421-43-22430 | ELBOW | 1001- | |
| 12 | 07002-22434 | O-RING | 1001- | |
| 13 | 56B-43-17240 | NIPPLE | 1001- | |
| 14 | 207-62-64740 | O-RING | 1001- | |
| 15 | 56B-43-17420 | HOSE | 1001- | |
| 16 | 20U-62-41720 | NIPPLE | 1001- | |
| 17 | 07002-23334 | O-RING | 1001- | |
| 18 | 207-62-64740 | O-RING | 1001- | |
| 19 | 56B-61-13810 | BRACKET | 1001- | |
| 20 | 56B-61-13820 | PLATE | 1001- | |
| 21 | 56B-61-13830 | RUBBER | 1001- | |
| 22 | 56B-40-13420 | SPACER | 1001- | |
| 23 | 56B-40-13440 | CUSHION | 1001- | |
| 24 | 56B-40-13450 | CUSHION | 1001- | |
| 25 | 415-64-13120 | WASHER | 1001- | |
| 26 | 421-62-18560 | SPACER | 1001- | |
| 27 | 01435-01045 | BOLT | 1001- | |
| 28 | 01435-01055 | BOLT | 1001- | |
| 29 | 56B-61-11712 | PLATE | 1001- | |
| 30 | 56B-43-17752 | CLAMP | 1001- | |
| 31 | 154-61-21650 | SPACER | 1001- | |
| 32 | 01435-01275 | BOLT | 1001- | |
| 33 | (569-44-61310) | PEDAL ASS'Y | 1001- | |
| 34 | 01435-00820 | BOLT | 1001- | |
| 35 | 569-44-61330 | PLATE | 1001- |
