| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-86470 | PLATE | A10001- | |
| 2 | 561-06-86480 | SHEET | A10001- | |
| 3 | 01640-20408 | WASHER | A10001- | |
| 4 | 01580-10403 | NUT | A10001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n a10001 up
- Operator's compartment and control system
- Floor (connector plug)
Поиск по каталогу

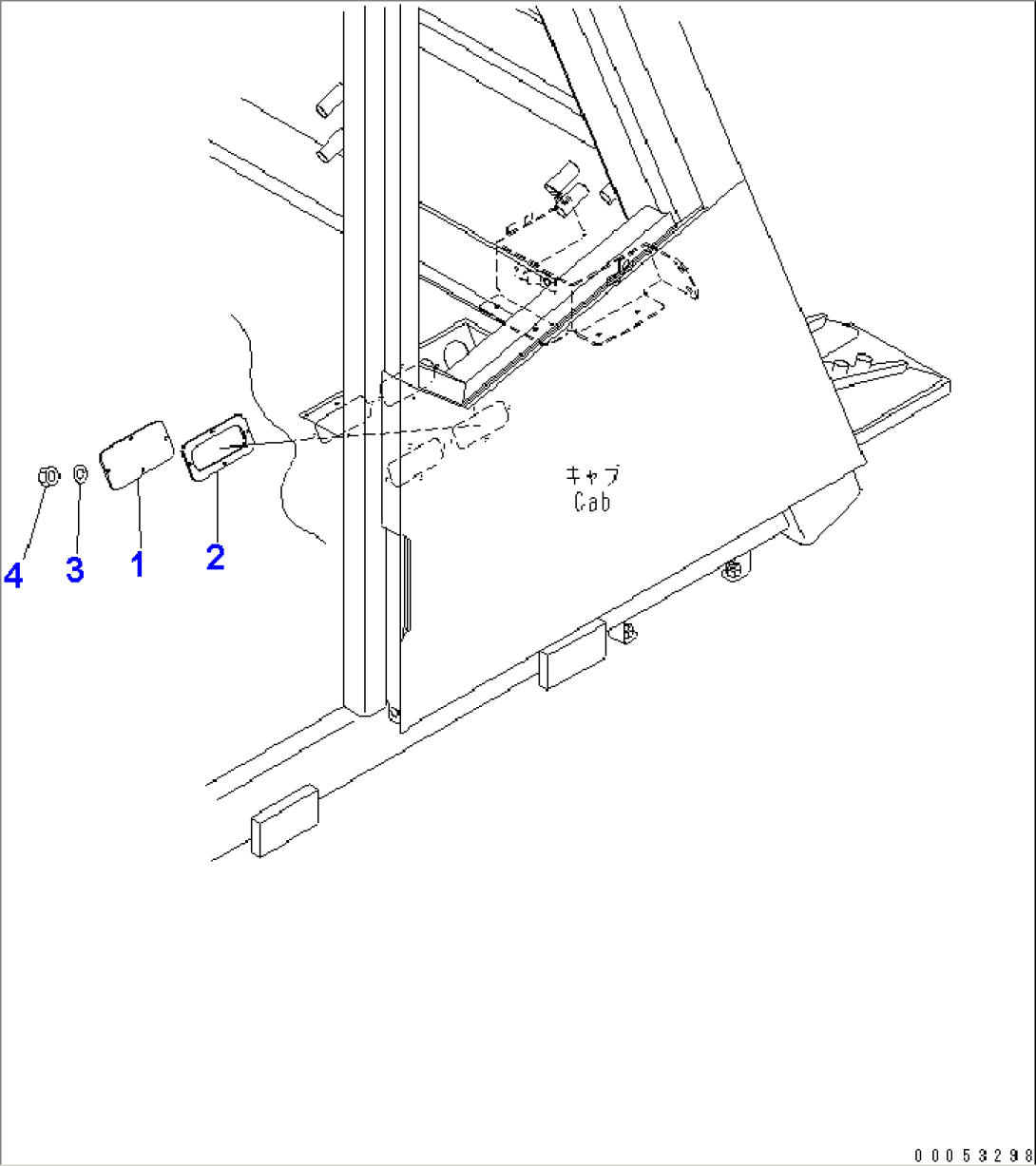

FLOOR (CONNECTOR PLUG)
