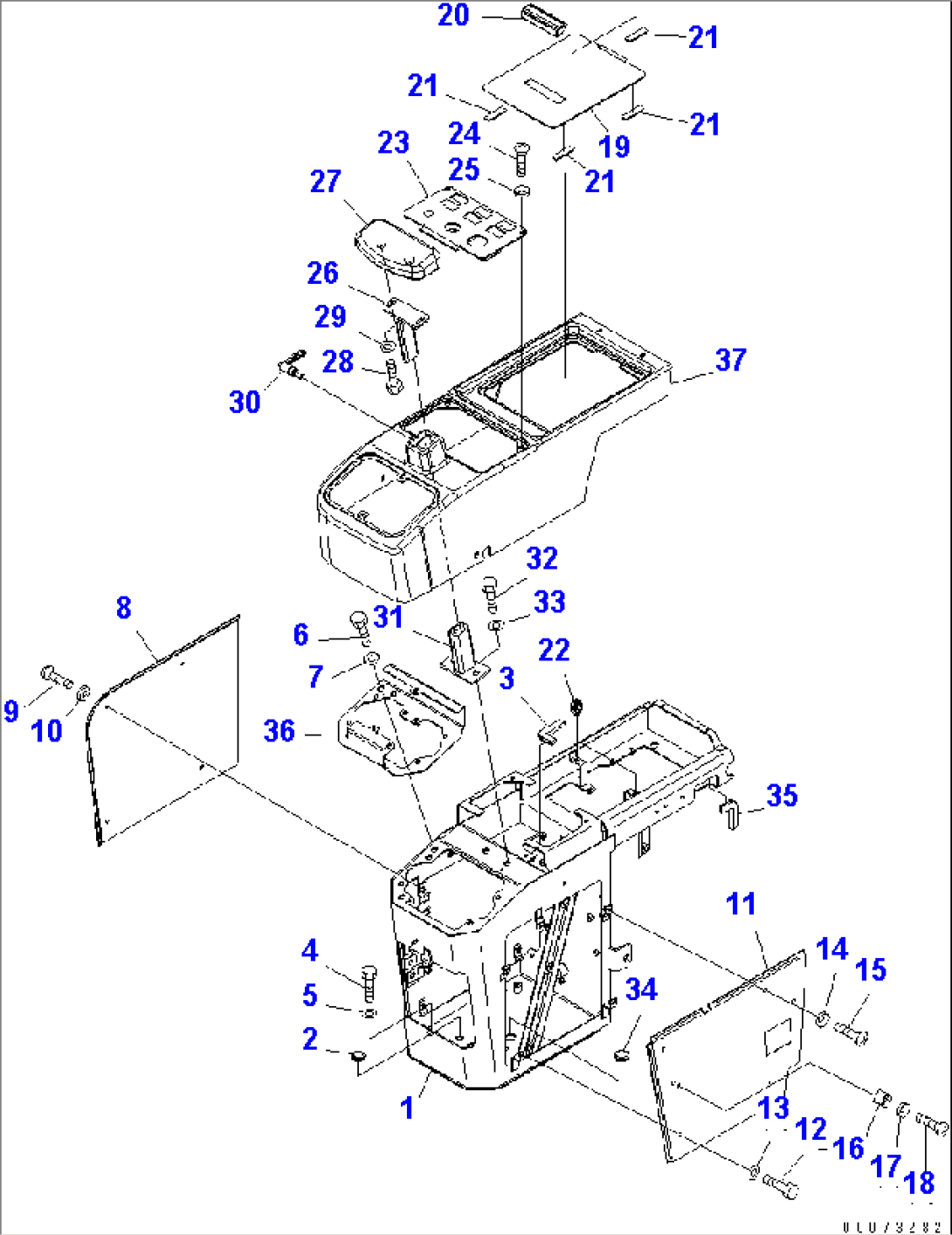

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-54-32625 | BOX | A89001- | |
| 2 | 09415-01008 | CAP | A89001- | |
| 3 | 421-54-22520 | FINISHER | A89001- | |
| 4 | 01010-81225 | BOLT | A89001- | |
| 5 | 01643-31232 | WASHER | A89001- | |
| 6 | 01010-81020 | BOLT | A89001- | |
| 7 | 01643-31032 | WASHER | A89001- | |
| 8 | 419-54-32672 | PLATE | A89001- | |
| 9 | 01225-70616 | SCREW | A89001- | |
| 10 | 418-926-3490 | WASHER | A89001- | |
| 11 | 418-54-32424 | PLATE | A89001- | |
| 12 | 01010-80616 | BOLT | A89001- | |
| 13 | 01643-30623 | WASHER | A89001- | |
| 14 | 418-926-3490 | WASHER | A89001- | |
| 15 | 01225-70616 | SCREW | A89001- | |
| 16 | 418-43-38311 | PLATE | A89001- | |
| 17 | 418-926-3490 | WASHER | A89001- | |
| 18 | 01225-70616 | SCREW | A89001- | |
| 19 | 418-54-32774 | COVER | A89001- | |
| 20 | 421-54-22750 | HANDLE | A89001- | |
| 21 | 421-09-12780 | CUSHION | A89001- | |
| 22 | 23S-55-51530 | CLIP | A89001- | |
| 23 | 418-T80-3822 | COVER | A89001- | |
| 24 | 01225-70616 | SCREW | A89001- | |
| 25 | 418-926-3490 | WASHER | A89001- | |
| 26 | 418-43-31220 | BRACKET | A89001- | |
| 27 | 421-43-31520 | REST | A89001- | |
| 28 | 01010-80616 | BOLT | A89001- | |
| 29 | 01643-30623 | WASHER | A89001- | |
| 30 | 421-43-31551 | LEVER | A89001- | |
| 31 | 418-54-32241 | BRACKET | A89001- | |
| 32 | 01010-81020 | BOLT | A89001- | |
| 33 | 01643-31032 | WASHER | A89001- | |
| 34 | 09415-01610 | CAP | A89001- | |
| 35 | 421-54-22520 | FINISHER | A89001- | |
| 36 | PLATE,(SEE FIG. K0210-29A1) | A89001- | ||
| 37 | CONSOLE,(SEE FIG. K0210-30A0) | A89001- |
