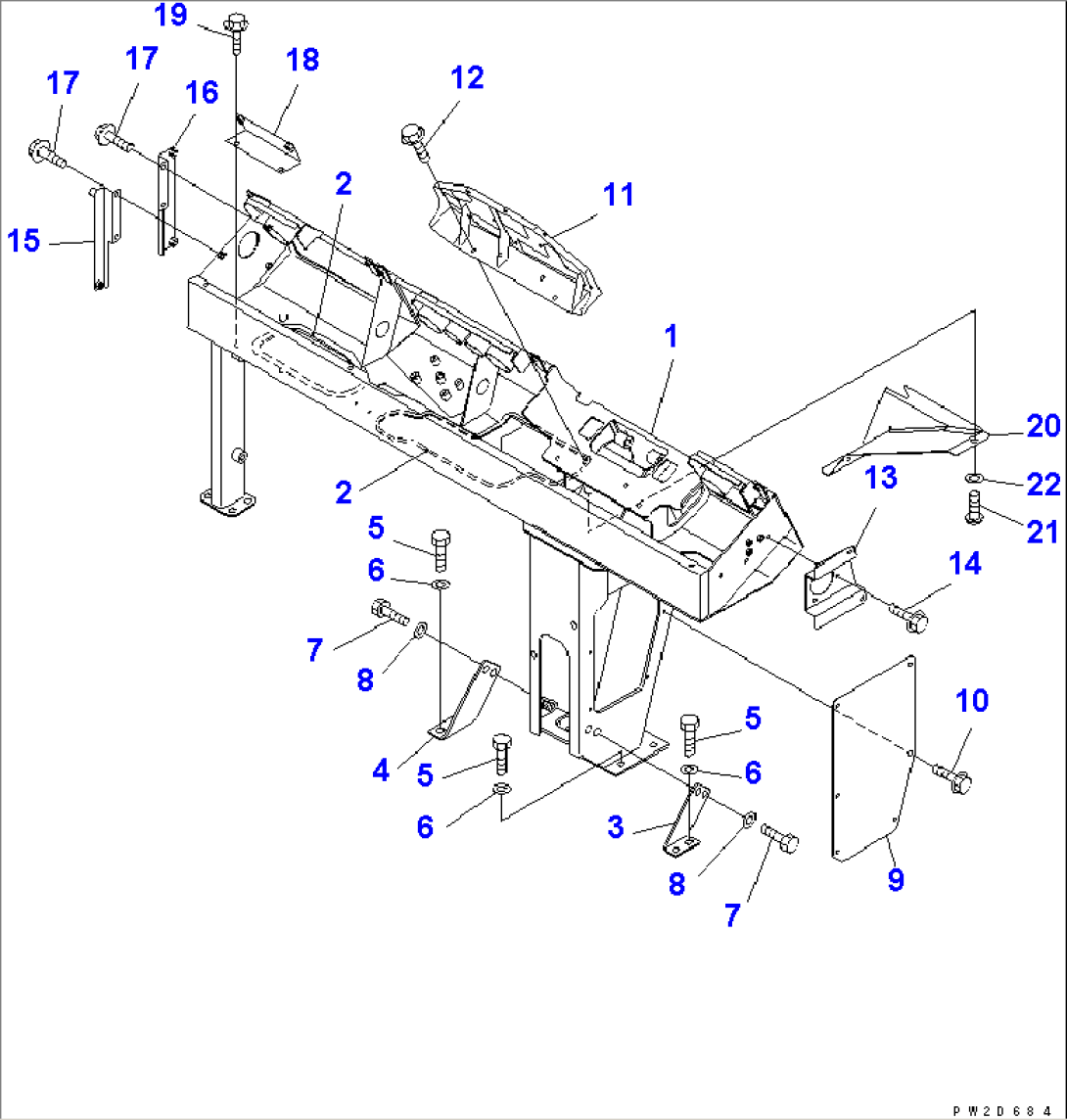

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-85410 | DASHBOARD ASS'Y | 7001- | |
| 56B-54-15180 | SEAL | 7001- | ||
| \6\ | DASHBOARD | 7001- | ||
| \6\ | SUPPORT | 7001- | ||
| \6\ | SUPPORT | 7001- | ||
| 56B-54-15451 | SEAL | 7001- | ||
| 56B-54-15551 | SEAL | 7001- | ||
| 2 | 22T-55-11970 | FINISHER | 7001- | |
| 3 | 569-54-85471 | BRACKET,L.H. | 7001- | |
| 4 | 569-54-85491 | BRACKET,R.H. | 7001- | |
| 5 | 01010-81020 | BOLT | 7001- | |
| 6 | 01643-31032 | WASHER | 7001- | |
| 7 | 01010-81025 | BOLT | 7001- | |
| 8 | 01643-31032 | WASHER | 7001- | |
| 9 | 569-54-85460 | COVER | 7001- | |
| 10 | 01435-00612 | BOLT | 7001- | |
| 11 | 56B-54-15560 | BRACKET | 7001- | |
| 12 | 01435-00612 | BOLT | 7001- | |
| 13 | 569-54-85511 | BRACKET | 7001- | |
| 14 | 01435-00612 | BOLT | 7001- | |
| 15 | 56B-54-15521 | BRACKET | 7001- | |
| 16 | 56B-54-15590 | BRACKET | 7001- | |
| 17 | 01435-00612 | BOLT | 7001- | |
| 18 | 56B-54-15531 | BRACKET | 7001- | |
| 19 | 01435-00612 | BOLT | 7001- | |
| 20 | 56B-54-15581 | COVER | 7001- | |
| 21 | 01245-00816 | SCREW | 7001- | |
| 22 | 01642-40810 | WASHER | 7001- |
