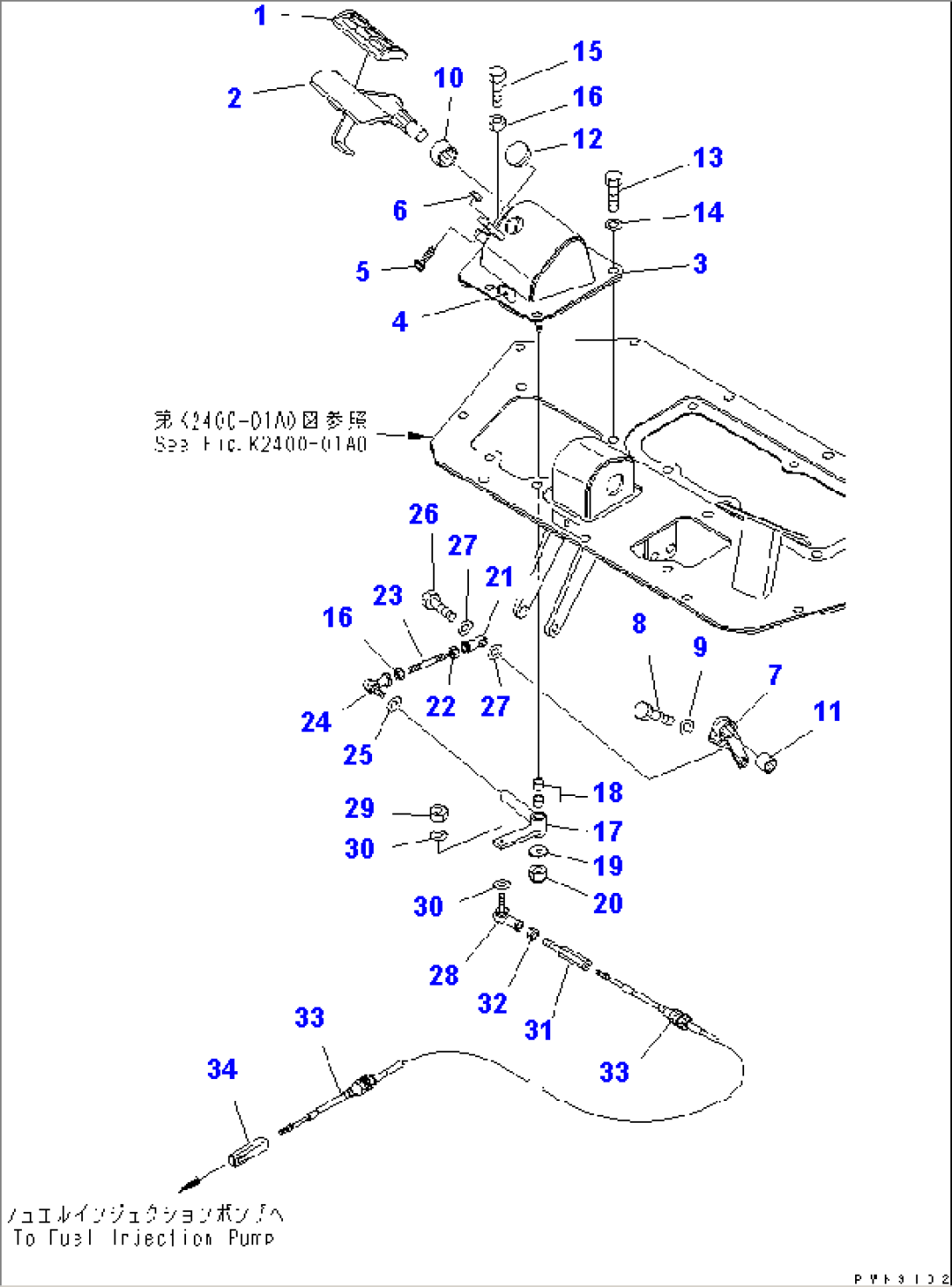

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-43-13760 | CAP¤ PEDAL | B3001- | |
| 2 | 134-43-62431 | PEDAL | B3001- | |
| 3 | 134-43-62421 | BRACKET | B3001- | |
| 4 | 14X-43-12380 | SHEET | B3001- | |
| 5 | 09311-41237 | BUMPER | B3001- | |
| 6 | 01580-11210 | NUT | B3001- | |
| 7 | 124-43-55160 | LEVER | B3001- | |
| 8 | 01010-80830 | BOLT | B3001- | |
| 9 | 01643-30823 | WASHER | B3001- | |
| 10 | 06124-03020 | BEARING | B3001- | |
| 11 | 06124-02020 | BEARING | B3001- | |
| 12 | 09415-02512 | CAP | B3001- | |
| 13 | 01010-51230 | BOLT | B3001- | |
| 14 | 01643-31232 | WASHER | B3001- | |
| 15 | 01016-50830 | BOLT | B3001- | |
| 16 | 01580-10806 | NUT | B3001- | |
| 17 | 14X-43-13722 | LEVER | B3001- | |
| 18 | 09350-01415 | BUSHING | B3001- | |
| 19 | 113-43-23230 | WASHER | B3001- | |
| 20 | 01598-00809 | NUT | B3001- | |
| 21 | 04250-80847 | END | B3001- | |
| 22 | 01580-10806 | NUT | B3001- | |
| 23 | 04245-40805 | ROD | B3001- | |
| 24 | 04256-40817 | JOINT | B3001- | |
| 25 | 01643-30823 | WASHER | B3001- | |
| 26 | 01010-80830 | BOLT | B3001- | |
| 27 | 04254-10823 | SPACER | B3001- | |
| 28 | 04256-50615 | JOINT | B3001- | |
| 29 | 01580-10605 | NUT | B3001- | |
| 30 | 01641-20608 | WASHER | B3001- | |
| 31 | 14Z-43-12890 | ROD | B3001- | |
| 32 | 01508-40603 | NUT | B3001- | |
| 33 | 104-43-44970 | CABLE | B3001- | |
| 34 | 14X-43-13790 | JOINT | B3001- |
