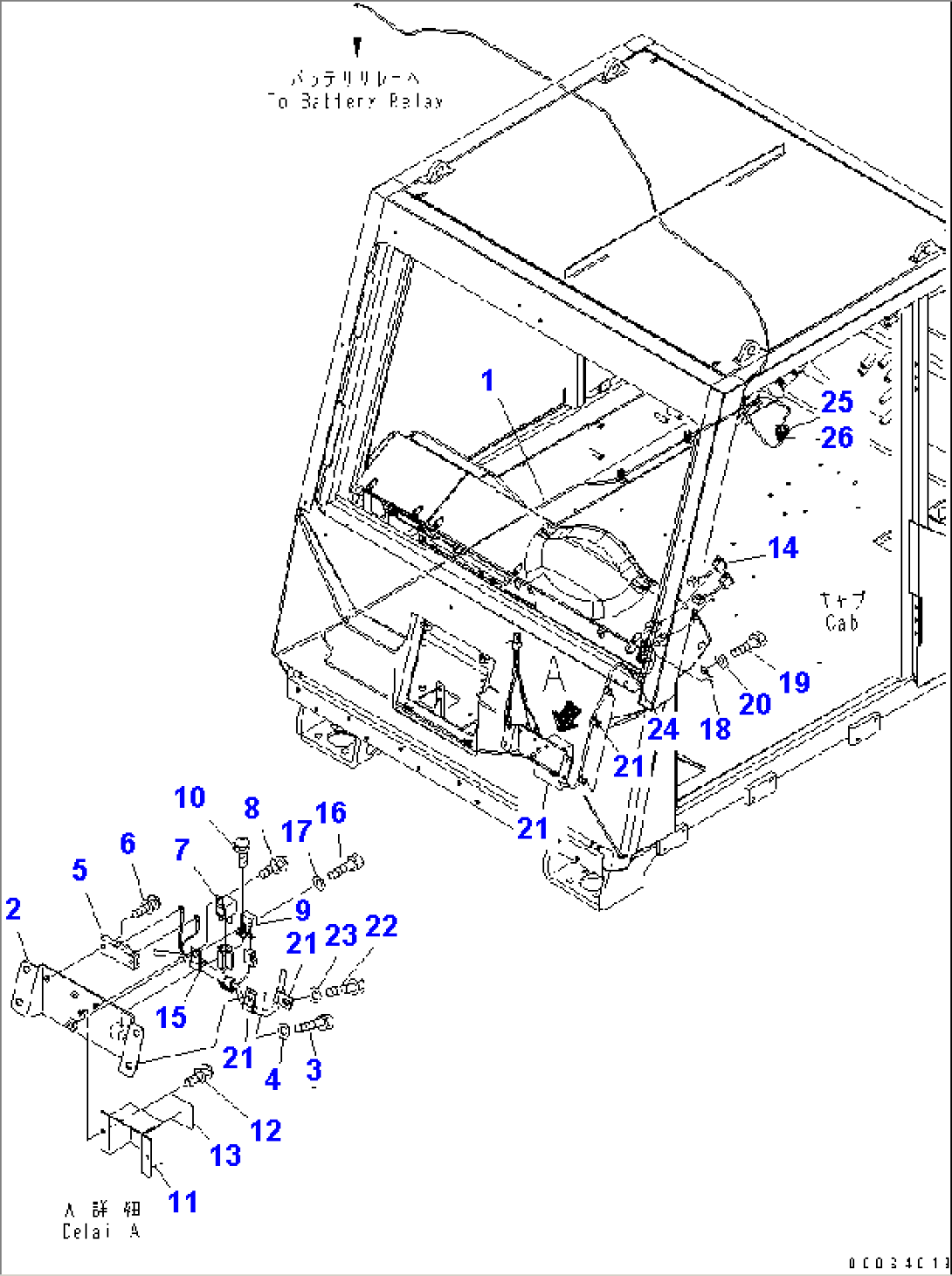

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-95-82220 | WIRING HARNESS | A10001- | |
| 2 | 561-95-82230 | BRACKET | A10001- | |
| 3 | 01010-81020 | BOLT | A10001- | |
| 4 | 01643-31032 | WASHER | A10001- | |
| 5 | 566-06-13790 | BLOCK | A10001- | |
| 6 | 01023-20616 | SCREW | A10001- | |
| 7 | 569-06-65610 | RELAY | A10001- | |
| 8 | 01023-20516 | SCREW | A10001- | |
| 9 | 566-06-6A220 | FUSE UNIT | A10001- | |
| 10 | 01023-20616 | SCREW | A10001- | |
| 11 | 561-95-82250 | COVER | A10001- | |
| 12 | 01023-20616 | SCREW | A10001- | |
| 13 | 569-95-82340 | PLATE | A10001- | |
| 14 | 23W-05-15850 | SWITCH ASS'Y | A10001- | |
| 15 | 22M-06-12140 | CLIP | A10001- | |
| 16 | 01010-80616 | BOLT | A10001- | |
| 17 | 01643-30623 | WASHER | A10001- | |
| 18 | 04434-51010 | CLIP | A10001- | |
| 19 | 01010-81020 | BOLT | A10001- | |
| 20 | 01643-31032 | WASHER | A10001- | |
| 21 | 04434-50610 | CLIP | A10001- | |
| 22 | 01010-81016 | BOLT | A10001- | |
| 23 | 01643-31032 | WASHER | A10001- | |
| 24 | 08059-00310 | CLIP | A10001- | |
| 25 | 08037-11425 | GROMMET | A10001- | |
| 26 | 08034-20519 | BAND | A10001- |
