| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-63441 | WIRING HARNESS | 4001- | |
| 2 | 08053-15012 | CLIP | 4001- | |
| 3 | 01010-81016 | BOLT | 4001- | |
| 4 | 01643-31032 | WASHER | 4001- | |
| 5 | 08036-10814 | CLIP | 4001- | |
| 6 | 566-06-12540 | SWITCH | 4001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 5 s/n 4001 up
- Operator's compartment and control system
- Floor (dump control) (2/3)
Поиск по каталогу

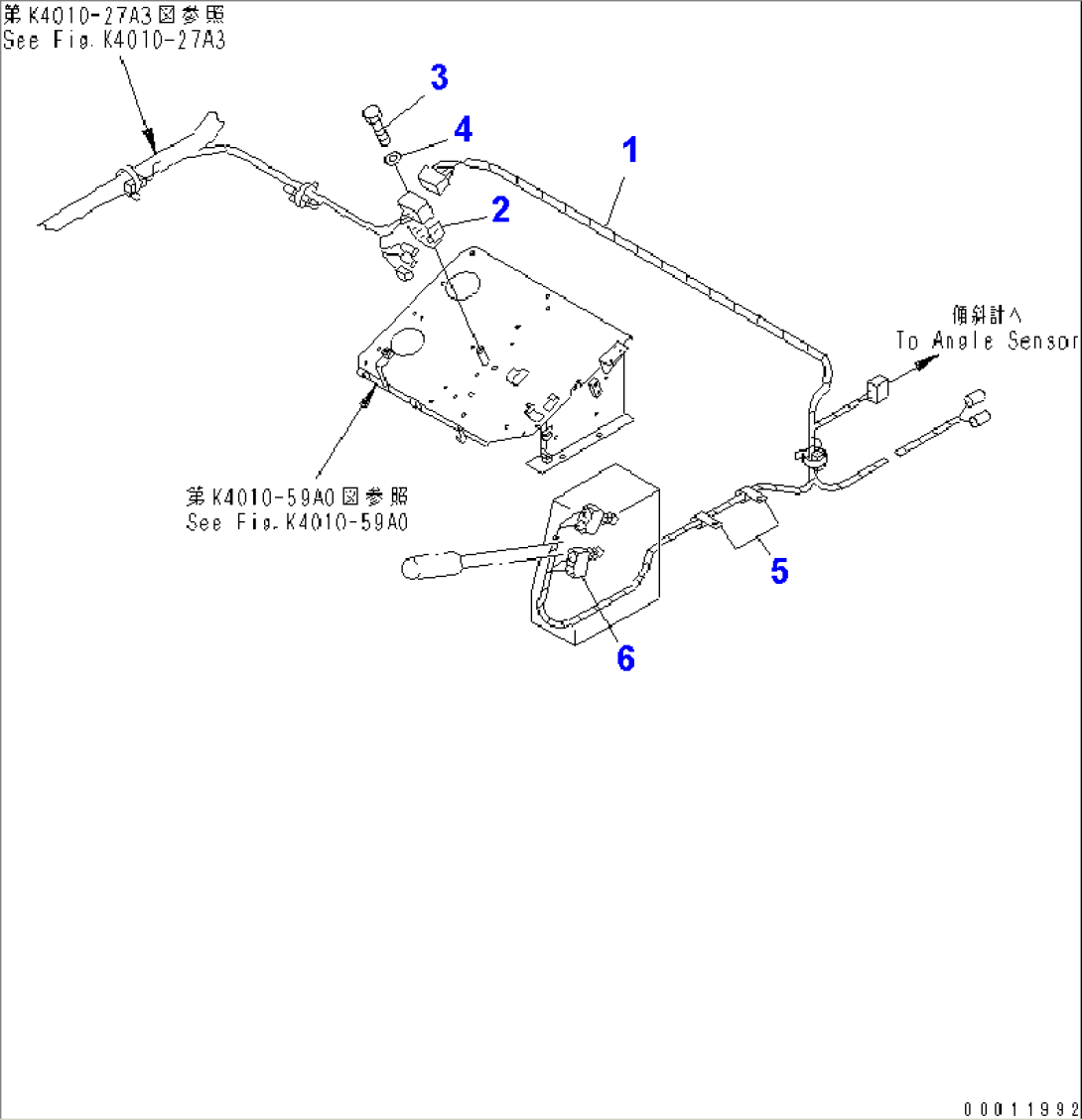

FLOOR (DUMP CONTROL) (2/3)
