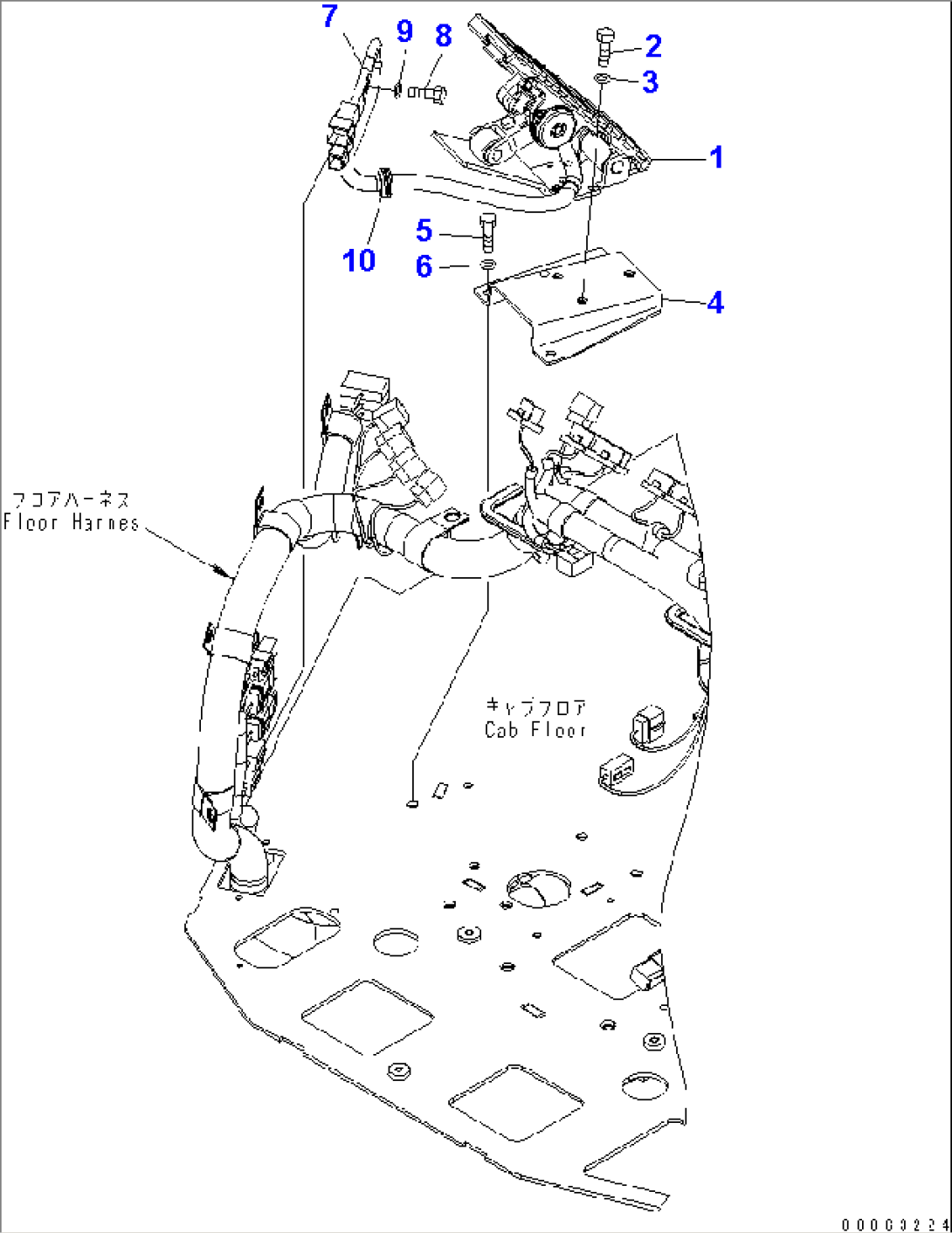

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-07021) | PEDAL ASS'Y,SEE FIG. Y1690-01A0 | 70557- | |
| 1 | (702-16-07020) | PEDAL ASS'Y,SEE FIG. Y1690-01A0 | 70001-70556 | |
| 2 | 01010-80820 | BOLT | 70001- | |
| 3 | 01643-30823 | WASHER | 70001- | |
| 4 | 418-43-46110 | BRACKET | 70001- | |
| 5 | 01010-80820 | BOLT | 70001- | |
| 6 | 01643-30823 | WASHER | 70001- | |
| 7 | 04434-51212 | CLIP | 70001- | |
| 8 | 01010-81016 | BOLT | 70001- | |
| 9 | 01643-31032 | WASHER | 70001- | |
| 10 | 22W-22-17460 | GROMMET | 70001- |
